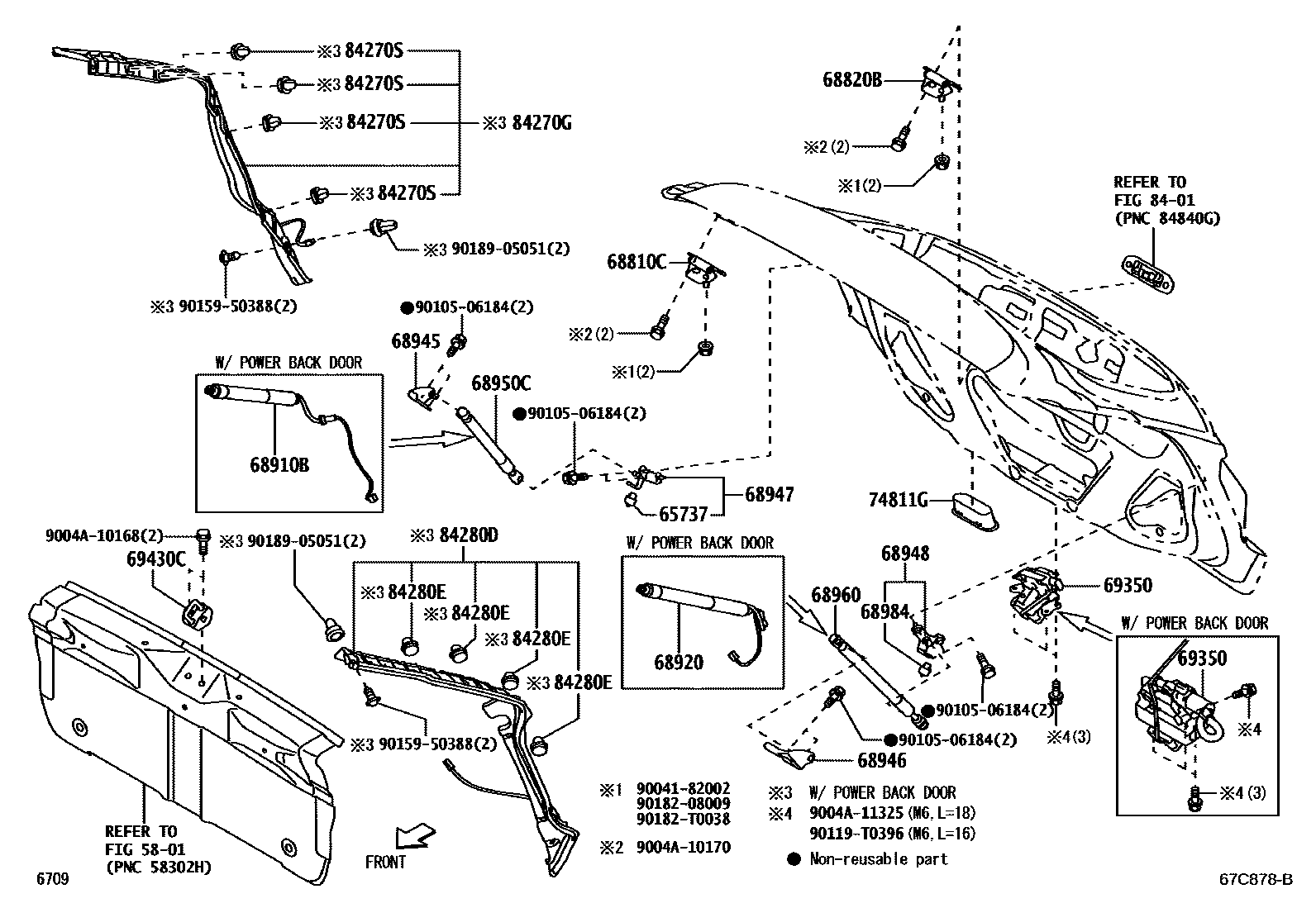

BACK DOOR LOCK & HANDLE

0001 1 0004 1

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

65737STOP, TAIL GATE

main68984-42010iNGC200,NYC200..IDNP,THP202306

68810CHINGE ASSY, BACK DOOR, RH

main68810-0K070iNYC200..TH202310

main68810-0K100iNGC200,NYC200..IDNP202306

main68810-BZ050iNGC200,NYC200..MA202406

main68810-BZ070iNGC200..TAIW202310

TYPE A

main68810-BZ080iNGC200..TAIW202310

TYPE B

main68810-BZ090iNGC200..TAIW202310

TYPE C

68820BHINGE ASSY, BACK DOOR, LH

main68810-0K070iNYC200..TH202310

main68810-0K100iNGC200,NYC200..IDNP202306

main68810-BZ050iNGC200,NYC200..MA202406

main68810-BZ070iNGC200..TAIW202310

TYPE A

main68810-BZ080iNGC200..TAIW202310

TYPE B

main68810-BZ090iNGC200..TAIW202310

TYPE C

68910BUNIT ASSY, POWER BACK DOOR, RH

main68910-B1010iNGC200,NYC200..(IDNP,THP)..H202306

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-B1010iNGC200,NYC200..(IDNP,THP)..H202306

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-BZ050iNGC200..(L,M)..TAIW202310

main68945-BZ070iNGC200,NYC200..MA202406

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-BZ020iNGC200,NYC200..(IDNP,THP)..(L,M); NGC200..LHD..H..GEN202306

VIETNAM

main68946-BZ030iNGC200..H..TAIW202310

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-BZ020iNGC200..TAIW202310

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-BZ020iNGC200,NYC200..IDNP,THP202306

68950CSTAY ASSY, BACK DOOR, RH

main68950-BZ400iNGC200,NYC200..(IDNP,THP)..(L,M); NGC200..LHD..H..GEN202306

VIETNAM

68960STAY ASSY, BACK DOOR, LH

main68950-BZ400iNGC200,NYC200..(IDNP,THP)..(L,M); NGC200..LHD..H..GEN202306

VIETNAM

68984STOPPER, BACK DOOR STAY

main68984-42010iNGC200..TAIW202310

69350LOCK ASSY, BACK DOOR

main69350-0A070iNGC200,NYC200..(IDNP,THP)..H202306

main69350-0K190iNGC200,NYC200..(IDNP,THP)..(L,M); NGC200..LHD..H..GEN202306

VIETNAM

main69350-42060iNGC200..H..TAIW202310

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B0020iNGC200..TAIW202310

74811GHANDLE, DOOR PULL

main69285-0D040iNYC200..TH202310

main74811-BZ030iNGC200,NYC200..MA202406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-B1010iNGC200,NYC200..MA202406

84270SCLIP(POWER BACK DOOR SENSOR, RH)

main61617-42040×4iNGC200,NYC200..(IDNP,THP)..H; NGC200..LHD..H..GEN202306

VIETNAM

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-B1010iNGC200,NYC200..(IDNP,THP)..H; NGC200..LHD..H..GEN202306

VIETNAM

84280ECLIP (FOR POWER BACK DOOR SENSOR, LH)

main61617-42040×4iNGC200,NYC200..(IDNP,THP)..H; NGC200..LHD..H..GEN202306

VIETNAM

9004182002

main90041-82002

9004A10168

main9004A-10168

9004A10170

main9004A-10170

9004A11325

main9004A-11325

9010506184

main90105-06184

90119T0396

main90119-T0396

9015950388

main90159-50388

9018208009

main90182-08009

90182T0038

main90182-T0038

9018905051

main90189-05051

31 parts on this diagram · 2 diagrams in section
