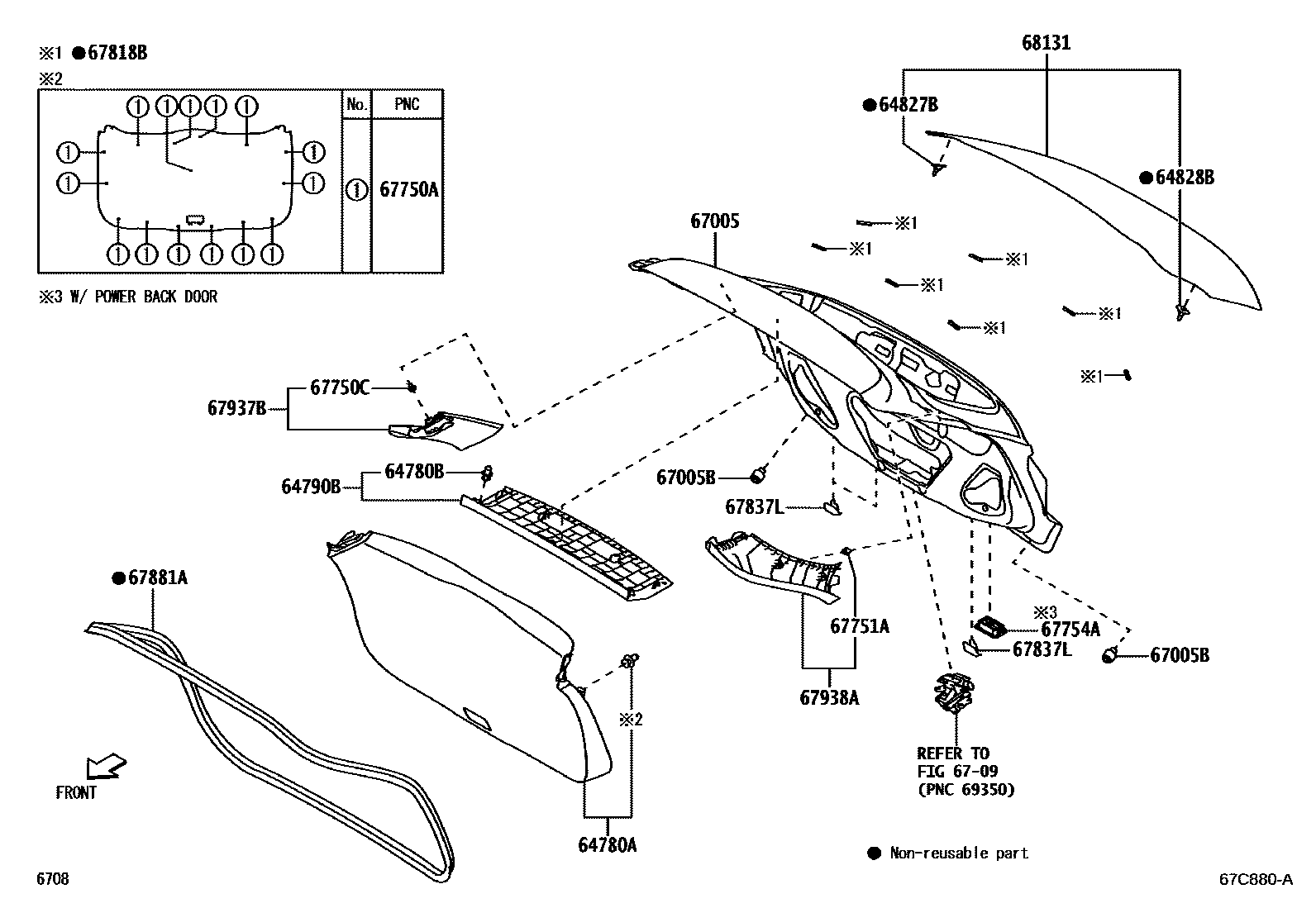

BACK DOOR PANEL & GLASS
64780APANEL ASSY, BACK DOOR TRIM
BLACK,TRIM1#,2#
BLACK,TRIM2#
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64790BPANEL ASSY, BACK DOOR TRIM, UPPER
BLACK,TRIM2#
BLACK,TRIM1#,2#
64827BCLIP, BACK WINDOW GLASS, RH
64828BCLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
VIETNAM
67005BCUSHION(FOR BACK DOOR PANEL)
6709
67750ACLIP(FOR BACK DOOR TRIM)
67750CCLIP(FOR BACK DOOR TRIM BOARD)
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67754ACOVER, BACK DOOR HOLE
BLACK,TRIM1#,2#
BLACK,TRIM2#
VIETNAM,BLACK,TRIM2#
67818BSPACER, BACK WINDOW GLASS
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67937BGARNISH, BACK DOOR SIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
67938AGARNISH, BACK DOOR SIDE, LH
BLACK,TRIM2#
BLACK,TRIM1#,2#
68131GLASS, BACK DOOR
18 parts on this diagram · 3 diagrams in section
