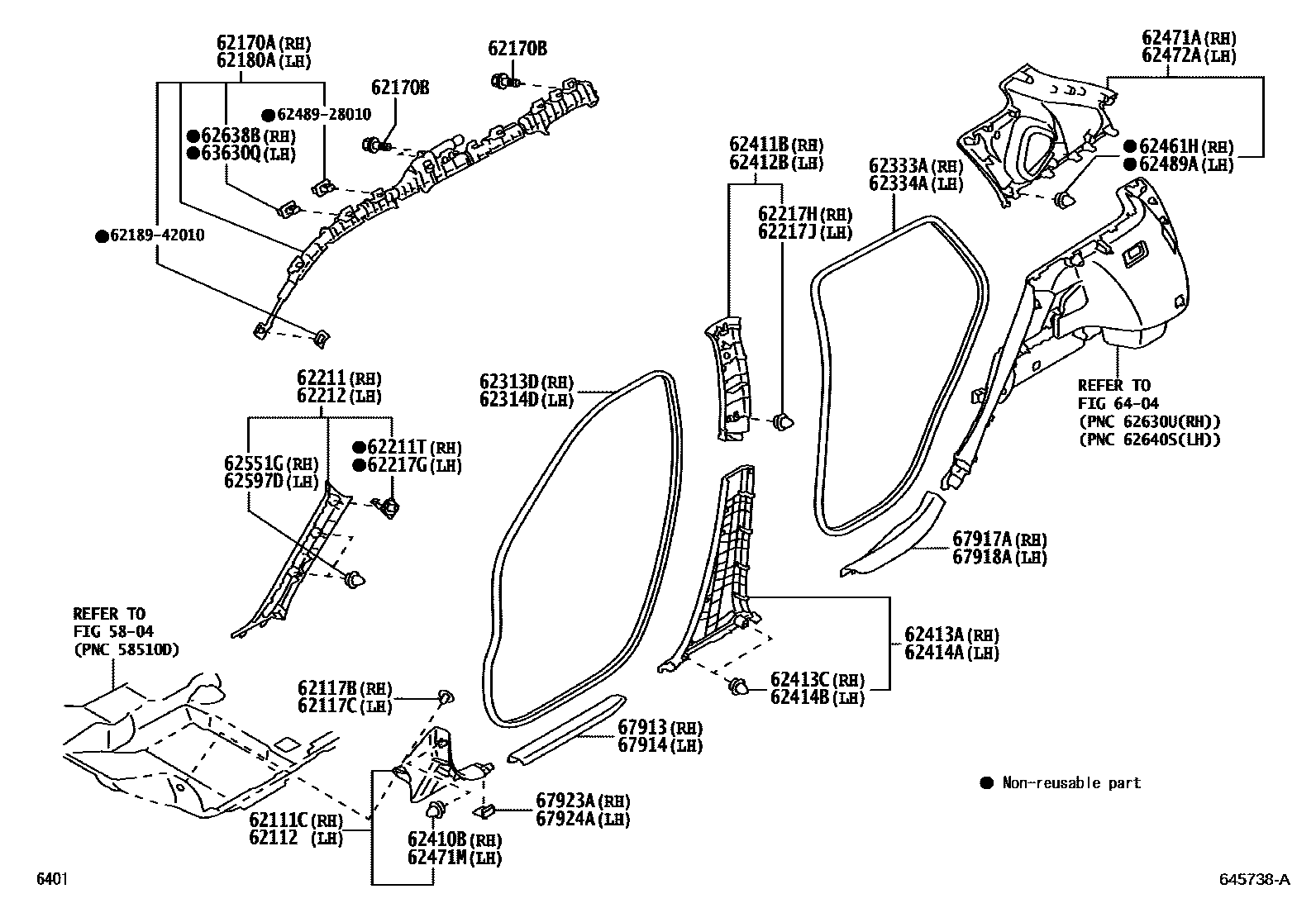

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ410-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main62111-BZ410-C0iNGC200..RHD..IDNP;NYC200..RHD..(L,M);NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main62111-BZ420-C0iNGC200,NYC200..LHD..IDNP202306

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ410-C0iNGC200..RHD..IDNP;NYC200..RHD..(L,M);NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main62112-BZ410-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main62112-BZ420-C0iNGC200..TAIW202306

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46131-C1iNGC200,NYC200..MA202306

BLACK,TRIM2#

main9004A-46131-C1iNGC200..TAIW202310

BLACK,TRIM1#,2#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main9004A-46131-C1iNGC200..TAIW202310

BLACK,TRIM1#,2#

main9004A-46131-C1iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-BZ120iNGC200..TAIW202306

main62170-BZ140iNYC200..TH202310

main62170-BZ160iNGC200,NYC200..MA202406

62170BBOLT, W/WASHER

main9004A-11383iNGC200..TAIW202306

IDN SOURCED PARTS

main9004A-11383iNGC200,NYC200..MA202406

main91673-80616iNGC200..TAIW202306

JAPAN SOURCED PARTS

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-BZ120iNGC200,NYC200..IDNP202306

main62180-BZ140iNYC200..TH202310

main62180-BZ160iNGC200,NYC200..MA202406

62211GARNISH, FRONT PILLAR, RH

main62211-BZ520-C0iNYC200..H..TH202306

BLACK,TRIM2#

main62211-BZ520-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52120iNGC200,NYC200..IDNP,THP202306

62212GARNISH, FRONT PILLAR, LH

main62212-BZ520-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62212-BZ520-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52120iNGC200,NYC200..IDNP,THP202306

62217HCLIP, CENTER PILLER GARNISH

main90467-T0021iNGC200,NYC200202306

62217JCLIP, CENTER PILLER GARNISH

main90467-T0021iNGC200,NYC200202306

62313DTRIM, FRONT DOOR OPENING, RH

main62313-BZ340-C0iNGC200,NYC200..IDNP202306

BLACK

main62313-BZ360-C0iNYC200..TH202310

BLACK

main62313-BZ370-C0iNGC200..TAIW202310

BLACK

62314DTRIM, FRONT DOOR OPENING, LH

main62313-BZ340-C0iNGC200,NYC200..IDNP202306

BLACK

main62313-BZ360-C0iNGC200,NYC200..MA202310

BLACK

main62313-BZ370-C0iNGC200..TAIW202310

BLACK

62333ATRIM, REAR DOOR OPENING, RH

main62333-BZ370-C0iNGC200,NYC200..IDNP202306

BLACK

main62333-BZ390-C0iNYC200..TH202310

BLACK

main62333-BZ400-C0iNGC200..TAIW202310

BLACK

62334ATRIM, REAR DOOR OPENING, LH

main62333-BZ370-C0iNGC200,NYC200..IDNP202306

BLACK

main62333-BZ390-C0iNYC200..TH202310

BLACK

main62333-BZ400-C0iNGC200..TAIW202310

BLACK

62410BCLIP

main90467-T0019iNGC200..TAIW202306

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-BZ340-C0iNYC200..(L,M)..TH;NGC200,NYC200..IDNP,MAP,TAIWP202306

BLACK,TRIM2#

main62411-BZ340-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ340-C0iNYC200..(L,M)..TH;NGC200,NYC200..IDNP,MAP,TAIWP202306

BLACK,TRIM2#

main62412-BZ340-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ340-C0iNYC200..L,M;NYC200..IDNP..H;NGC200..IDNP,TAIWP202306-202502

BLACK,TRIM2#

main62413-BZ340-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-T0021iNGC200,NYC200202306

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ340-C0iNGC200,NYC200..MA202306-202502

BLACK,TRIM2#

main62414-BZ340-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-T0021iNGC200,NYC200202306

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-T0021iNGC200,NYC200..IDNP,THP202306

62471AGARNISH, ROOF SIDE, INNER RH

main62471-BZ680-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62471-BZ680-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62471MCLIP

main90467-T0019iNGC200,NYC200..IDNP,THP202306

62472AGARNISH, ROOF SIDE, INNER LH

main62472-BZ680-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62472-BZ680-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62489ACLIP, ROOF SIDE INNER GARNISH

main90467-T0021iNGC200,NYC200..IDNP,THP202306

62551GCLIP

main90467-T0021iNGC200,NYC200..IDNP,THP202306

62597DCLIP

main90467-T0021iNGC200,NYC200..IDNP,THP202306

62638BCLIP

main90467-18017iNGC200,NYC200..MA202306

63630QCLIP

main90467-18017iNGC200,NYC200..IDNP,THP202306

6404

67913PLATE, FRONT DOOR SCUFF, RH

main67913-BZ250-C0iNYC200..L..TH;NGC200,NYC200..IDNP..(L,M)202306

BLACK,TRIM2#

main67913-BZ260-C0iNGC200..H..TAIW202306

BLACK,TRIM2#

main67913-BZ260-C0iNGC200..H..TAIW202310

BLACK,TRIM1#,2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-BZ250-C0iNYC200..L..TH;NGC200,NYC200..IDNP..(L,M)202306

BLACK,TRIM2#

main67914-BZ260-C0iNGC200..H..TAIW202306

BLACK,TRIM2#

main67914-BZ260-C0iNGC200..H..TAIW202310

BLACK,TRIM1#,2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-BZ290-C0iNGC200..IDNP202306

BLACK,TRIM2#

main67917-BZ310-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main67917-BZ310-C0iNYC200..MA202306

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-BZ290-C0iNGC200..TAIW202306

BLACK,TRIM2#

main67918-BZ310-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main67918-BZ310-C0iNYC200..L,M;NYC200..IDNP..H202306

BLACK,TRIM2#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67924-BZ020iNGC200,NYC200..IDNP,THP202306

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-BZ020iNGC200,NYC200..IDNP,THP202306

6218942010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-42010

6248928010CLIP, MAP LAMP RETAINER

main62489-28010

43 parts on this diagram · 1 diagram in section
