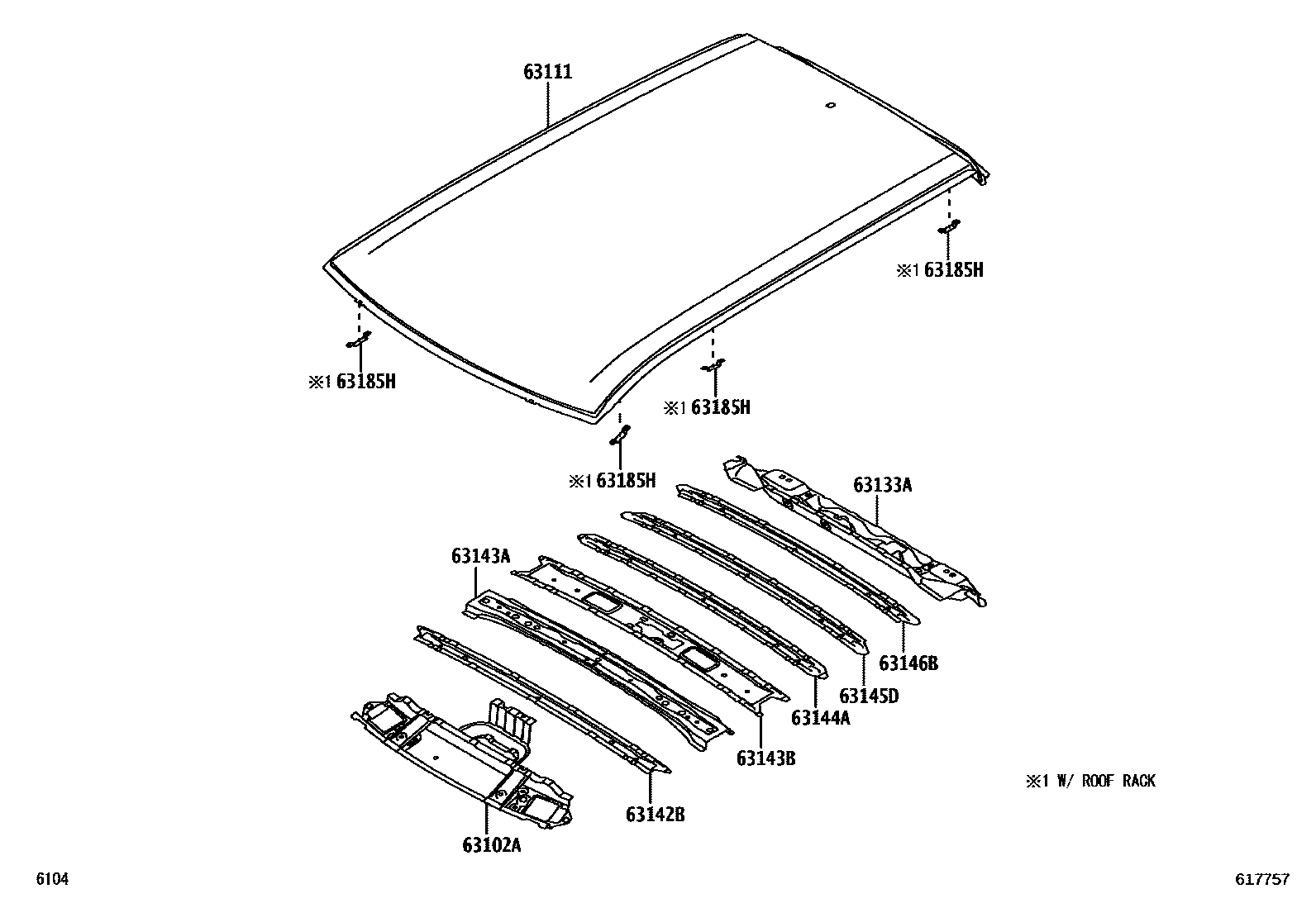

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0004 1ROOF PANEL 0006 1ROOF RACK 0009 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-BZ080iNYC200..H..TH;NYC200..IDNP..(H,M)202306

main63102-BZ100iNGC200;NYC200..(L,M)..TH;NYC200..(H,L)..(LA,MA)202306

63111PANEL, ROOF

main63111-BZ390iNYC200..L..TH;NGC200..RHD..M..(GEN,IDN)202306

main63111-BZ400iNGC200,NYC200..MA202406

main63111-BZ420iNGC200..(L,M)..TAIW202310

main63111-BZ430iNGC200..H..TAIW202310

main63113-BZ010iNYC200..H..TH;NYC200..IDNP..(H,M)202306

63133AFRAME, BACK WINDOW, UPPER

main63134-BZ320iNGC200..IDNP;NYC200..L..LA;NYC200..(L,M)..TH202306

main63134-BZ330iNYC200..H..TH;NYC200..IDNP..(H,M)202306

main63134-BZ340iNGC200..TAIW202310

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-BZ240iNGC200,NYC200..MA202406

63143AREINFORCEMENT, ROOF PANEL

main63141-BZ220iNGC200,NYC200..MA202406

main63141-BZ230iNYC200..H..TH;NYC200..IDNP..(H,M)202306

main63141-BZ240iNGC200..TAIW202310

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-BZ180iNGC200,NYC200..MA202406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-BZ150iNGC200..IDNP;NYC200..L..LA;NYC200..(L,M)..TH202306

63145DBRACKET, ROOF REINFORCEMENT

main63145-BZ070iNGC200..IDNP;NYC200..L..LA;NYC200..(L,M)..TH202306

63146BREINFORCEMENT, WINDSHIELD HEADER PANEL, NO.2

main63146-BZ030iNGC200..IDNP;NYC200..L..LA;NYC200..(L,M)..TH202306

63185HBRACKET, ROOF RACK

main63185-BZ050×2iNGC200..M..LA;NYC200..M..TH;NYC200..L..LA;NGC200..IDNP..(H,L);NGC200..LHD..M..GEN; NYC200..H..TH;NYC200..IDNP..(H,M)202306

10 parts on this diagram · 4 diagrams in section
