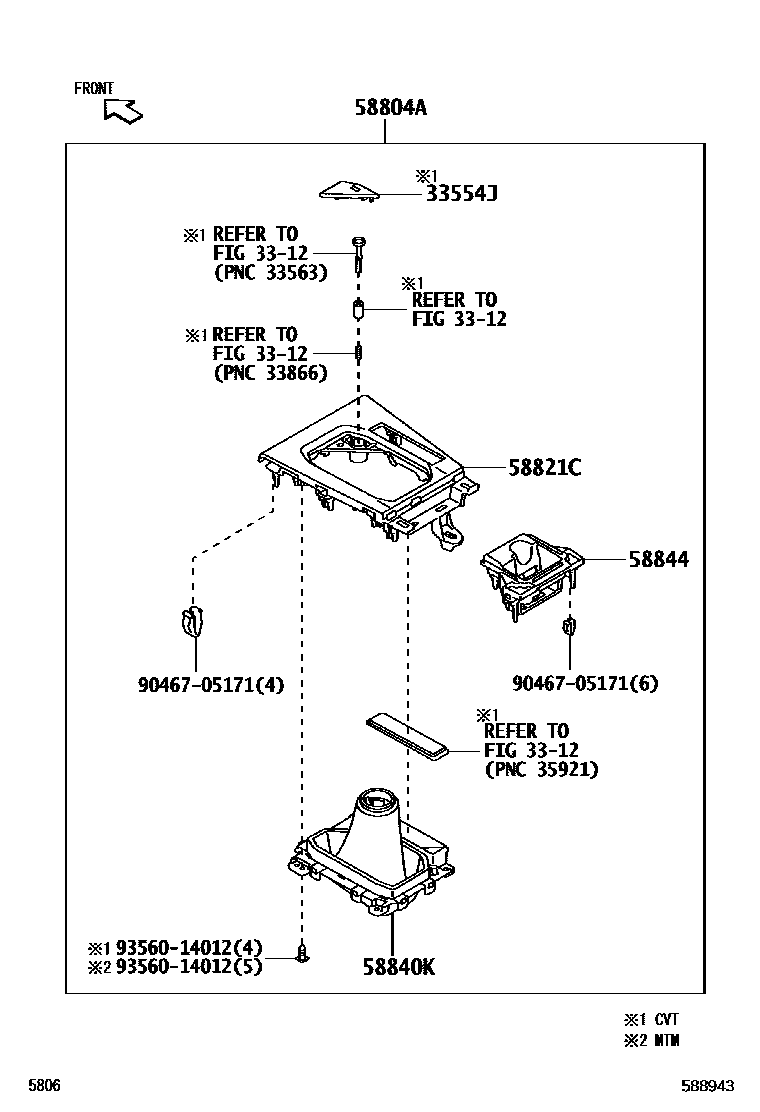

CONSOLE BOX & BRACKET

0001 1FRONT CONSOLE 0004 1FRONT CONSOLE 0005 1REAR CONSOLE 0006 1REAR CONSOLE 0007 1REAR CONSOLE 0008 1REAR CONSOLE 0009 1REAR CONSOLE

3312

33554JCOVER, SHIFT LOCK RELEASE BUTTON

main33554-BZ120-C1iNGC200,NYC200..IDNP..CVT202306

BLACK,TRIM2#

main33554-BZ140-C0iNYC200..(L,M)..TH202310

BLACK,TRIM1#,2#

main33554-BZ140-C0iNYC200..(L,M)..TH202310

BLACK,TRIM2#

main33554-BZ150-C0iNGC200..TAIW202310

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-BZ600-C2iNGC200..5F..IDN202306

BLACK,TRIM2#

main58804-BZ610-C4iNGC200..RHD..IDNP..CVT202306

DARK GRAY,TRIM2#

main58804-BZ620-C4iNGC200..LHD..IDNP..(H,M)202306

DARK GRAY,TRIM2#

main58804-BZ630-C4iNYC200..RHD..IDNP202306

DARK GRAY,TRIM2#

main58804-BZ640-C3iNYC200..LHD..(H,M)202306

DARK GRAY,TRIM2#

main58804-BZ650-C4iNYC200..H..TH202310

DARK GRAY,TRIM2#

main58804-BZ650-C4iNYC200..H..TH202310

DARK GRAY,TRIM1#,2#

main58804-BZ690-C2iNGC200..5F..LA202306

BLACK,TRIM2#

main58804-BZ710-C4iNGC200..CVT..L..LA202306

DARK GRAY,TRIM2#

main58804-BZ730-C3iNYC200..L..LA202306

DARK GRAY,TRIM2#

main58804-BZ740-C3iNYC200..L..TH202310

DARK GRAY,TRIM2#

58821CPANEL, CONSOLE, UPPER

main58821-BZ530-C0iNGC200..5F..IDN202306

BLACK,TRIM2#

main58821-BZ540-C1iNGC200..5F..LA202306

BLACK,TRIM2#

main58821-BZ550-C0iNGC200,NYC200..MA202306

BLACK,TRIM2#

main58821-BZ560-C0iNGC200,NYC200..LHD..IDNP..(H,M)202306

BLACK,TRIM2#

main58821-BZ590-C0iNYC200..M..TH202310

BLACK,TRIM1#,2#

main58821-BZ590-C0iNYC200..H..TH202310

BLACK,TRIM2#

main58821-BZ620-C0iNGC200..(H,M)..TAIW202310

BLACK,TRIM2#

main58821-BZ740-C1iNGC200,NYC200..CVT..L..LA202306

BLACK,TRIM2#

main58821-BZ770-C1iNYC200..L..TH202310

BLACK,TRIM2#

main58821-BZ780-C1iNGC200..L..TAIW202310

BLACK,TRIM2#

58840KCOVER ASSY, SHIFTING HOLE

main58840-BZ440-C2iNGC200..5F202306

BLACK,TRIM2#

main58840-BZ450-C3iNGC200,NYC200..RHD..IDNP..CVT202306

DARK GRAY,TRIM2#

main58840-BZ460-C3iNGC200,NYC200..LHD..IDNP..CVT202306

DARK GRAY,TRIM2#

main58840-BZ470-C3iNYC200..H..TH202310

DARK GRAY,TRIM2#

main58840-BZ470-C3iNYC200..(L,M)..TH202310

DARK GRAY,TRIM1#,2#

main58840-BZ490-C4iNGC200..TAIW202310

DARK GRAY,TRIM2#

58844BEZEL, CONSOLE BOX

main58844-BZ020-C0iNGC200,NYC200..IDNP202306

BLACK,TRIM2#

main58844-BZ030-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main58844-BZ030-C0iNYC200..(L,M)..TH202310

BLACK,TRIM2#

main58844-BZ040-C0iNGC200..TAIW202310

BLACK,TRIM2#

9046705171

main90467-05171

9356014012

main93560-14012

8 parts on this diagram · 7 diagrams in section
