FLOOR PAN & LOWER BACK PANEL

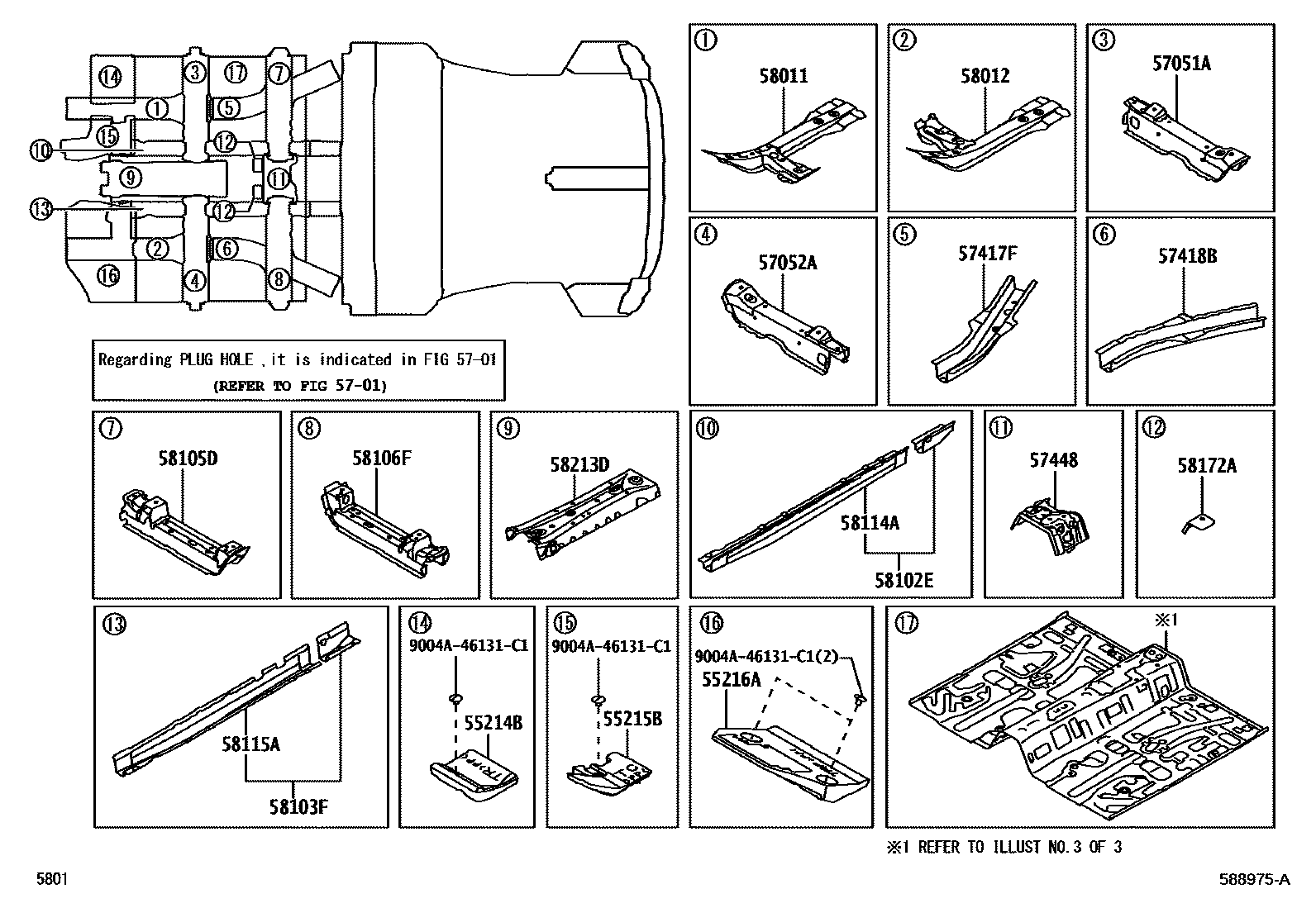

Parts diagram

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-BZ220i202406

main55214-BZ230i202306

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-BZ200i202306

main55215-BZ210i202306

main55215-BZ220i202306

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-BZ140i202406

main55216-BZ150i202306

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ310i202310

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ250i202310

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-BZ120i202306

main57417-BZ170i202310

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-BZ020i202310

main57418-BZ080i202310

57448RETAINER, CENTER FLOOR CROSSMEMBER

main57055-BZ030i202310

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58025-BZ060i202310

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58026-BZ060i202310

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-BZ190i202306

main58102-BZ200i202310

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58103-BZ080i202310

main58103-BZ090i202310

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-BZ060i202306

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-BZ030i202306

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-BZ070i202306

main58114-BZ100i202310

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-BZ100i202406

main58115-BZ130i202310

58172APLATE, PARKING BRAKE MOUNTING

main46522-BZ030×2i202306

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-BZ200i202306

main58213-BZ220i202307

9004A46131C1

main9004A-46131C1

20 parts on this diagram · 5 diagrams in section
