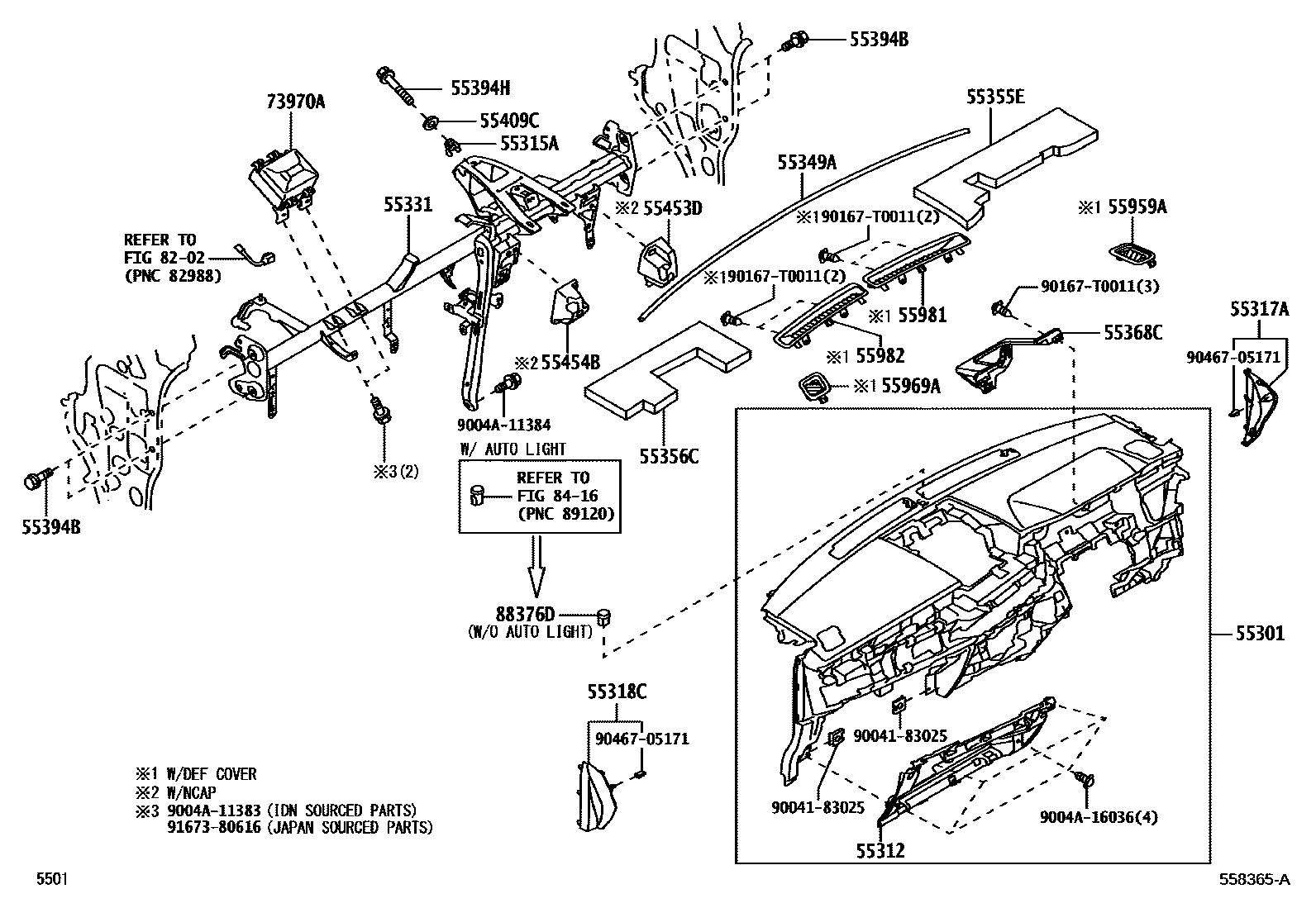

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0016 1 0017 1 0018 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-BZ460-C0iNGC200,NYC200..IDN202306

BLACK,TRIM2#

main55301-BZ470-C0iNGC200,NYC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main55301-BZ480-C0iNGC200..TAIW202306

BLACK,TRIM2#

main55301-BZ510-C0iNYC200..H..TH202310

BLACK,TRIM2#

main55301-BZ510-C0iNYC200..(L,M)..TH202310

BLACK,TRIM1#,2#

55312PANEL, INSTRUMENT, LOWER

main55312-BZ060-C0iNGC200,NYC200..RHD..IDNP202306

BLACK,TRIM2#

main55312-BZ160-C0iNGC200,NYC200..LHD202306

BLACK,TRIM2#

main55312-BZ180-C0iNYC200..H..TH202310

BLACK,TRIM2#

main55312-BZ180-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iNGC200..TAIW202306

55317APANEL, INSTRUMENT SIDE, RH

main55317-BZ040-C0iNGC200..RHD..IDNP;NYC200..RHD..(L,M);NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main55317-BZ040-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main55318-BZ110-C0iNGC200..TAIW202306

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-BZ070-C0iNGC200,NYC200..LHD..IDNP202306

BLACK,TRIM2#

main55318-BZ100-C0iNGC200,NYC200..MA202306

BLACK,TRIM2#

main55318-BZ100-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZB50iNGC200..TAIW202310

main55305-BZD80iNGC200..MA202306

main55305-BZD90iNGC200..5F..IDN202306

main55305-BZE00iNYC200..MA202306

main55305-BZE10iNGC200..LHD..IDNP202306

main55305-BZE30iNYC200..LHD202306

main55305-BZE70iNYC200..TH202310

55349ACUSHION, INSTRUMENT PANEL

main55349-BZ140iNGC200,NYC200..IDNP202306

55355ECUSHION, INSTRUMENT PANEL

main55355-BZ210iNGC200,NYC200..IDNP,THP202306

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-BZ210iNGC200,NYC200..IDNP,THP202306

55368CBRACKET, METER MOUNTING

main55368-BZ050iNGC200..TAIW202306

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020iNGC200,NYC200..MA202306

main90041-19A09iNGC200..TAIW202310

55394HBOLT, INSTRUMENT PANEL, NO.2

main90041-19A38iNGC200..TAIW202310

main9004A-11385iNGC200,NYC200..IDNP,THP202306

55409CPLUG, HOLE

main90048-71319iNGC200,NYC200..IDNP,THP202306

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ140iNGC200..RHD..H..GEN202306

NEPAL

main55453-BZ140iNGC200,NYC200..RHD..(GEN,IDN,TH)202306

BHUTAN

main55453-BZ140iNGC200,NYC200..RHD..(GEN,IDN,TH)202306

EAST TIMOR

main55453-BZ140iNGC200,NYC200..MA202406

main55453-BZ160iNGC200..TAIW202306

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ150iNGC200,NYC200..RHD..(GEN,IDN,TH)202306

NEPAL

main55454-BZ150iNGC200,NYC200..RHD..(GEN,IDN,TH)202306

BHUTAN

main55454-BZ150iNGC200,NYC200..RHD..(GEN,IDN,TH)202306

EAST TIMOR

main55454-BZ150iNGC200,NYC200..MA202406

main55454-BZ170iNGC200..TAIW202306

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-BZ130-C0iNGC200,NYC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main55959-BZ140-C0iNGC200..LHD..M..GEN202306

BLACK,TRIM2#

main55959-BZ140-C0iNGC200..LHD..M..GEN202306

PHILIPPINES,BLACK,TRIM2#

55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2

main55969-BZ110-C0iNGC200,NYC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main55969-BZ120-C0iNGC200..LHD..M..GEN202306

BLACK,TRIM2#

main55969-BZ120-C0iNGC200..LHD..M..GEN202306

PHILIPPINES,BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-BZ160-C0iNGC200,NYC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main55981-BZ170-C0iNGC200..LHD..M..GEN202306

BLACK,TRIM2#

main55981-BZ170-C0iNGC200..LHD..M..GEN202306

PHILIPPINES,BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-BZ160-C0iNGC200,NYC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main55982-BZ170-C0iNGC200..LHD..M..GEN202306

BLACK,TRIM2#

main55982-BZ170-C0iNGC200..LHD..M..GEN202306

PHILIPPINES,BLACK,TRIM2#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ470iNGC200,NYC200..IDNP202306

main73970-BZ480iNYC200..TH202310

main73970-BZ490iNGC200,NYC200..MA202406

8202WIRING & CLAMP

→ Go to FIG 82-02

8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

→ Go to FIG 84-16

88376DCAP, BLIND

main88376-B2010iNGC200..L..LA;NGC200..RHD..M..(GEN,IDN)202306

9004183025

main90041-83025

9004A11383

main9004A-11383

9004A11384

main9004A-11384

9004A16036

main9004A-16036

90167T0011

main90167-T0011

9046705171

main90467-05171

9167380616

main91673-80616

30 parts on this diagram · 15 diagrams in section
