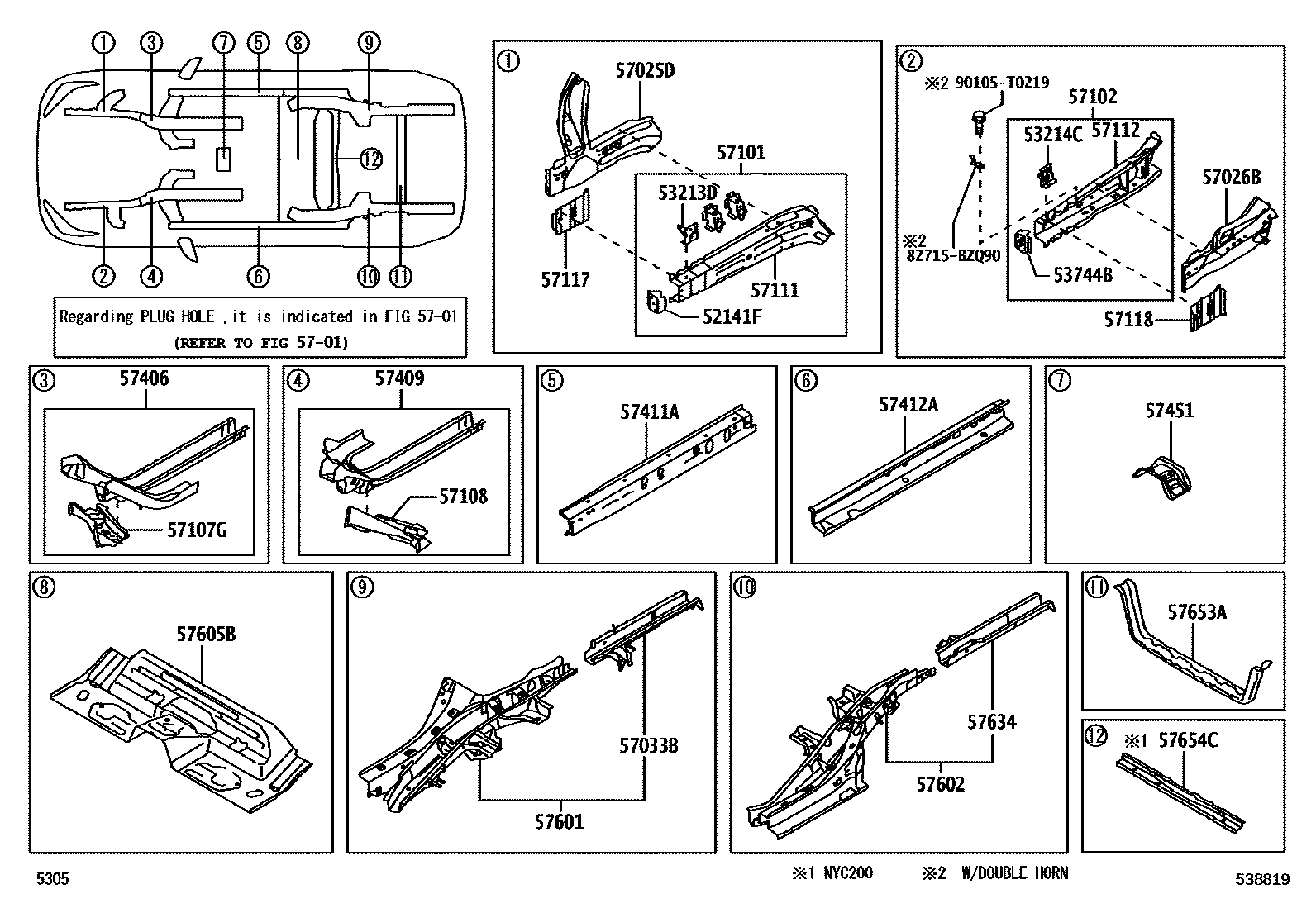

FLOOR SIDE MEMBER

52141FARM, FRONT BUMPER, RH

main52141-BZ100iNGC200,NYC200..IDNP,THP202306

53213DSUPPORT, RADIATOR, UPPER RH

main53213-BZ130iNGC200,NYC200..IDNP,THP202306

53214CSUPPORT, RADIATOR, UPPER LH

main53214-BZ110iNGC200,NYC200..IDNP,THP202306

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53078-BZ140iNGC200,NYC200..IDNP,THP202306

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-BZ070iNGC200..TAIW202310

main57025-BZ090iNYC200..IDNP,THP202306

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-BZ060iNGC200..IDNP202306

main57026-BZ100iNYC200..MA202406

main57026-BZ110iNYC200..LHD202306

57033BBRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 RH

main57033-BZ110iNGC200,NYC200..IDNP202306

main57033-BZ120iNGC200,NYC200..TAIW,TH202310

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ690iNGC200..TAIW202310

main57101-BZ810iNYC200..IDNP,THP202306

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ770iNGC200..IDNP202306

main57102-BZ890iNYC200..IDNP,THP202306

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-BZ130iNGC200..IDNP202306

main57107-BZ140iNYC200..IDNP,THP202306

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-BZ130iNGC200..TAIW202310

main57108-BZ140iNYC200..IDNP,THP202306

57111MEMBER, FRONT SIDE, RH

main57111-BZ290iNGC200,NYC200..IDNP,THP202306

57112MEMBER, FRONT SIDE, LH

main57112-BZ310iNGC200,NYC200..IDNP,THP202306

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-BZ080iNGC200..IDNP202306

main57117-BZ100iNYC200..IDNP,THP202306

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-BZ080iNGC200..TAIW202310

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ370iNGC200..IDNP202306

main57406-BZ380iNGC200..MA202406

main57406-BZ390iNYC200..IDNP202306

main57406-BZ400iNYC200..MA202406

main57406-BZ510iNYC200..TH202310

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ360iNGC200..TAIW202310

main57409-BZ370iNGC200..MA202406

main57409-BZ380iNYC200..IDNP202306

main57409-BZ390iNYC200..MA202406

main57409-BZ510iNYC200..TH202310

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-BZ410iNGC200,NYC200..MA202406

main57401-BZ560iNGC200..TAIW202310

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-BZ420iNGC200,NYC200..RHD..(IDNP,THP)202306

main57402-BZ550iNGC200,NYC200..LHD..IDNP202306

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ230iNGC200,NYC200..MA202406

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-BZ660iNGC200..IDNP202306

main57601-BZ670iNGC200..TAIW202310

main57601-BZ680iNYC200..IDNP202306

main57601-BZ690iNYC200..TH202310

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-BZ630iNGC200..IDNP202306

main57602-BZ640iNGC200..TAIW202310

main57602-BZ650iNYC200..IDNP202306

main57602-BZ660iNYC200..TH202310

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-BZ270iNGC200..IDNP202306

main57605-BZ280iNYC200..IDNP,THP202306

57634EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-BZ120iNGC200,NYC200..IDNP202306

main57634-BZ130iNGC200,NYC200..MA,TAIW,TH202310

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-BZ320iNGC200,NYC200..IDNP,THP202306

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-BZ090iNYC200..IDNP,THP202306

82715BZQ90BRACKET,WIRING HARNESS CLAMP

main82715-BZQ90

90105T0219

main90105-T0219

29 parts on this diagram · 1 diagram in section
