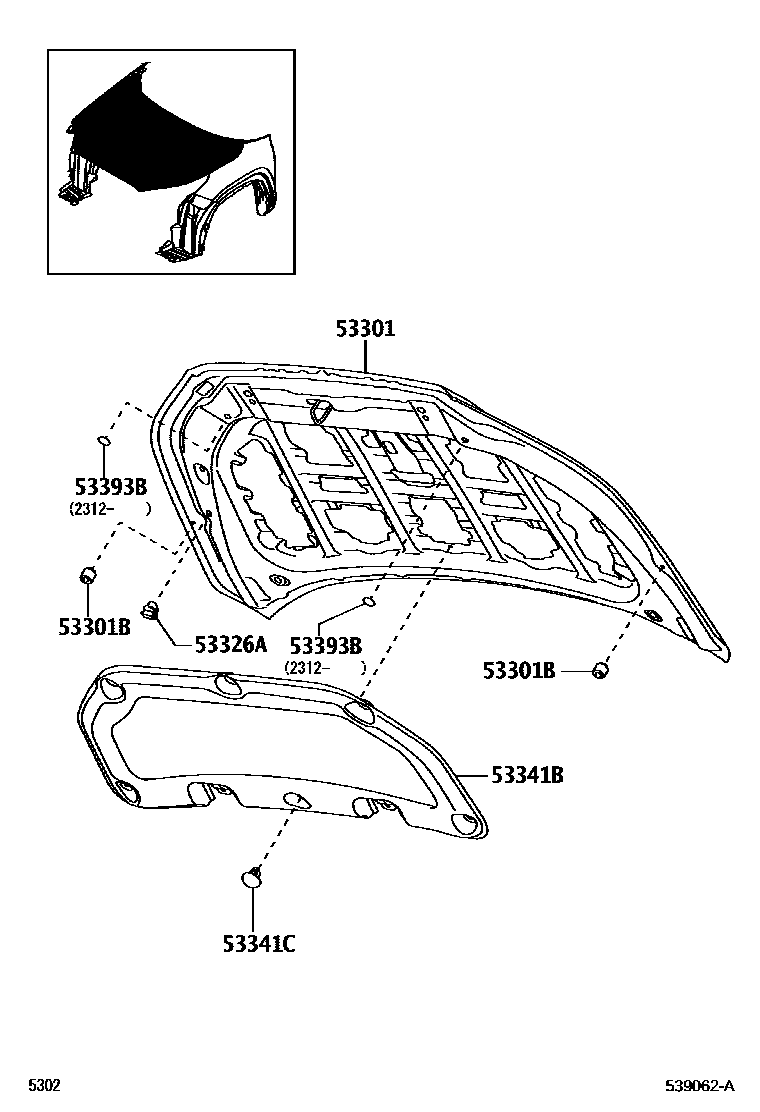

HOOD & FRONT FENDER

0001 1HOOD 0002 1FENDER LINER 0003 1FENDER LINER 0004 1FENDER

53301HOOD SUB-ASSY

main53301-BZ330iNGC200,NYC200..MA202406

main53301-BZ450iNGC200..TAIW202310

53301BCUSHION, HOOD BUMPER

main90541-09125×2iNGC200,NYC200..IDNP,THP202306

53326ACLIP, HOOD MOULDING

main53326-0D010iNGC200,NYC200..IDNP,THP202306

53341BINSULATOR, HOOD

main53341-BZ210iNGC200,NYC200..IDNP,THP202306

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014×6iNGC200,NYC200..IDNP,THP202306

53393BPROTECTOR, HOOD, FRONT

main53393-BZ040×2iNGC200,NYC200202312

6 parts on this diagram · 4 diagrams in section
