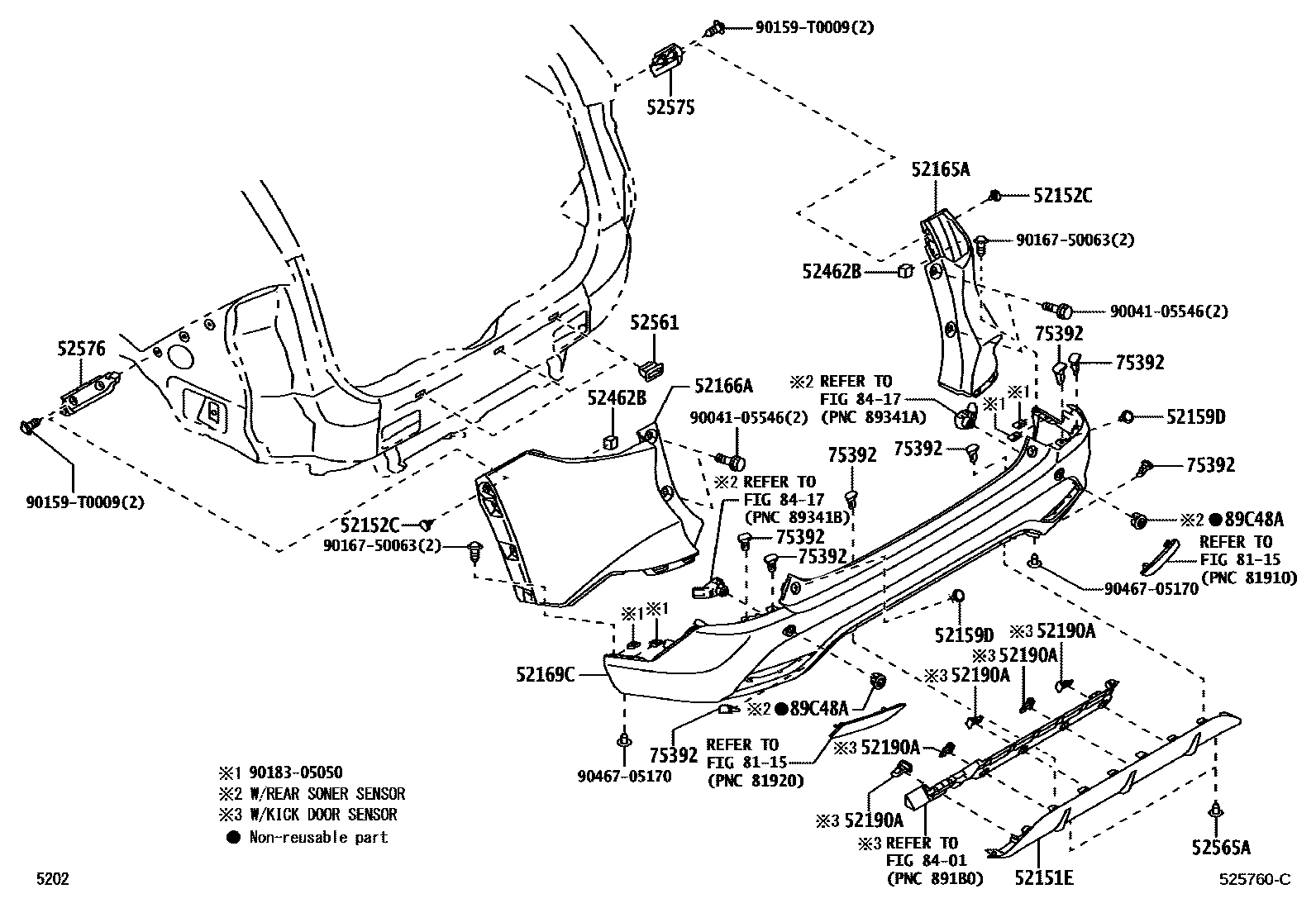

REAR BUMPER & BUMPER STAY
52151EBAR, REAR BUMPER
NO PAINT REQ.
BLUISH SILVER ME.,040 ,089 ,218 ,2PS ,3Q3 ,G64 ,XM1 ,XM3
BLUISH SILVER ME.,040 ,089 ,218 ,3Q3 ,G64 ,R77 ,S28
BLUISH SILVER ME.,040 ,089 ,218 ,2PS ,B88 ,G64 ,R77 ,S28 ,XM1 ,XM2 ,XM3
BLUISH SILVER ME.,089 ,1D4 ,218 ,B88 ,R77
BLUISH SILVER ME.,040 ,1F7 ,1G3 ,209 ,3R3 ,B88
GRAY METALLIC,089 ,1K0 ,218 ,2PS ,2YU ,B88 ,R77 ,S44 ,XM1 ,XM2
GRAY METALLIC,089 ,1K0 ,218 ,2PS ,2YU ,B88 ,R77 ,S44
NO PAINT REQ.
NO PAINT REQ.
52152CCLIP, REAR BUMPER SIDE
52159DCLIP, REAR BUMPER COVER
52165ACOVER, REAR BUMPER, UPR RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52190ACLIP
VIETNAM
52462BPAD, REAR BUMPER
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
8401SWITCH & RELAY & COMPUTER
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
MATERIAL COLOR BLACK
DESTINATION PACKAGE(OTHER-PANAMA,MATERIAL COLOR BLACK
DESTINATION PACKAGE(OTHER-CHILE,MATERIAL COLOR BLACK
DESTINATION PACKAGE(OTHER-BOLIVIA,MATERIAL COLOR BLACK
MATERIAL COLOR BLACK
DESTINATION PACKAGE(OTHER-PERU,MATERIAL COLOR BLACK
DESTINATION PACKAGE(OTHER-COSTA RICA,MATERIAL COLOR BLACK
9004105546
main90041-05546
90159T0009
main90159-T0009
9016750063
main90167-50063
9018305050
main90183-05050
9046705170
main90467-05170
22 parts on this diagram · 1 diagram in section
