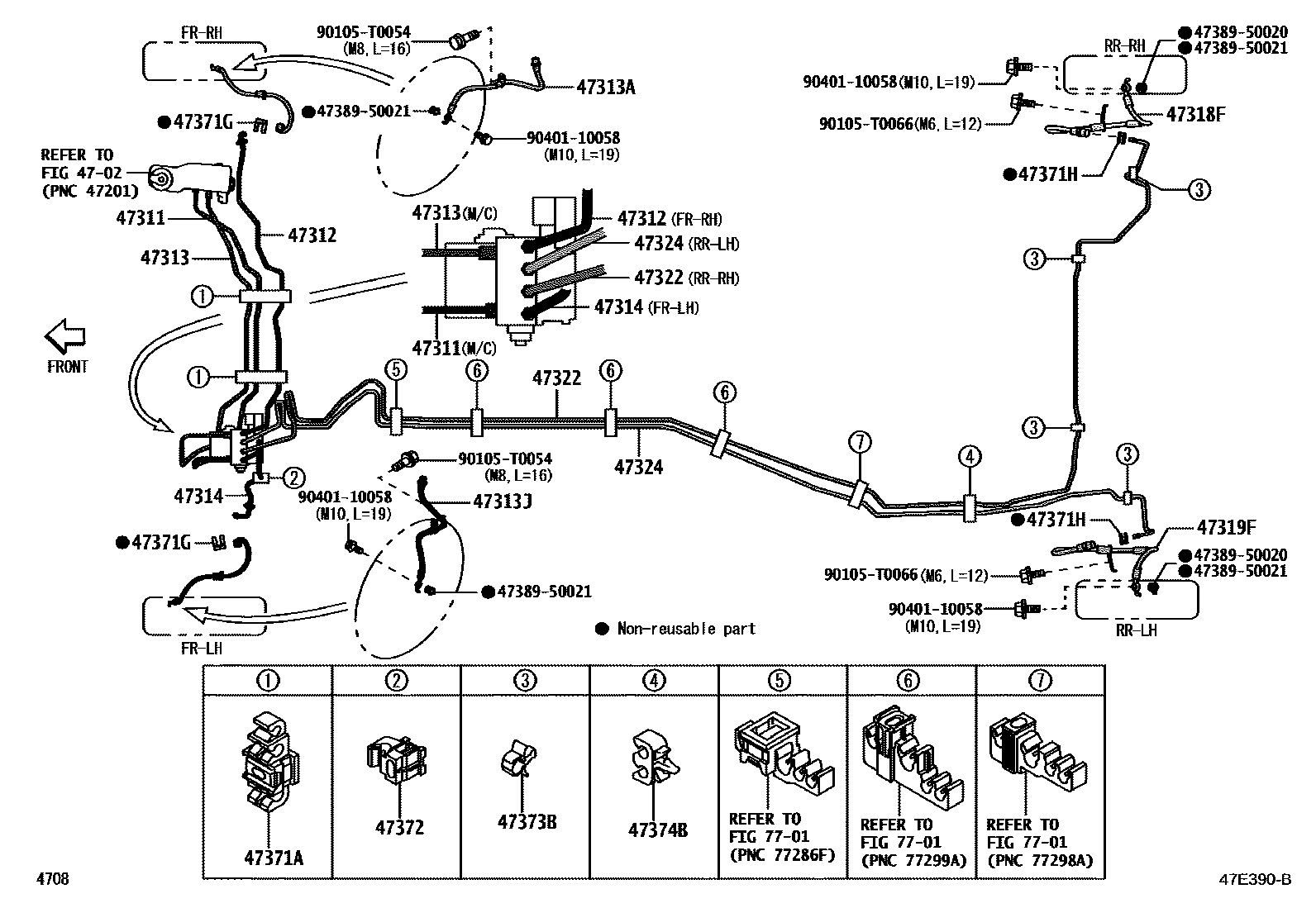

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1ACTUATOR 0006 1ACTUATOR 0007 1ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-BZ700iNGC200..H..IDN202306

main47311-BZ720iNGC200..LHD..H..GEN202306

main47311-BZ760iNGC200..MA202406

main47311-BZ770iNGC200..TAIW202310

main47311-BZ790iNGC200..M..IDN;NGC200..RHD..(GEN,LA)202306

main47311-BZ800iNGC200..LHD..IDNP..(L,M)202306

main47311-BZ810iNYC200..RHD..IDNP202306

main47311-BZ820iNYC200..LHD202306

main47311-BZ890iNYC200..TH202310

47312TUBE, FRONT BRAKE, NO.2

main47312-BZ710iNGC200..RHD..IDNP202306

main47312-BZ720iNGC200..LHD..IDNP202306

main47312-BZ780iNGC200..MA202406

main47312-BZ790iNGC200..TAIW202310

main47312-BZ810iNYC200..IDNP,THP202306

47313TUBE, FRONT BRAKE, NO.3

main47313-BZ660iNGC200..H..IDN202306

main47313-BZ680iNGC200..LHD..H..GEN202306

main47313-BZ740iNGC200..MA202406

main47313-BZ750iNGC200..TAIW202310

main47313-BZ770iNGC200..M..IDN;NGC200..RHD..(GEN,LA)202306

main47313-BZ780iNGC200..LHD..IDNP..(L,M)202306

main47313-BZ810iNYC200..RHD..IDNP202306

main47313-BZ820iNYC200..LHD202306

main47313-BZ870iNYC200..MA202310

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main9004A-94114iNGC200,NYC200..IDNP202306

main9004A-94145iNGC200,NYC200..MA202406

main9004A-94152iNYC200..TH202310

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main9004A-94114iNGC200,NYC200..IDNP202306

main9004A-94145iNGC200,NYC200..MA202406

main9004A-94152iNYC200..TH202310

47314TUBE, FRONT BRAKE, NO.4

main47314-BZ680iNGC200..RHD..IDNP202306

main47314-BZ690iNGC200..LHD..IDNP202306

main47314-BZ740iNGC200..MA202406

main47314-BZ750iNGC200..TAIW202310

main47314-BZ770iNYC200..MA,TH202310

main47314-BZ770iNYC200..RHD..IDNP202306-202502

PAINTED=NOTHING

main47314-BZ780iNYC200..LHD202306

47318FHOSE, FLEXIBLE(FOR REAR RH)

main47330-BZ030iNGC200,NYC200..IDNP202306

main47330-BZ050iNYC200..TH202310

main47330-BZ080iNGC200,NYC200..MA202406

47319FHOSE, FLEXIBLE(FOR REAR LH)

main47340-BZ030iNGC200..TAIW202306

main47340-BZ050iNYC200..TH202310

main47340-BZ080iNGC200,NYC200..MA202406

47322TUBE, REAR BRAKE, NO.2

main47322-BZ500iNGC200..MA202306

main47322-BZ510iNGC200..TAIW202306

main47322-BZ560iNYC200..RHD..(IDNP,THP)202306

main47322-BZ570iNYC200..LHD202306

47324TUBE, REAR BRAKE, NO.4

main47324-BZ560iNGC200..RHD..IDNP202306

main47324-BZ570iNGC200..TAIW202306

main47324-BZ610iNYC200..MA202306

main47324-BZ620iNYC200..LHD202306

47371ACLAMP, BRAKE TUBE, NO.1

main47371-B2080iNYC200..LHD;NGC200..IDNP202306-202402

main47371-BZ070iNGC200..MA,TAIW202310

main47371-BZ160iNYC200..MA,TH202310

main47371-BZ240iNYC200..RHD..IDNP202306

main47371-BZ300iNYC200..LHD;NGC200..IDNP202403

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441iNGC200..TAIW202306

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441iNGC200,NYC200..IDNP,THP202306

47372CLAMP, BRAKE TUBE, NO.2

main47372-B2040iNGC200,NYC200..IDNP202306

main47372-BZ020iNGC200,NYC200..TAIW,TH202310

47373BCLAMP, BRAKE TUBE, NO.3

main47371-BZ140iNGC200,NYC200..TAIW,TH202310

main90044-64918iNGC200,NYC200..IDNP202306

47374BCLAMP, BRAKE TUBE, NO.4

main47372-BZ080iNGC200,NYC200..TAIW,TH202310

main90044-64891iNGC200,NYC200..IDNP202306

7701FUEL TANK & TUBE

→ Go to FIG 77-01

4738950020

main47389-50020

4738950021

main47389-50021

90105T0054

main90105-T0054

90105T0066

main90105-T0066

9040110058

main90401-10058

23 parts on this diagram · 7 diagrams in section
