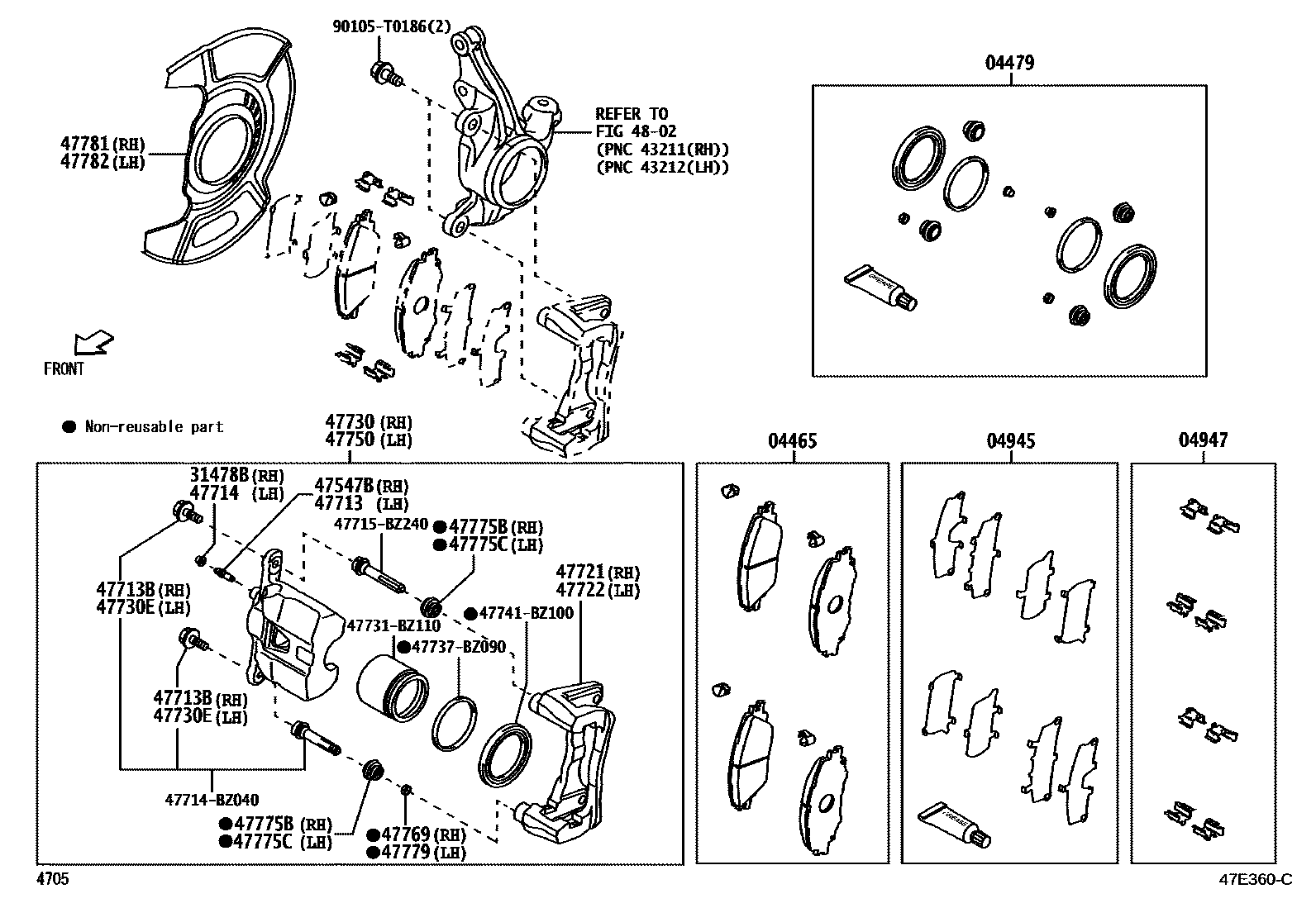

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-B1430iNGC200..TAIW202310

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B1190iNGC200,NYC200..MA202406

main04478-B1200iNGC200,NYC200..TAIW,TH202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-B1070iNGC200,NYC200..IDNP202306

main04945-B1080iNGC200,NYC200..TAIW,TH202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-B1030iNGC200,NYC200..IDNP,THP202306

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ140iNGC200,NYC200..IDNP202306

main47548-BZ160iNGC200,NYC200..TAIW,TH202310

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ190iNGC200,NYC200..IDNP202306

main47547-BZ200iNGC200,NYC200..TAIW,TH202310

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ190iNGC200,NYC200..IDNP202306

main47547-BZ200iNGC200,NYC200..TAIW,TH202310

47713BBOLT(FOR FRONT DISC BRAKE CYLINDER)

main47715-BZ260×2iNGC200,NYC200..MA202406

main47715-BZ270×2iNGC200,NYC200..TAIW,TH202310

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ140iNGC200,NYC200..IDNP202306

main47548-BZ160iNGC200,NYC200..TAIW,TH202310

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-BZ140iNGC200,NYC200..MA202406

main47721-BZ170iNGC200,NYC200..TAIW,TH202310

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-BZ020iNGC200,NYC200..IDNP202306

main47722-BZ030iNGC200,NYC200..TAIW,TH202310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ140iNGC200,NYC200..IDNP202306

main47730-BZ170iNGC200,NYC200..TAIW,TH202310

47730EBOLT(FOR FRONT DISC BRAKE CYLINDER)

main47715-BZ260×2iNGC200,NYC200..IDNP202306

main47715-BZ270×2iNGC200,NYC200..TAIW,TH202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ150iNGC200,NYC200..IDNP202306

main47750-BZ180iNGC200,NYC200..TAIW,TH202310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-BZ070iNGC200,NYC200..IDNP202306

main47769-BZ080iNGC200,NYC200..TAIW,TH202310

47775BBOOT, BUSH DUST, NO.1

main47775-BZ100×2iNGC200,NYC200..MA202406

main47775-BZ110×2iNGC200,NYC200..TAIW,TH202310

47775CBOOT, BUSH DUST, NO.2

main47775-BZ100×2iNGC200,NYC200..IDNP202306

main47775-BZ110×2iNGC200,NYC200..TAIW,TH202310

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-BZ070iNGC200,NYC200..IDNP202306

main47769-BZ080iNGC200,NYC200..TAIW,TH202310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ190iNGC200,NYC200..IDNP,THP202306

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ190iNGC200,NYC200..IDNP,THP202306

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

47714BZ040CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47714-BZ040

47715BZ240PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-BZ240

47731BZ110PISTON, FRONT DISC BRAKE

main47731-BZ110

47737BZ090SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-BZ090

47741BZ100BOOT, FRONT DISC BRAKE CYLINDER

main47741-BZ100

90105T0186

main90105-T0186

27 parts on this diagram · 2 diagrams in section
