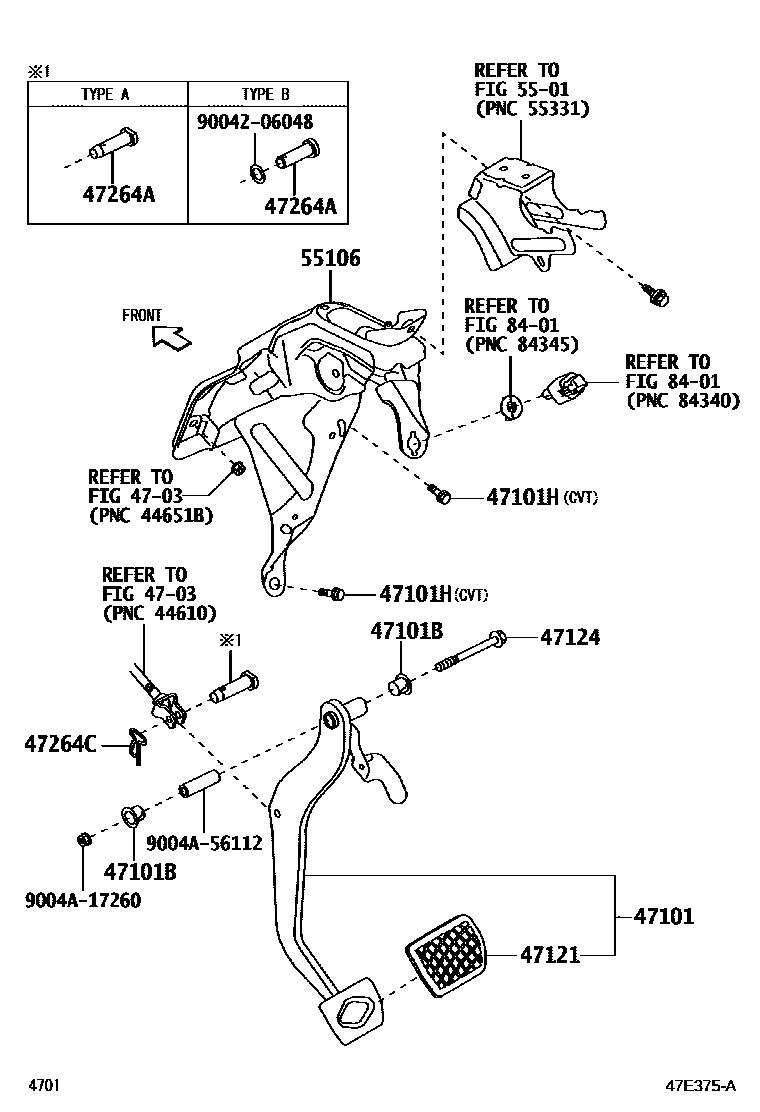

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47110-BZ570iNGC200..RHD..IDNP..CVT202306

main47110-BZ580iNGC200..5F..IDN202306

main47110-BZ590iNGC200..LHD..CVT202306

main47110-BZ600iNGC200..5F..LA202306

main47110-BZ730iNYC200..RHD202306

main47110-BZ740iNYC200..LHD202306

main47110-BZ750iNGC200..MA202406

47101BBUSH(FOR BRAKE PEDAL)

main90043-86137iNGC200..MA202406

main90043-86137iNYC200..MA,TH202310

MA SOURCED PARTS

main9004A-38094iNGC200,NYC200..IDNP,TAIWP202306

main9004A-38094iNYC200..MA,TH202310

THA SOURCED PARTS

47101HBOLT, BRAKE PEDAL STOP, NO.2

main9004A-11381iNGC200..RHD..IDNP..CVT202306

47121PAD, BRAKE PEDAL

main47121-BZ060iNYC200..RHD202306

MA SOURCED PARTS

main47121-BZ060iNGC200..MA202406

main47121-BZ070iNYC200..RHD202306

THA/IDN SOURCED PART

main47121-BZ080iNGC200..5F202306-202412

sub47121-BZ081

main47121-BZ081iNGC200..5F202501

47124SHAFT, BRAKE PEDAL

main90041-05626iNGC200,NYC200..MA,TH202310

main9004A-10281iNGC200,NYC200..IDNP,TAIWP202306

47264APIN(FOR PUSH ROD)

main90042-40143iNGC200..RHD..IDNP202306

TYPE B

main90042-40151iNGC200..RHD..IDNP202306

TYPE A

main90042-40151iNGC200..MA202406

main90249-08051iNYC200..MA202306

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iNGC200,NYC200..IDNP202306

main90468-16142iNYC200..TH202310

5501

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-BZ540iNGC200..RHD202306

main55106-BZ550iNGC200..LHD202306

main55106-BZ640iNYC200..LHD202306

main55106-BZ650iNYC200..RHD202306

8401

9004206048

main90042-06048

9004A17260

main9004A-17260

9004A56112

main9004A-56112

14 parts on this diagram · 7 diagrams in section
