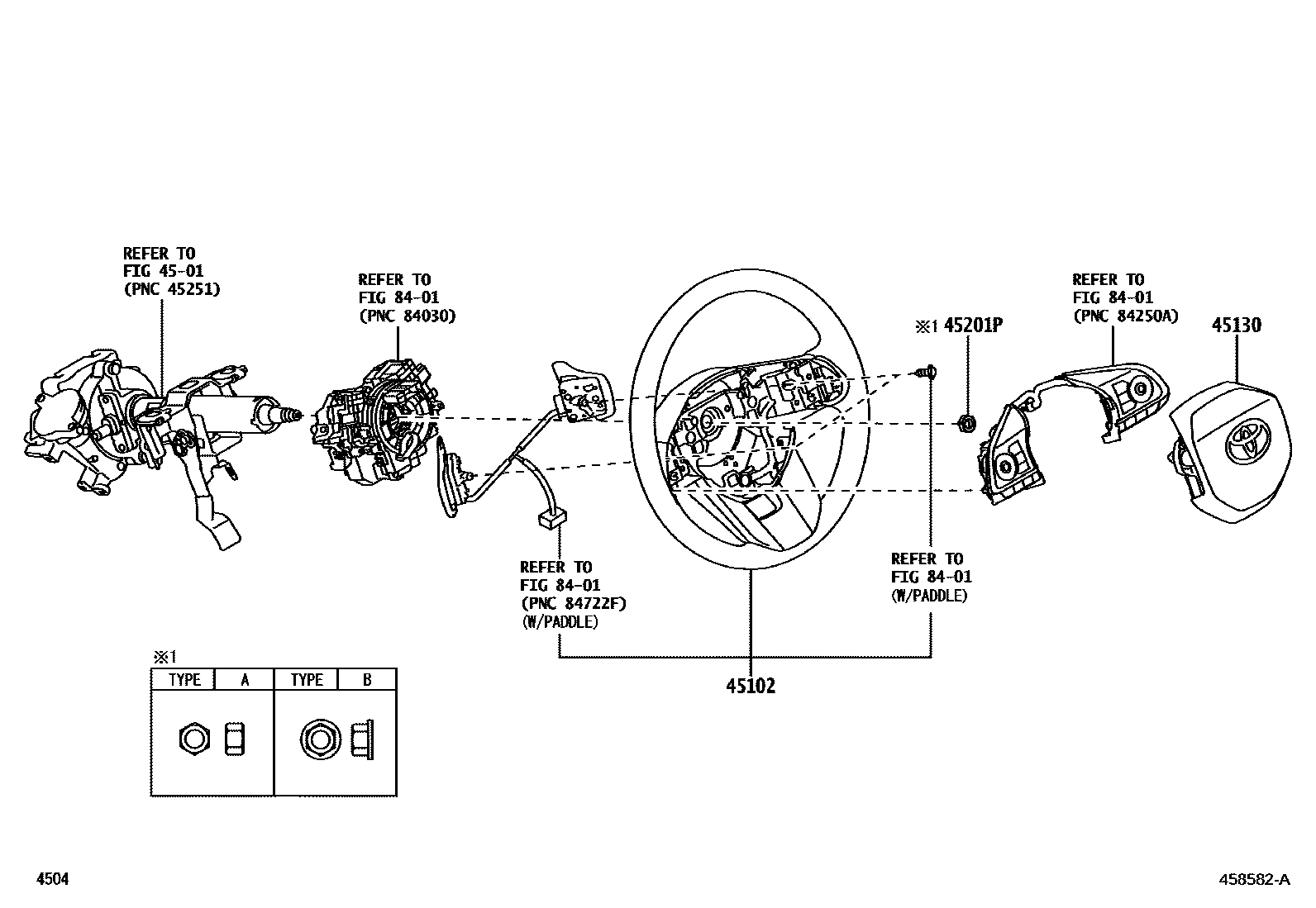

STEERING WHEEL

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45102WHEEL SUB-ASSY, STEERING

main45102-BZA40-C1iNGC200,NYC200..LHD..L202306

BLACK,TRIM2#

main45102-BZC70-C1iNGC200..IDNP..H202306

BLACK METALLIC,TRIM2#

main45102-BZD00-C1iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK METALLIC,TRIM1#,2#; BLACK METALLIC,TRIM2#

main45102-BZE50-C1iNGC200..MA202406

BLACK METALLIC,TRIM2#

main45102-BZE60-C0iNYC200..M..LA;NGC200..RHD..M;NGC200..LHD..(H,M)..(LA,TAIW)202306

BLACK METALLIC,TRIM2#

main45102-BZE70-C0iNYC200..IDNP..H;NGC200..LHD..M..GEN202306

BLACK METALLIC,TRIM2#

main45102-BZE80-C1iNYC200..MA202406

BLACK METALLIC,TRIM2#

45130BUTTON ASSY, HORN

main45130-BZA70-C0iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main45130-BZB20-C0iNGC200..TAIW202310

BLACK,TRIM2#

main45130-BZB30-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main9004A-17176iNGC200,NYC200..MA202406

TYPE A

main90179-12071iNGC200,NYC200..MA202406

TYPE B

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 1 diagram in section
