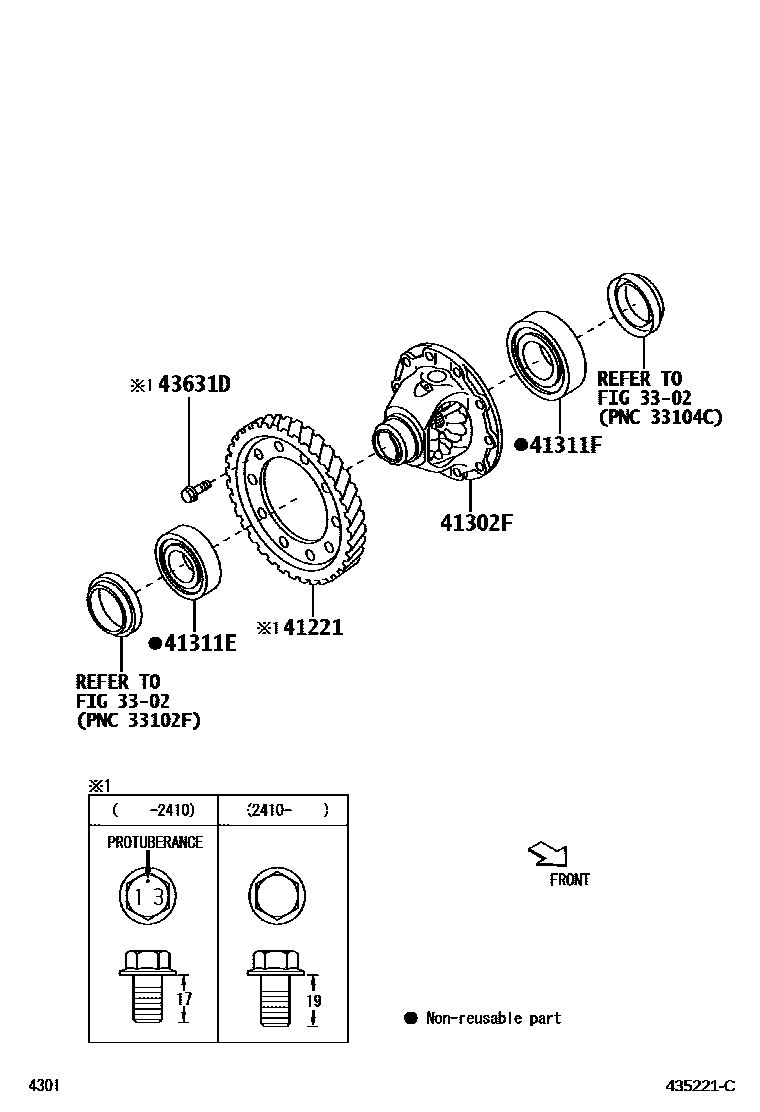

FRONT AXLE HOUSING & DIFFERENTIAL

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

41221GEAR, FRONT DIFFERENTIAL RING

main41221-BZ320iNGC200..5F202306-202410

main41221-BZ321iNGC200..5F202410

41302FCASE SUB-ASSY, FRONT DIFFERENTIAL

main41301-BZ070iNGC200..5F202306

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main9004A-36123iNGC200..5F202306

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main9004A-36124iNGC200..5F202306

43631DBOLT, HEXAGON (FOR DIFFERENTIAL CASE)

main9004A-10120×10iNGC200..5F202306-202410

main9004A-10296×10iNGC200..5F202410

6 parts on this diagram · 1 diagram in section
