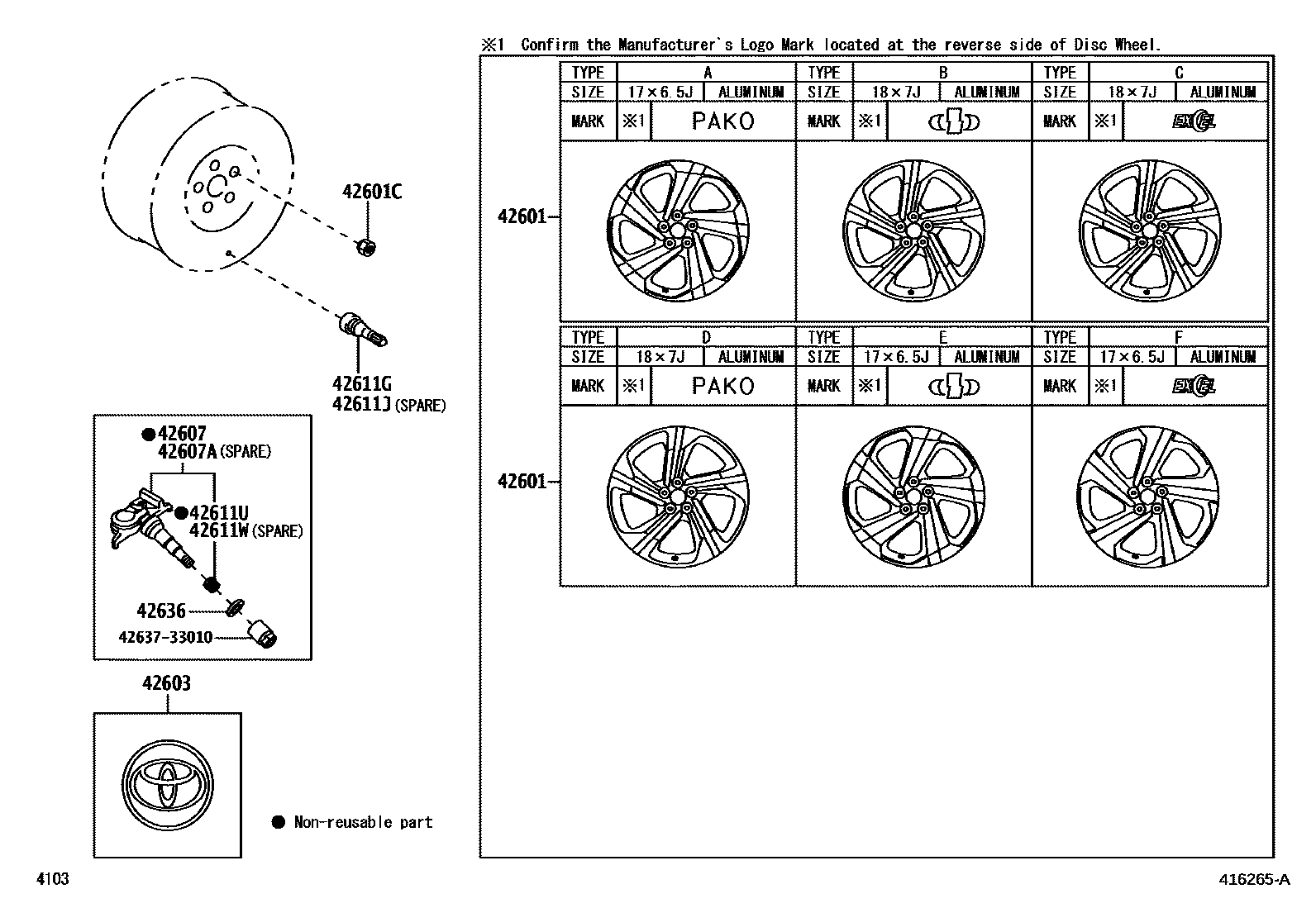

DISC WHEEL & WHEEL CAP

0001 1WHEEL 0002 1WHEEL 0003 1WHEEL 0004 1WHEEL 0005 1WHEEL(SPARE) 0006 1WHEEL(SPARE) 0007 1TUBELESS TIRE 0008 1TUBELESS TIRE , BALANCE WEIGH

42601WHEEL, DISC

main42611-BZF50iNGC200..(H,M)..TAIW202310

17X6.5J(AL),TYPE H

main42611-BZJ60iNGC200..M..LA;NGC200..IDNP..H;NYC200..IDNP..(H,M)202306

18X7J(AL),TYPE B

main42611-BZK20iNGC200..M..(GEN,IDN)202306

17X6.5J(AL),TYPE E

main42611-BZM70iNGC200,NYC200..L..LA202306

17X6.5J(AL),TYPE A

main42611-BZM80iNYC200..L..TH202310

17X6.5J(AL),TYPE J

main42611-BZN00iNGC200..M..(GEN,IDN)202306

17X6.5J(AL),TYPE F

main42611-BZN10iNYC200..M..TH202310

17X6.5J(AL),TYPE L

main42611-BZN20iNYC200..M..TH202310

17X6.5J(AL),TYPE M

main42611-BZN30iNGC200..M..LA;NGC200..IDNP..H;NYC200..IDNP..(H,M)202306

18X7J(AL),TYPE C

main42611-BZN40iNGC200..M..LA;NGC200..IDNP..H;NYC200..IDNP..(H,M)202306

18X7J(AL),TYPE D

main42611-BZN50iNYC200..H..TH202310

18X7J(AL),TYPE K

main42611-BZN60iNGC200..L..TAIW202310

17X6.5J(AL),TYPE G

main42611-BZN90iNGC200,NYC200..MA202406

18X7J(AL),TYPE I

42601CNUT, HUB (FOR AXLE)

main90049-11063iNYC200..TH202310

main9004A-94124iNGC200,NYC200..IDNP202306

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42638-BZ490iNGC200,NYC200..IDNP202306

*ALU

main42638-BZ680iNYC200..TH202310

*ALU

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12020iNGC200..TAIW202310

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019iNGC200,NYC200..IDNP202306

main90080-94031iNYC200..(L,M)..TH202310

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iNGC200,NYC200..IDNP202306

42611UCAP, TIRE VALVE

main90942-05039iNGC200..TAIW202310

42611WCAP, TIRE VALVE (FOR SPARE)

42636WASHER, TIRE VALVE

main42636-33010iNGC200,NYC200..H..(MA,TH)202310

4263733010NUT, YIRE TUBE

main42637-33010

11 parts on this diagram · 8 diagrams in section
