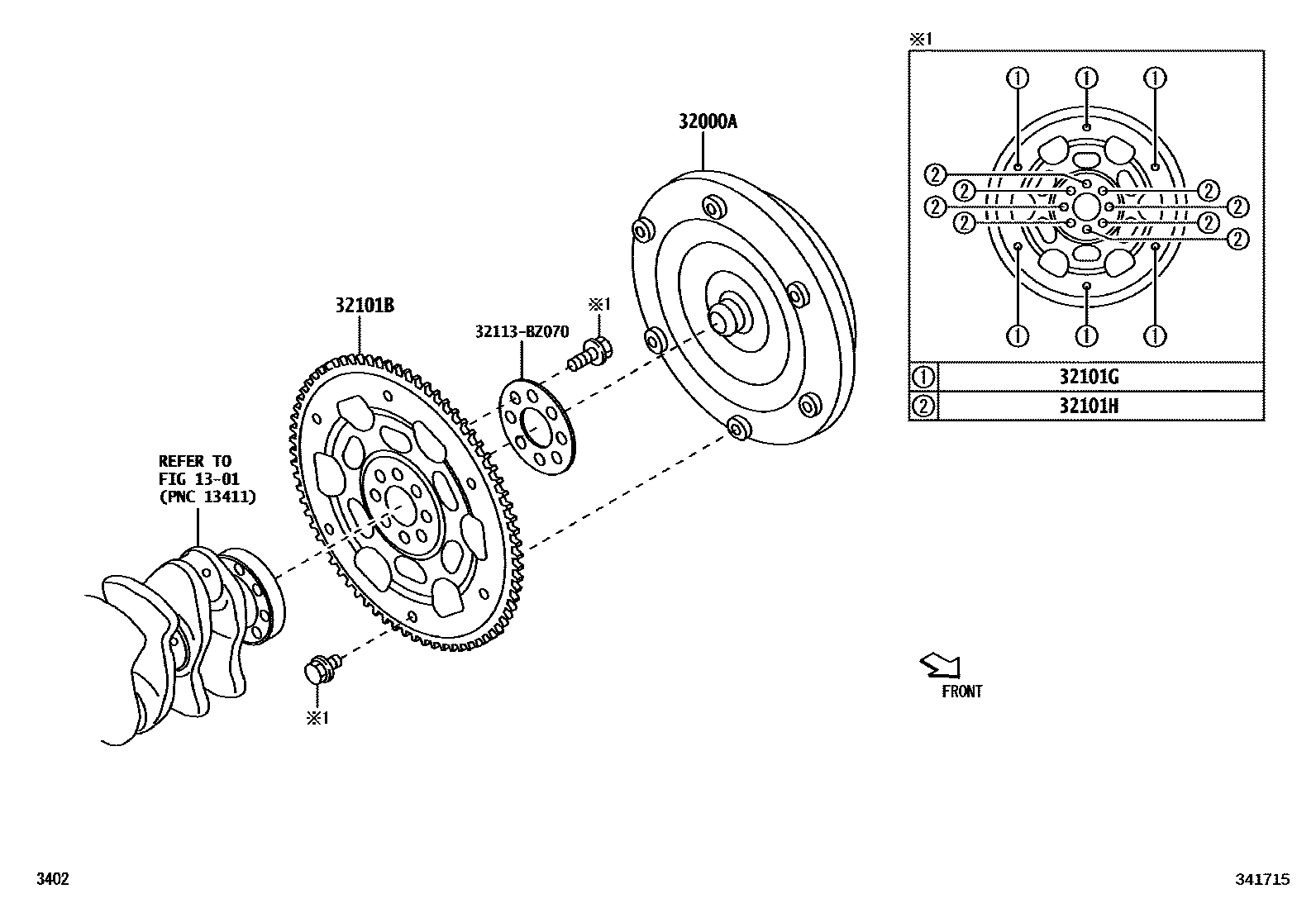

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B2230iNGC200..(IDNP,TAIWP)..CVT202306

JAPAN SOURCED PARTS

main32000-BZ010iNGC200..MA202406

MA SOURCED PARTS

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-BZ100iNGC200..IDNP..CVT202306

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main9004A-10300iNGC200..TAIW202310

SILVER(M8,L=9)

main9004A-10301×5iNGC200..TAIW202310

BLACK(M8,L=9)

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main9004A-10200×8iNGC200..MA202406

32113BZ070

main32113-BZ070

6 parts on this diagram · 1 diagram in section
