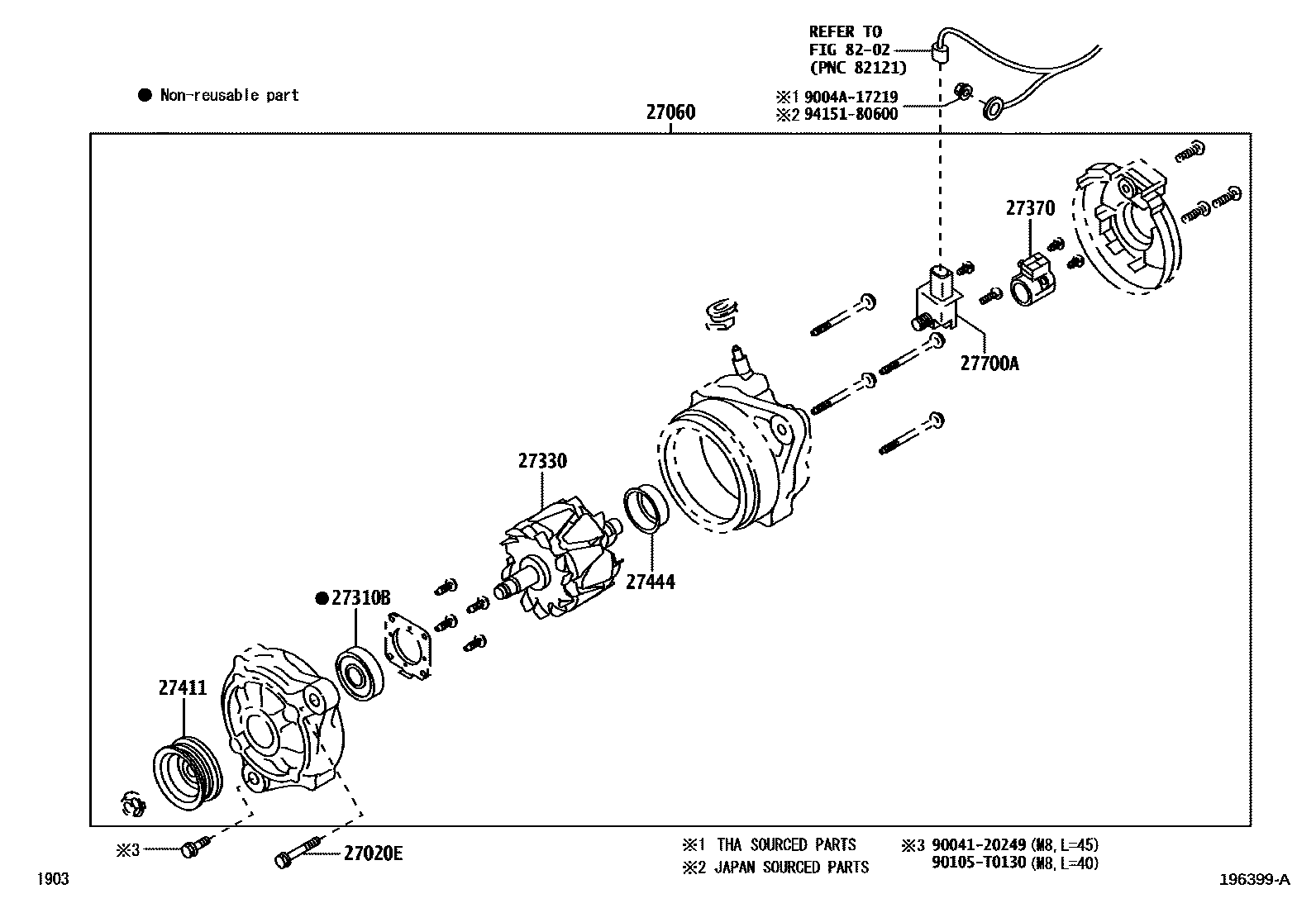

ALTERNATOR

0001 112V 80A 0002 112V 100A

27020EBOLT(FOR ALTERNATOR)

main91552-81075i2NRVE..NGC200..IDNP202306

27060ALTERNATOR ASSY, W/REGULATOR

main27060-BZ460i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

12V 80A

main27060-BZ480i2NRVE..NGC200..H..IDN;2NRVE..NGC200..LHD..H..GEN202306

12V 100A

main27060-BZ570i2NRVE..NGC200..MA202406

12V 100A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-BZ220i2NRVE..NGC200..H..IDN;2NRVE..NGC200..LHD..H..GEN202306

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004B-37017i2NRVE..NGC200..H..IDN;2NRVE..NGC200..LHD..H..GEN202306

main9004C-37008i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

27330ROTOR ASSY, ALTERNATOR

main27330-B1050i2NRVE..NGC200..H..IDN;2NRVE..NGC200..LHD..H..GEN202306

main27330-BZ060i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B1020i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

27411PULLEY, ALTERNATOR

main27411-BZ100i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

27444PACKING, ALTERNATOR BEARING COVER

main27444-BZ010i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

27700AREGULATOR ASSY, GENERATOR

main27700-B2080i2NRVE..NGC200..M..IDN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..IDNP..(L,M)202306

8202WIRING & CLAMP

→ Go to FIG 82-02

9004120249

main90041-20249

9004A17219

main9004A-17219

90105T0130

main90105-T0130

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
