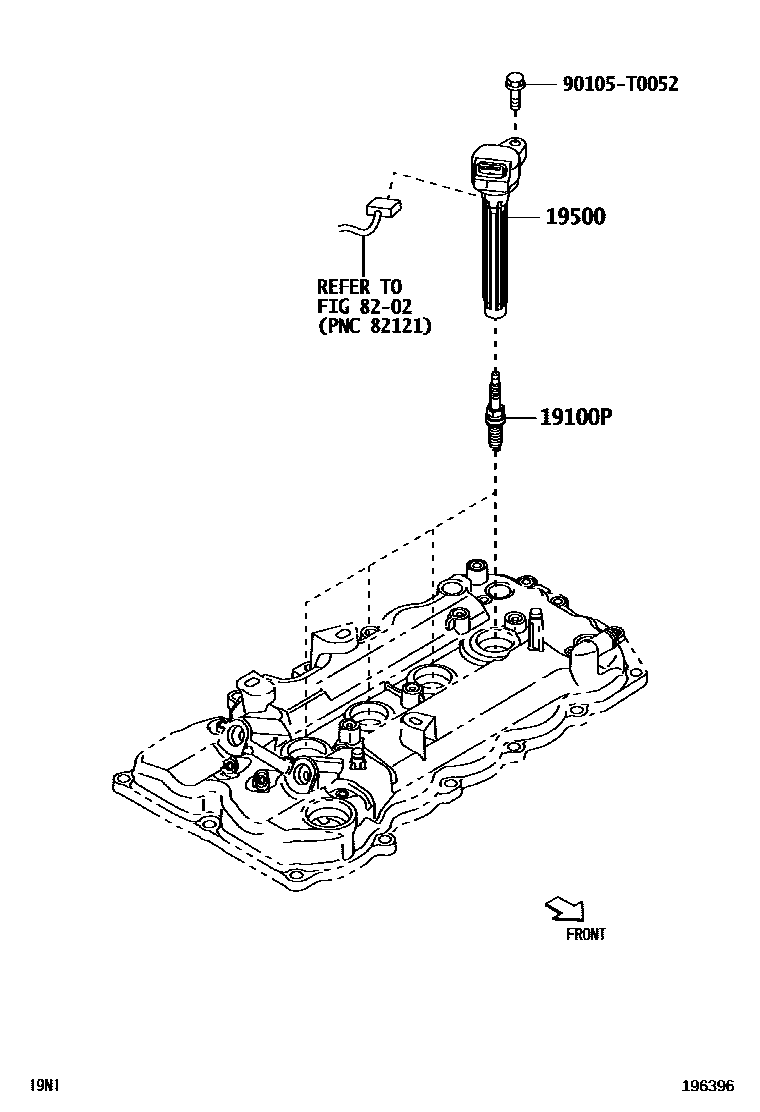

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main9004A-91068×4i2NRVE..NGC200..MA202406

SC16HR11

main90919-01275×4i2NRVE..NGC200..IDNP,TAIWP202306

SC16HR11

main90919-01289×4i2NRVEX..NYC200202306

FC16HR-Q8

19500COIL ASSY, IGNITION

main90919-T2010×4i2NR#..NGC200,NYC200..MA,TH202310

main90919-T2011×4i2NR#..NGC200,NYC200..IDNP,TAIWP202306

8202WIRING & CLAMP

→ Go to FIG 82-02

90105T0052

main90105-T0052

4 parts on this diagram · 1 diagram in section
