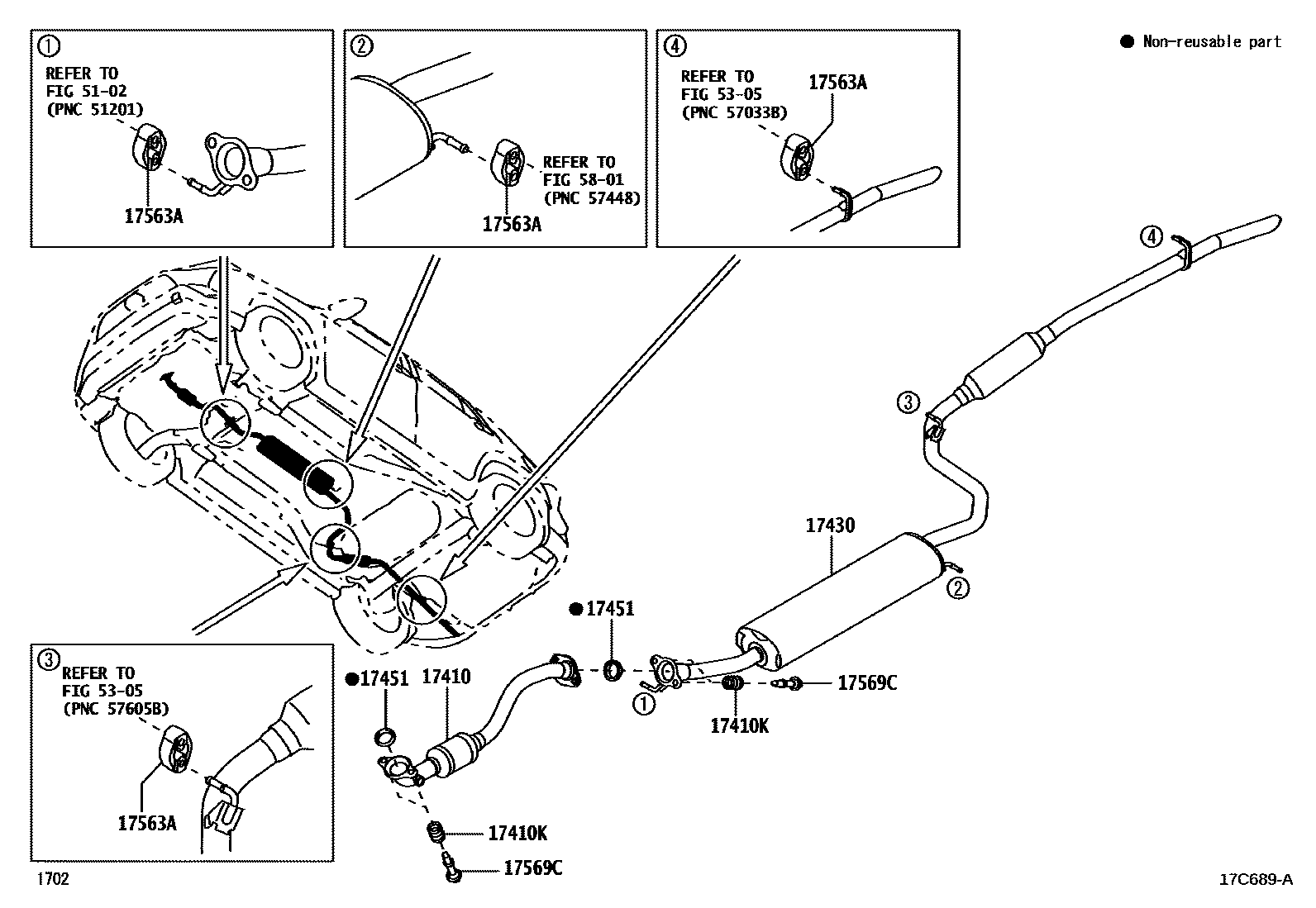

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZA50i202306

ID NO. = BZ220

main17410-BZB00i202306

ID NO. = BZ220; ID NO. = BZ220,DESTINATION PACKAGE(OTHER-LATIN LH GEN-EX; ID NO. = BZ220,DESTINATION PACKAGE(OTHER-PANAMA

main17410-BZE20i202306

ID NO. = BZ540

main17410-BZE60i202310

ID NO. = BZ580

main17410-BZE70i202406

main17410-BZE80i202310

ID NO. = BZ600

main17410-BZF00i202306

ID NO. = BZ220

main17410-BZF40i202406

main17410-BZA70i202306

ID NO. = BZ230,DESTINATION PACKAGE(OTHER-CHILE; ID NO. = BZ230,DESTINATION PACKAGE(OTHER-COSTA RICA; ID NO. = BZ230,VIETNAM

main17410-BZE30i202306

ID NO. = BZ550,BHUTAN; ID NO. = BZ550,DESTINATION PACKAGE(OTHER-CHILE; ID NO. = BZ550,DESTINATION PACKAGE(OTHER-COSTA RICA; ID NO. = BZ550,VIETNAM

main17410-BZF10i202306

ID NO. = BZ230,DESTINATION PACKAGE(OTHER-CHILE; ID NO. = BZ230,DESTINATION PACKAGE(OTHER-COSTA RICA

main17410-BZF20i202306

ID NO. = BZ220,DESTINATION PACKAGE(OTHER-LATIN LH GEN-EX

17410KSPRING, EXHAUST PIPE

main17152-BZ010×4i202306

main90501-35035×4i202310

main90501-T0020×4i202310

17430PIPE ASSY, EXHAUST, TAIL

main17430-BZ730i202306

main17430-BZ740i202306

main17430-BZ750i202306

main17430-BZ760i202310

main17430-BZ770i202406

main17430-BZ780i202406

main17430-BZ790i202310

main17430-BZA80i202403

VIETNAM

17451GASKET, EXHAUST PIPE

main17451-BZ110×2i202406

17563ASUPPORT, EXHAUST PIPE, NO.3

main17567-B2020×4i202306

main17567-BZ080×4i202406

main17567-BZ090×4i202310

17569CBOLT, EXHAUST PIPE SUPPORT

main90109-T0016×4i202406

THA SOURCED PARTS

main90901-05026×4i202406

JAPAN SOURCED PARTS

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01
