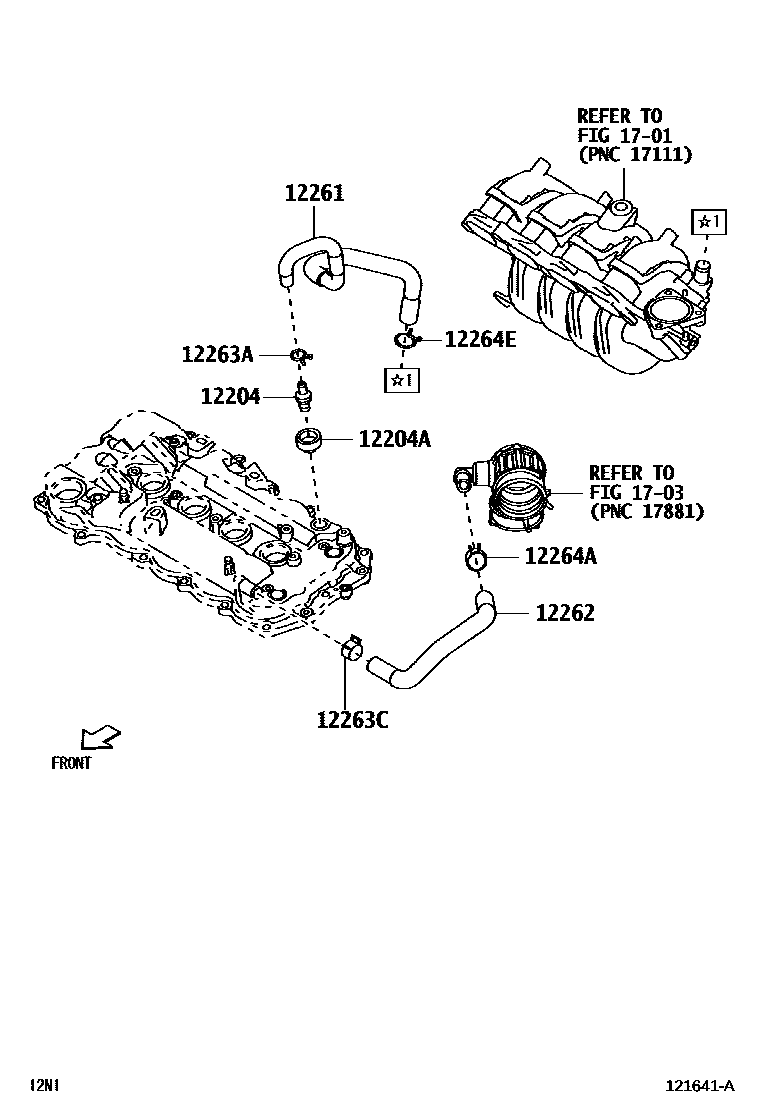

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0Y020i2NRVE..NGC200202306

main12204-BZ070i2NRVEX..NYC200202306

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-T0013i2NR#..NGC200,NYC200202306

12261HOSE, VENTILATION

main12261-BZ210i2NRVE..NGC200202306

main12261-BZ310i2NRVEX..NYC200202306

12262HOSE, VENTILATION, NO.2

main12262-BZ190i2NRVE..NGC200..IDNP202306

main12262-BZ220i2NRVEX..NYC200..IDNP,THP202306

12263ACLIP(FOR VENTILATION HOSE)

main90466-T0060i2NRVEX..NYC200..TH202310

main90466-T0061i2NR#..NGC200,NYC200..IDNP,MAP,TAIWP202306

12263CCLIP(FOR VENTILATION HOSE)

main90466-T0020i2NRVE..NGC200..MA202306

main90466-T0063i2NRVEX..NYC200..MA202306

12264ACLIP(FOR VENTILATION HOSE)

main90466-T0027i2NRVEX..NYC200..IDNP,THP202306

12264ECLIP(FOR VENTILATION HOSE)

main90466-T0032i2NRVEX..NYC200..TH202310

main90466-T0062i2NR#..NGC200,NYC200..IDNP,MAP,TAIWP202306

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

10 parts on this diagram · 2 diagrams in section
