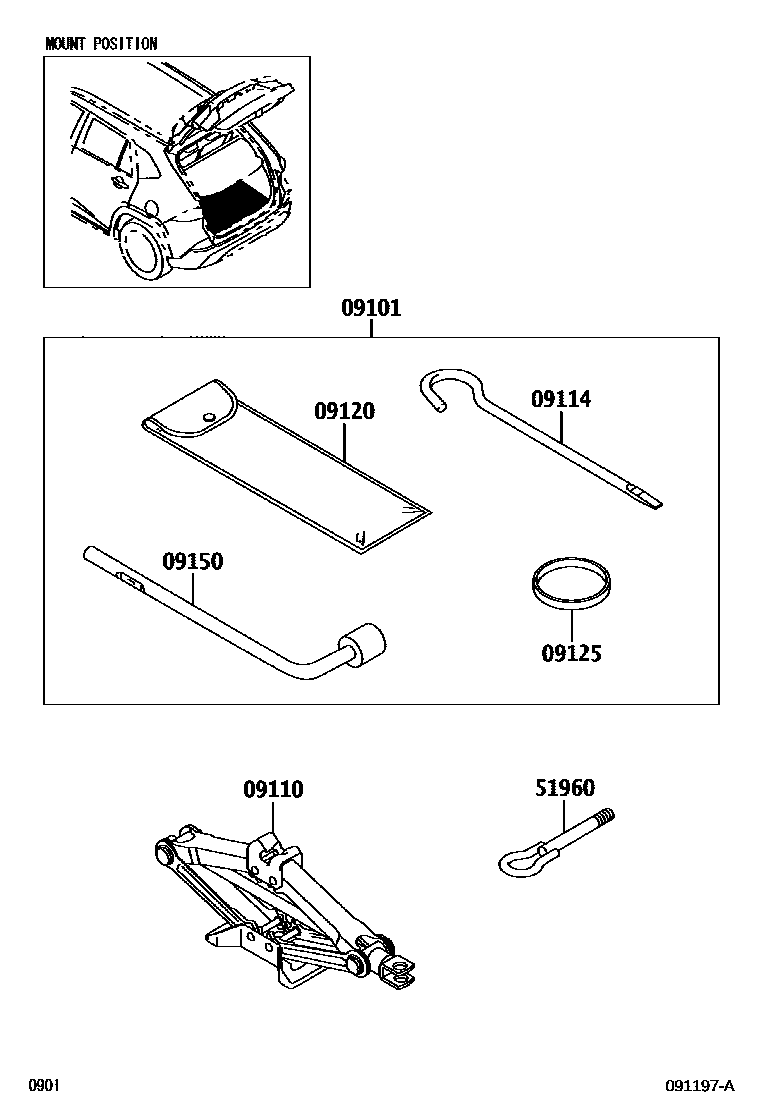

STANDARD TOOL

0001 1 0002 1 0003 1

09101TOOL SET, STANDARD W/O JACK

main09101-BZ260iNGC200,NYC200..IDNP202306

09110JACK ASSY

main09111-BZ201iNYC200..TH202310

main09111-BZ230iNGC200,NYC200..IDNP202306

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ060iNGC200,NYC200..IDNP,THP202306

main09114-BZ080iNGC200,NYC200..MA202406

09120BAG, TOOL

main09120-BZ180iNGC200,NYC200..IDNP202306

09125BAND, TOOL BAG

main09125-BZ010×2iNGC200,NYC200..IDNP202306

09150WRENCH, HUB NUT BOX

main09151-BZ010iNGC200,NYC200..IDNP,THP202306

main09151-BZ030iNGC200,NYC200..MA202406

51960HOOK ASSY, FRONT

main51960-BZ120iNGC200,NYC200..IDNP202306

main51960-BZ240iNGC200,NYC200..TAIW,TH202310

7 parts on this diagram · 3 diagrams in section
