WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1COWL WIRE 0004 1INSTRUMENT PANEL WIRE 0005 1DOOR & ROOF WIRE 0006 1FLOOR & LUGGAGE WIRE 0007 1CABLE BOND

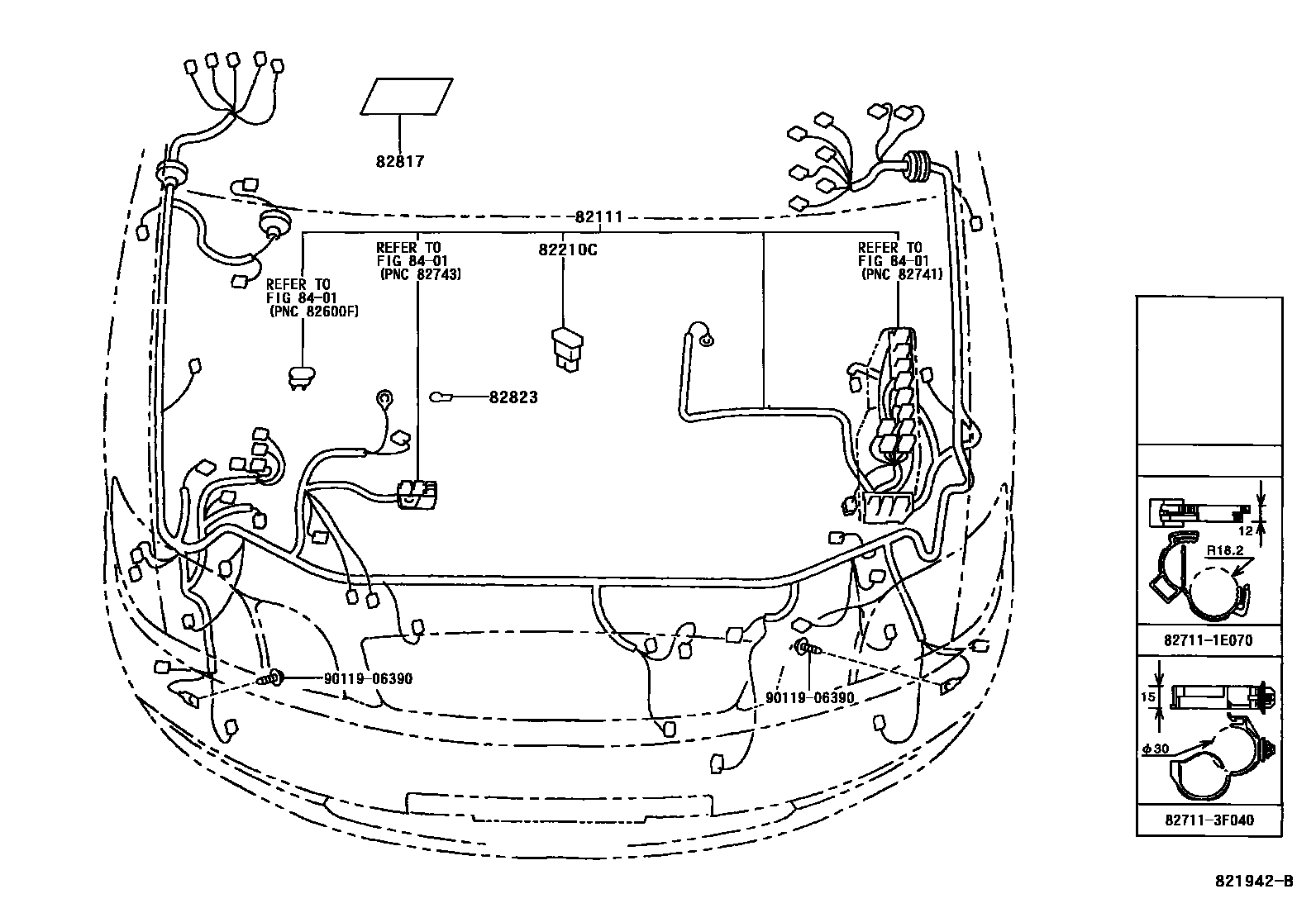

82111WIRE, ENGINE ROOM MAIN

main82111-44620iSXM10199908

82210CFUSIBLE LINK

main90982-08202iSXM10199908

60A,TERM.:MALE,YEL

main90982-08254iSXM10199908

120A,TERM.:MALE,WHT

main90982-08283×2iSXM10199908

30A,TERM.:FEMALE,PNK

main90982-08284iSXM10199908

40A,TERM.:FEMALE,GRN

main90982-08285iSXM10199908

50A,FEMALE,RED,32VDC

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-95702iSXM10199908

82823CAP, TERMINAL, NO.1

main82823-22050iSXM10199908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F040

9011906390

main90119-06390

8 parts on this diagram · 7 diagrams in section
