CENTER STOP LAMP

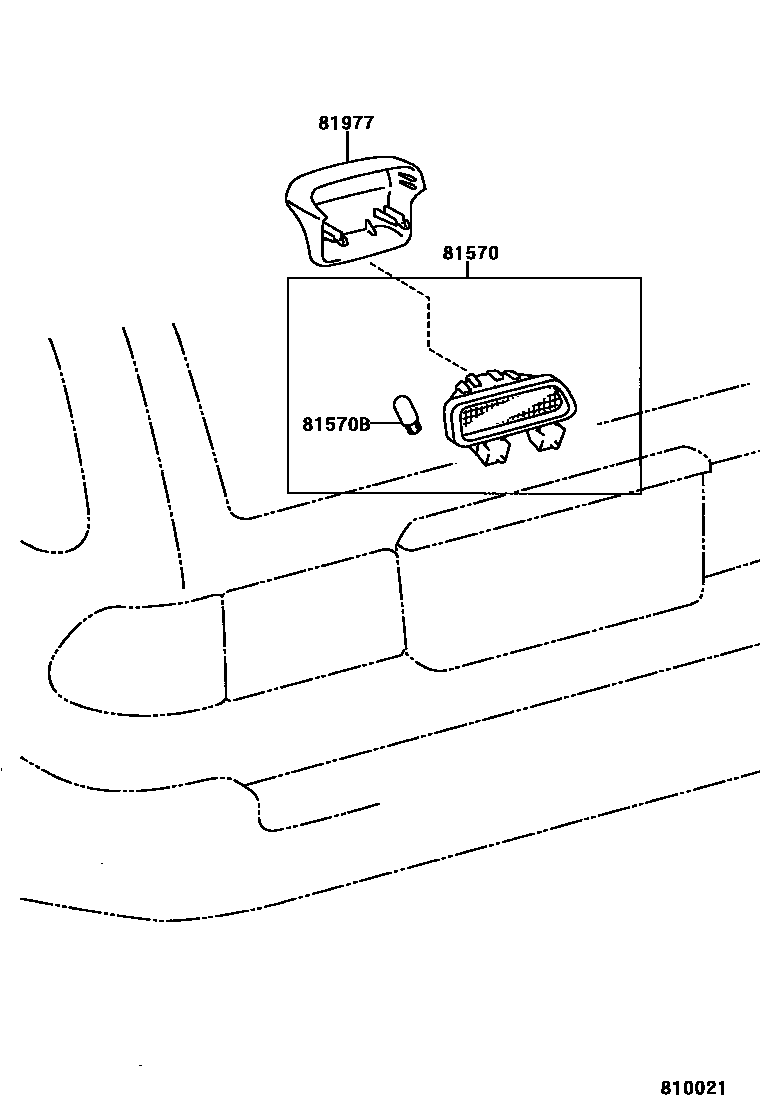

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-44010i199908

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043i199908

12V 21W

81977COVER, CENTER STOP LAMP

main81977-44010i199908

3 parts on this diagram · 1 diagram in section
