Toyota 151330 — REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580ALAMP ASSY, REAR
81580BBULB (FOR REAR LAMP)
81585SOCKET & WIRE, REAR LAMP
81590ALAMP ASSY, REAR, LH
9017905011

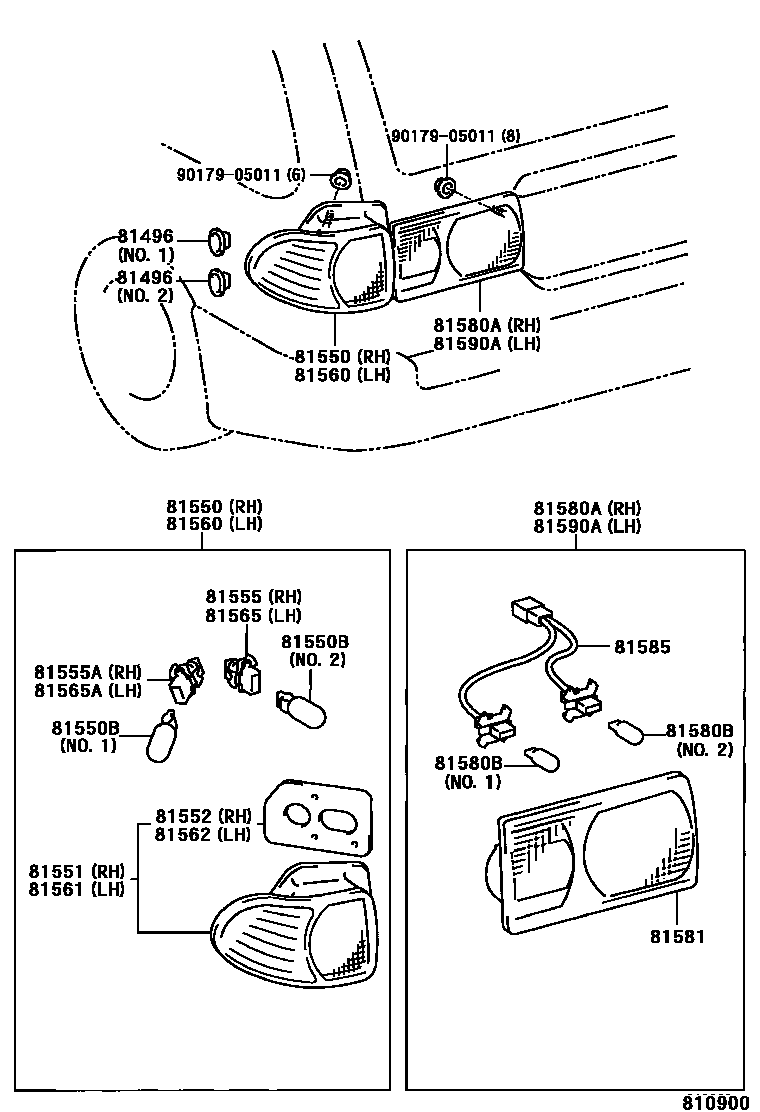

18 parts on this diagram · 1 diagram in section
REAR COMBINATION LAMP for Toyota 151330
This section contains 18 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 151330. Key components include: GUIDE, REAR COMBINATION LAMP, LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP LENS, RH.
