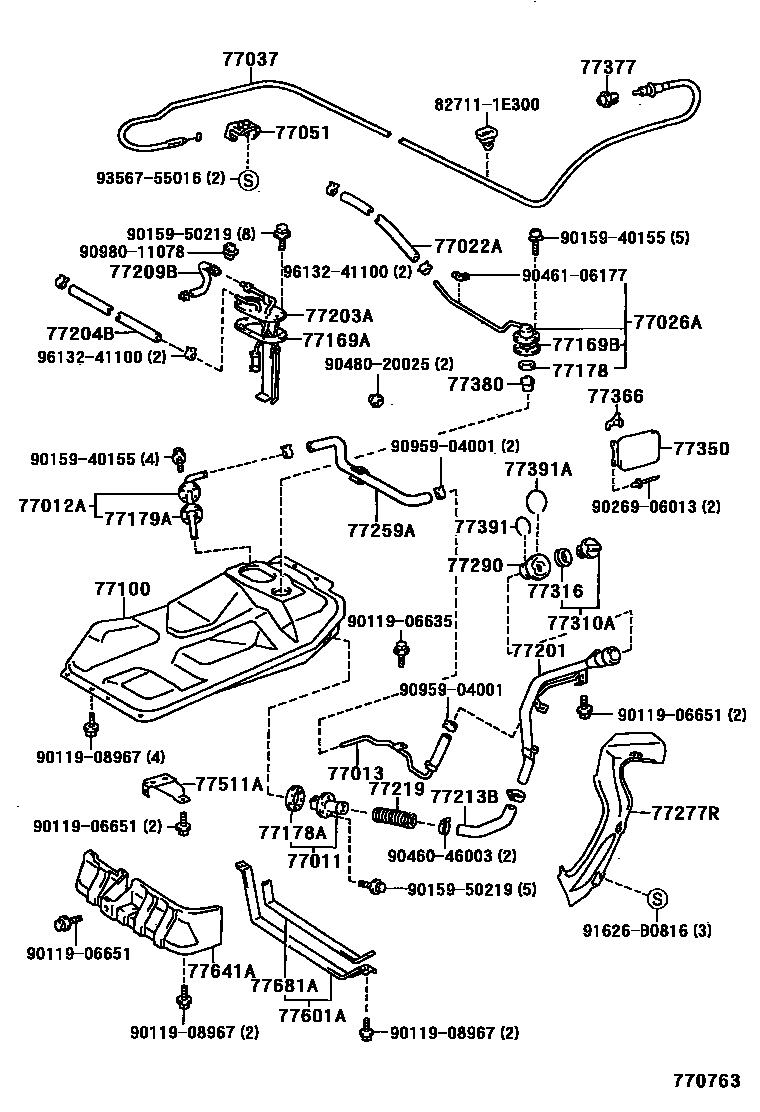

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
*H,L=500
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051LEVER SUB-ASSY, FUEL LID OPEN
MD.MOON MIST,TRIM1#
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77178AGASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77204BHOSE, FUEL(FOR FUEL RETURN)
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77259AHOSE, FUEL(FOR BREATHER TUBE)
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77681ASEAT, FUEL TANK BAND
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
9011906635
main90119-06635
9011906651
main90119-06651
9011908967
main90119-08967
9015940155
main90159-40155
9015950219
main90159-50219
9026906013
main90269-06013
9046046003
main90460-46003
9046106177
main90461-06177
9048020025
main90480-20025
9095904001
main90959-04001
9098011078
main90980-11078
91626B0816
main91626-B0816
9356755016
main93567-55016
9613241100
main96132-41100
49 parts on this diagram · 2 diagrams in section
