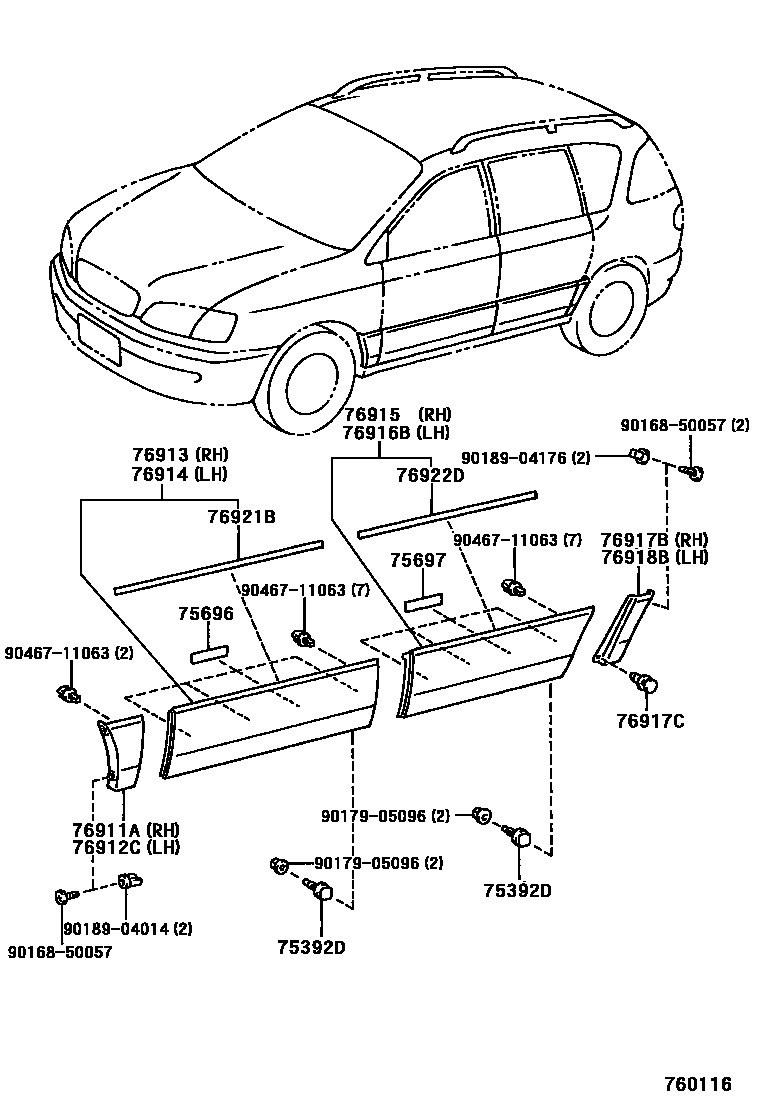

MUDGUARD & SPOILER
75392DRETAINER, OUTSIDE MOULDING
75696PAD, BODY OUTSIDE MOULDING, NO.1
75697PAD, BODY OUTSIDE MOULDING, NO.2
76911AMUDGUARD, FENDER PANEL, RH
SILVER ME.,TRIM1#&199 ,8K5 ,8N2
SILVER ME,199 ,765 ,8K5
YELLOW SILVER,TRIM12&057 ,3J8 ,760
YELLOW SILVER,057 ,3J8 ,760
76912CMUDGUARD, FENDER PANEL, LH
SILVER ME.,TRIM1#&199 ,8K5 ,8N2
SILVER ME,199 ,765 ,8K5
YELLOW SILVER,057 ,3J8 ,760
YELLOW SILVER,057 ,3J8 ,760
76913MUDGUARD, FRONT DOOR, RH
76914MUDGUARD, FRONT DOOR, LH
76915MUDGUARD, REAR DOOR, RH
76916BMUDGUARD, REAR DOOR, LH
76917BMUDGUARD, QUARTER PANEL, RH
76917CCLIP, QUARTER PANEL MUDGUARD
76918BMUDGUARD, QUARTER PANEL, LH
76921BPROTECTOR, SIDE MUDGUARD, NO.1
76922DPROTECTOR, SIDE MUDGUARD, NO.2
9016850057
main90168-50057
9017905096
main90179-05096
9018904014
main90189-04014
9018904176
main90189-04176
9046711063
main90467-11063
19 parts on this diagram · 1 diagram in section
