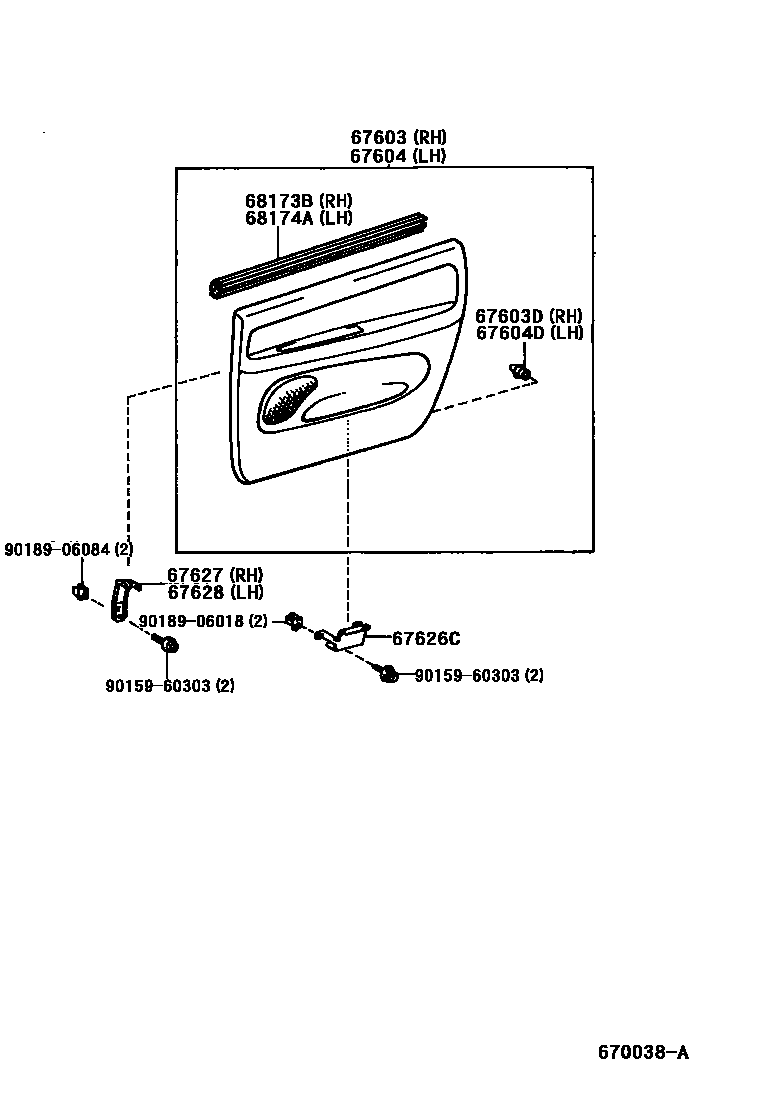

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-44032-B2iSXM10199908

MEDIUM MOON MIST,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-28020×9iSXM10200010

main90467-09208×9iSXM10199908-200010

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-44032-B2iSXM10199908

MEDIUM MOON MIST,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-28020×9iSXM10200010

main90467-09208×9iSXM10199908-200010

67626CBRACKET, REAR DOOR TRIM, NO.2

main67625-44010×2iSXM10199908

67627BRACKET, REAR DOOR TRIM, RH

main67643-44010iSXM10199908

67628BRACKET, REAR DOOR TRIM, LH

main67644-44010iSXM10199908

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-44010iSXM10199908

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-44010iSXM10199908

9015960303

main90159-60303

9018906018

main90189-06018

9018906084

main90189-06084

12 parts on this diagram · 2 diagrams in section
