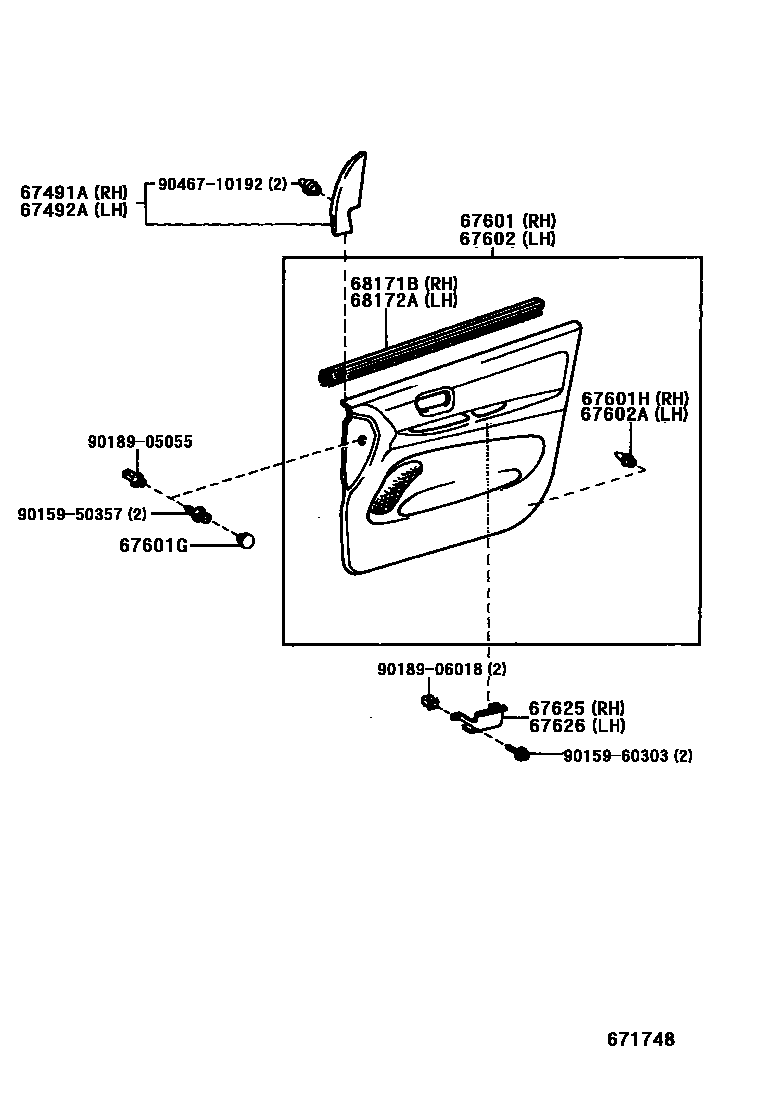

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-44010iSXM10199908

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-44010iSXM10199908

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-44022-B2iSXM10199908

MEDIUM MOON MIST,TRIM1#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B3×2iSXM10199908

MD.MOON MIST,TRIM1#

67601HRETAINER, DOOR TRIM, RH

main67771-28020×6iSXM10200010

RED

main90467-09208×8iSXM10199908-200010

main90467-10156×2iSXM10200010

WHITE

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-44022-B2iSXM10199908

MEDIUM MOON MIST,TRIM1#

67602ARETAINER, DOOR TRIM, LH

main67771-28020×6iSXM10200010

RED

main90467-09208×8iSXM10199908-200010

main90467-10156×2iSXM10200010

WHITE

67625BRACKET, FRONT DOOR TRIM, RH

main67625-44010iSXM10199908

67626BRACKET, FRONT DOOR TRIM, LH

main67625-44010iSXM10199908

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-44010iSXM10199908

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-44010iSXM10199908

9015950357

main90159-50357

9015960303

main90159-60303

9018905055

main90189-05055

9018906018

main90189-06018

9046710192

main90467-10192

16 parts on this diagram · 2 diagrams in section
