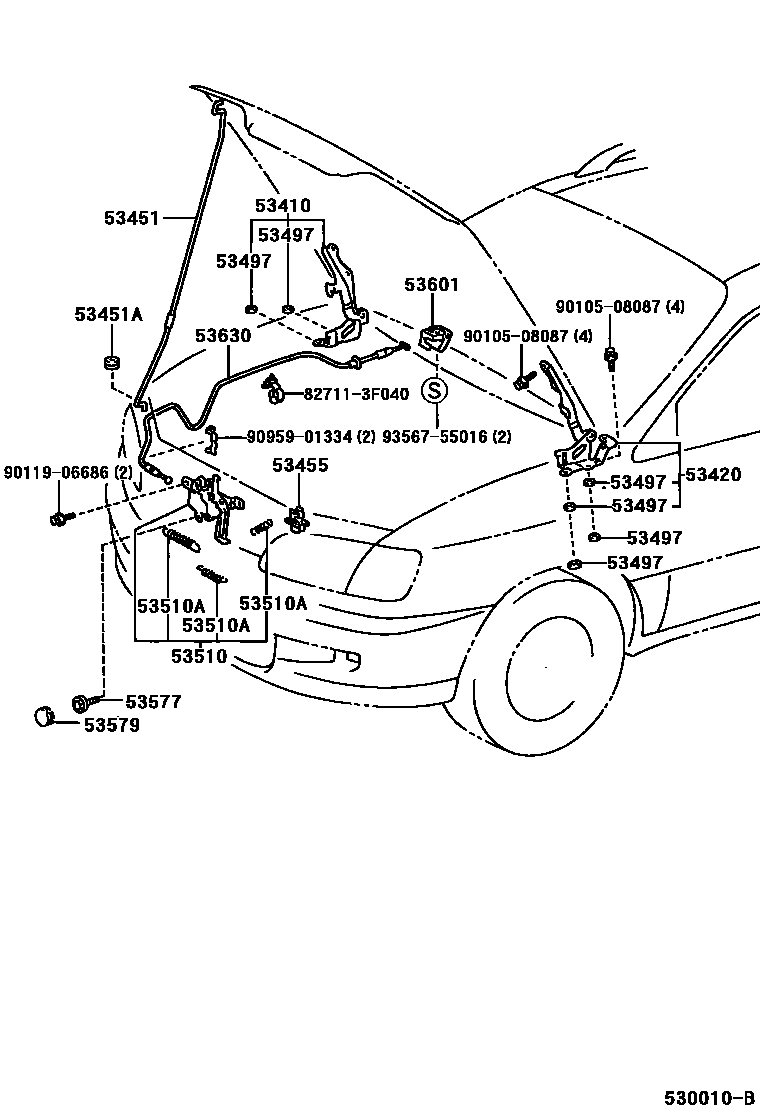

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-44010iSXM10199908

53420HINGE ASSY, HOOD, LH

main53420-44010iSXM10199908

53451ROD, HOOD SUPPORT

main53451-44020iSXM10199908

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15032iSXM10199908

53455CLAMP, HOOD SUPPORT ROD

main53455-44010iSXM10199908

53497PAD, HOOD HINGE, NO.1

main53497-12050×4iSXM10199908

T=1.0

53510LOCK ASSY, HOOD

main53510-44010iSXM10199908

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057iSXM10199908

WD=0.9,CW=23

main90506-12067iSXM10199908

WD=1.4,CW=7.25

main90506-20065iSXM10199908

WD=2.0,CW=16.0

53577BOLT, HOOD LOCK

main53577-44010iSXM10199908

53579CAP, HOOD LOCK NUT

main53579-50010iSXM10199908

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-44010-C0iSXM10199908

BLACK,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-44030iSXM10199908

827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F040

9010508087

main90105-08087

9011906686

main90119-06686

9095901334

main90959-01334

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
