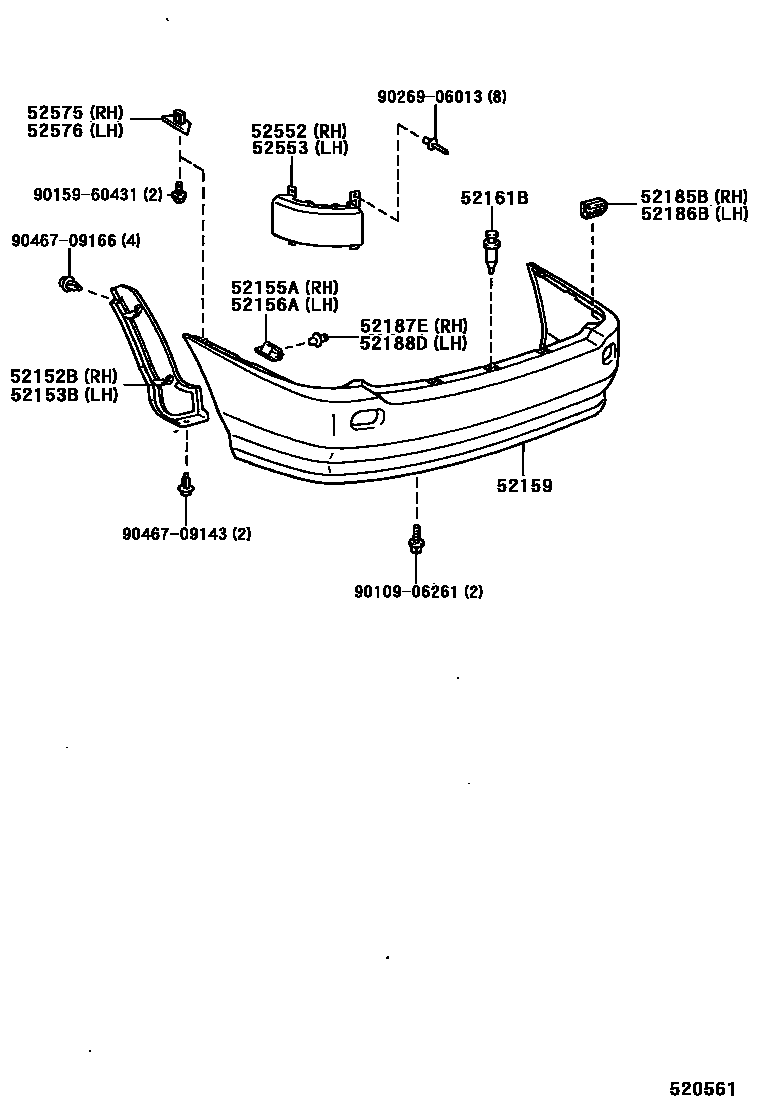

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
MOON GRAY,057 ,199 ,3J8 ,760 ,8K5 ,8N2
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188DGUIDE, REAR BUMPER LOCATION, LH
52552FILLER, REAR BUMPER, RH
52553FILLER, REAR BUMPER, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
9010906261
main90109-06261
9015960431
main90159-60431
9026906013
main90269-06013
9046709143
main90467-09143
9046709166
main90467-09166
19 parts on this diagram · 1 diagram in section
