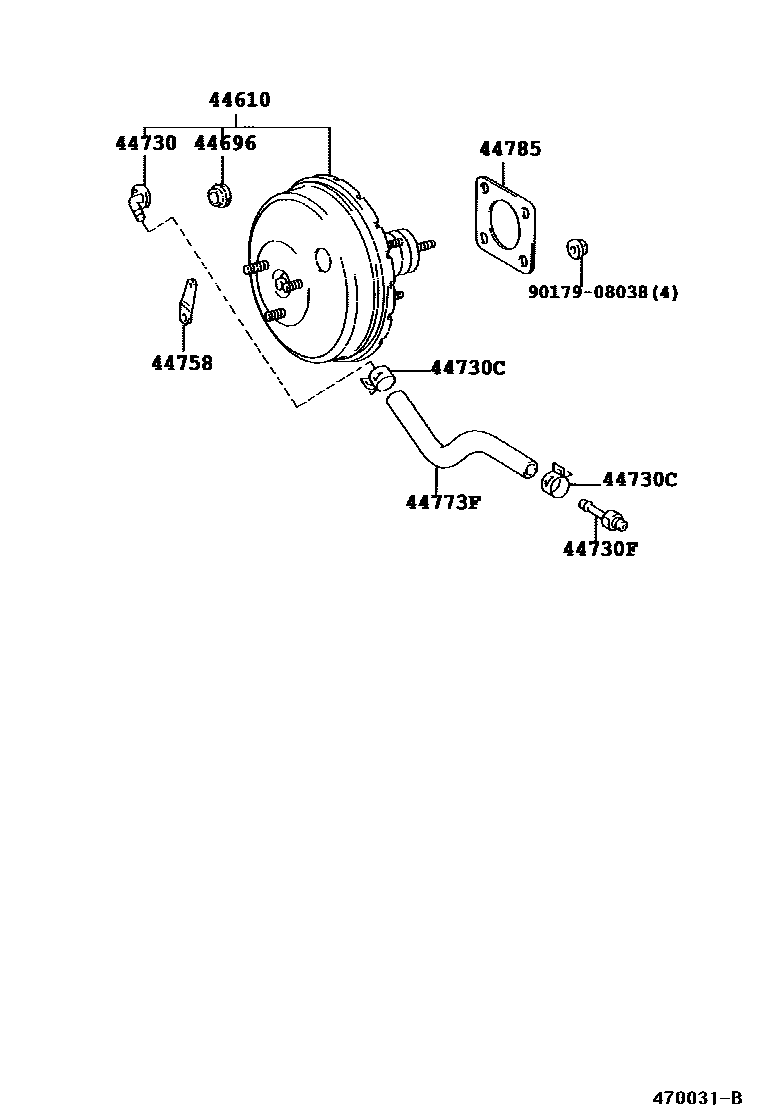

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-44060iSXM10199908

44696GROMMET, CHECK VALVE

main90480-24439iSXM10199908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSXM10199908

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×2iSXM10199908

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iSXM10199908

44758BRACKET, VACUUM CHECK VALVE

main44758-44020iSXM10199908

44773FHOSE, UNION TO CHECK VALVE

main44773-44010iSXM10199908

44785GASKET, BRAKE BOOSTER

main44785-20020iSXM10199908

9017908038

main90179-08038

9 parts on this diagram · 1 diagram in section
