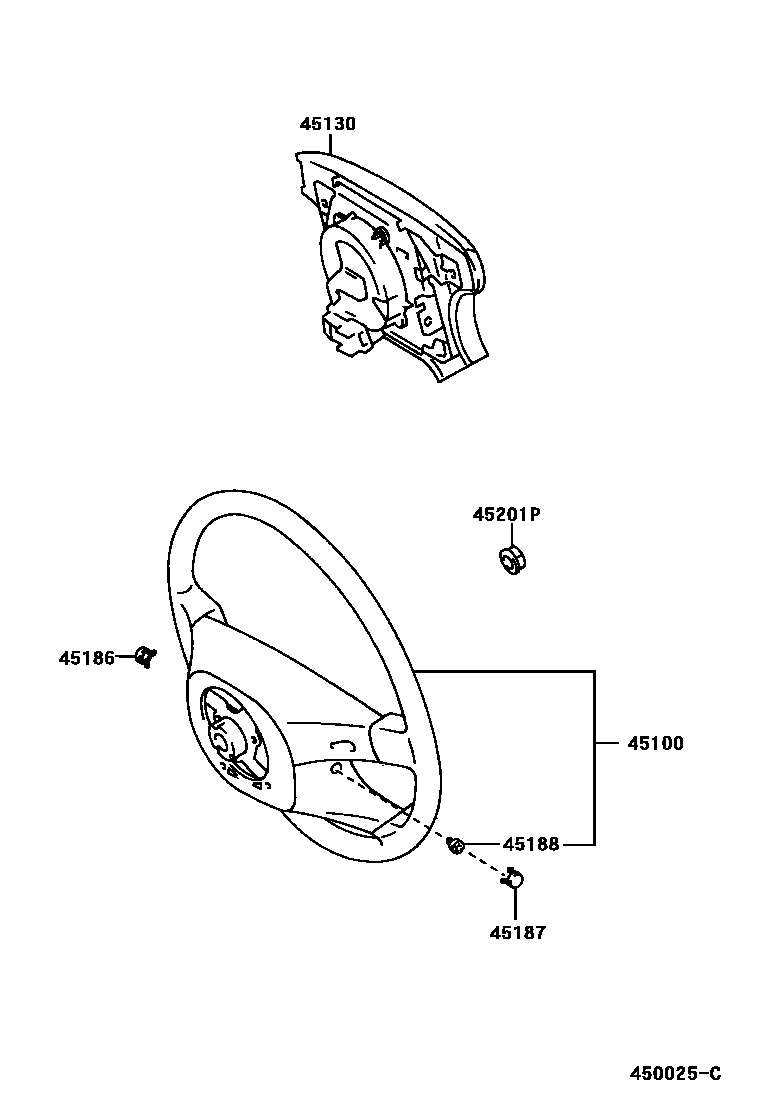

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-32310-B1iSXM10199908

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

45130BUTTON ASSY, HORN

main45130-44030-B0iSXM10199908-200105

MD.MOON MIST,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B1iSXM10199908

MD.MOON MIST,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-44010-B1iSXM10199908

MD.MOON MIST,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iSXM10199908

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iSXM10199908

6 parts on this diagram · 1 diagram in section
