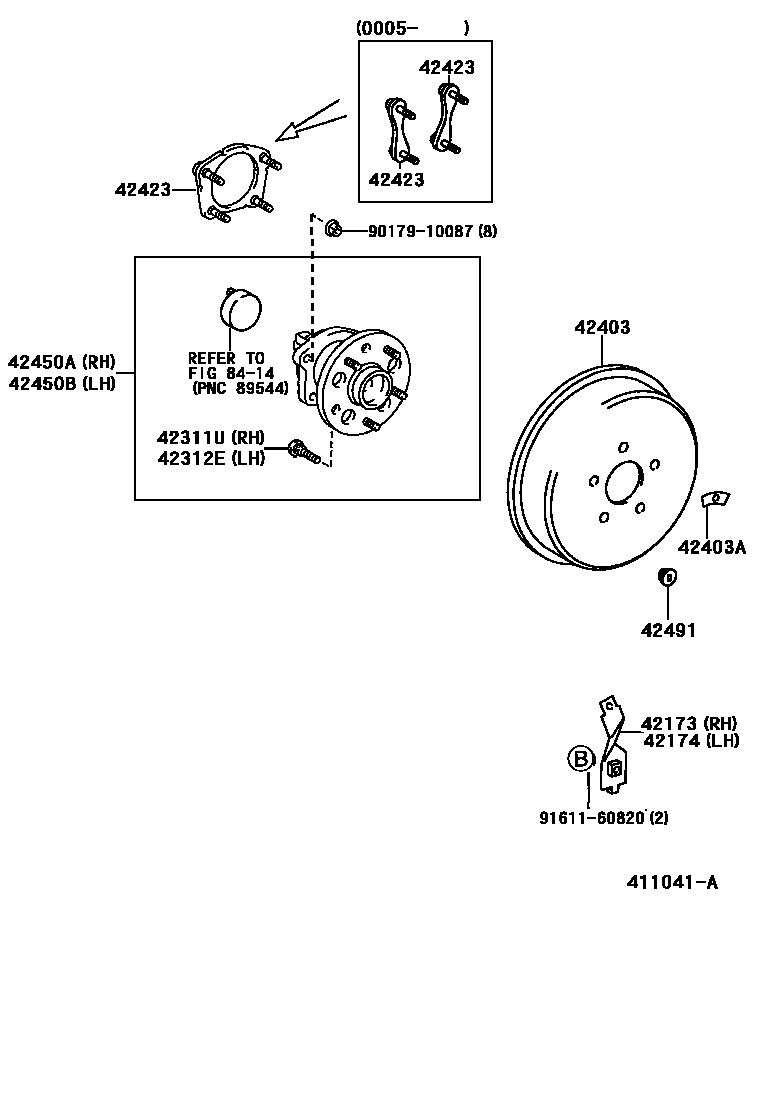

REAR AXLE SHAFT & HUB

42173BRACKET, REAR AXLE HARNESS, RH

main42173-44010iSXM10199908

42174BRACKET, REAR AXLE HARNESS, LH

main42174-44010iSXM10199908

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070×5iSXM10199908

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070×5iSXM10199908

42403DRUM SUB-ASSY, REAR BRAKE

main42431-44010×2iSXM10199908

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01287iSXM10199908

10G

main90937-01288iSXM10199908

20G

main90937-01289iSXM10199908

30G

42423RETAINER, REAR AXLE BEARING, INNER

main42423-28010×4iSXM10200005

main42423-44010×2iSXM10199908-200005

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-44010iSXM10199908

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-44010iSXM10199908

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010×2iSXM10199908

8414ABS & VSC

→ Go to FIG 84-14

9017910087

main90179-10087

9161160820

main91611-60820

13 parts on this diagram · 1 diagram in section
