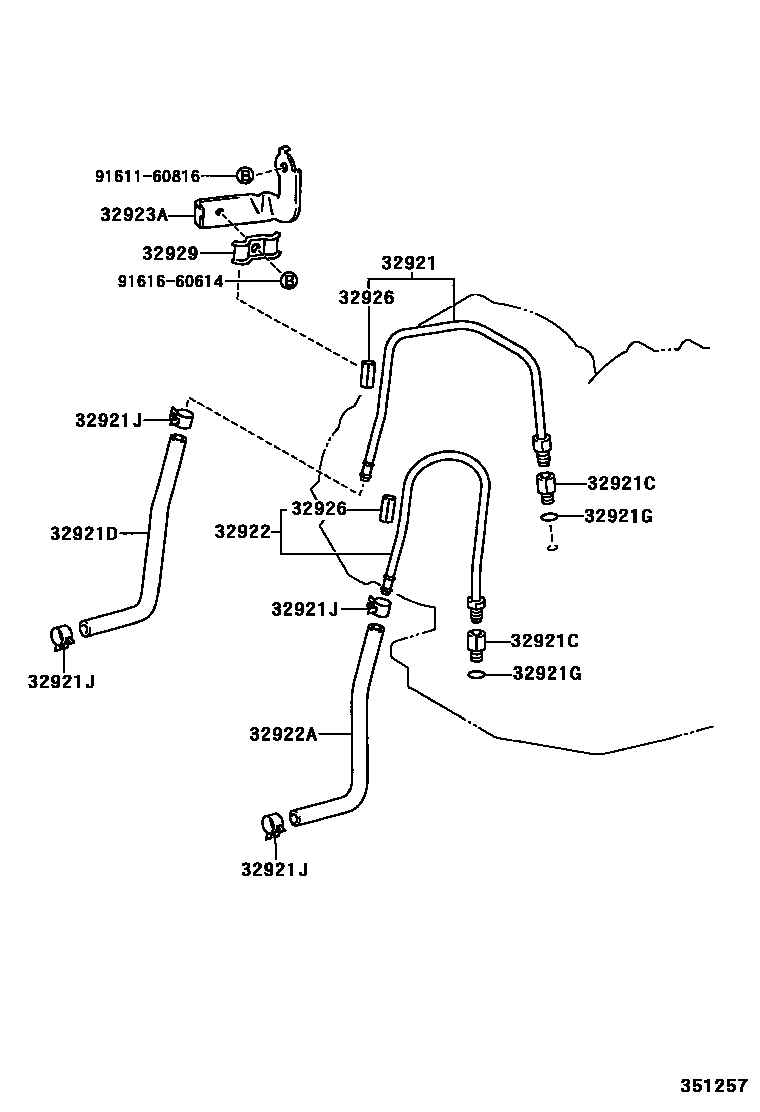

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-44070iSXM10199908

32921CUNION(FOR OIL COOLER TUBE)

main90404-16032×2iSXM10199908

32921DHOSE(FOR OIL COOLER INLET)

main90445-17117iSXM10199908

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iSXM10199908

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iSXM10199908

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-44060iSXM10199908

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iSXM10199908

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-44020iSXM10199908

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×2iSXM10199908

L=25,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main90462-12074iSXM10199908

9161160816

main91611-60816

9161660614

main91616-60614

12 parts on this diagram · 1 diagram in section
