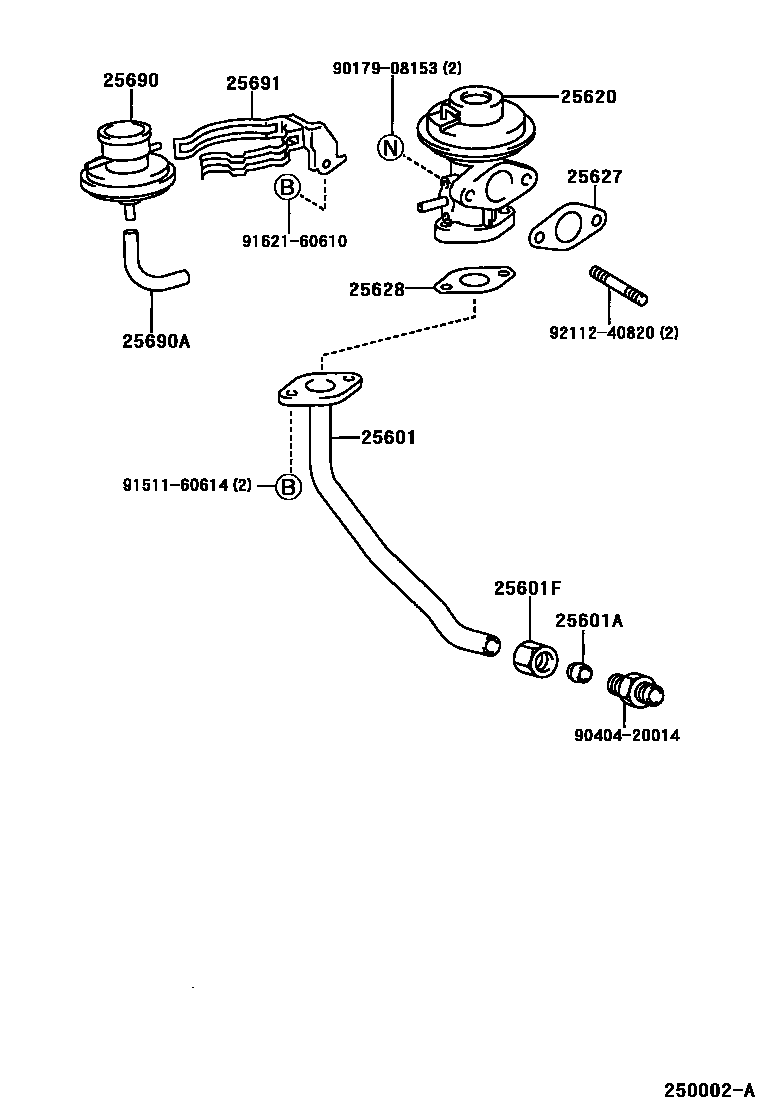

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25611-74060i3SFE..SXM10199908

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3SFE..SXM10199908

25601FUNION(FOR EGR PIPE, NO.1)

main90402-20073i3SFE..SXM10199908

25620VALVE ASSY, EGR

main25620-74330i3SFE..SXM10199908

25627GASKET, EGR VALVE

main25627-74011i3SFE..SXM10199908

25628GASKET, EGR INLET

main25628-74010i3SFE..SXM10199908

25690MODULATOR ASSY, EGR VACUUM

main25870-74110i3SFE..SXM10199908

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-74040i3SFE..SXM10199908

25691BRACKET, EGR VACUUM MODULATOR

main25691-74090i3SFE..SXM10199908

9017908153

main90179-08153

9040420014

main90404-20014

9151160614

main91511-60614

9162160610

main91621-60610

9211240820

main92112-40820

14 parts on this diagram · 1 diagram in section
