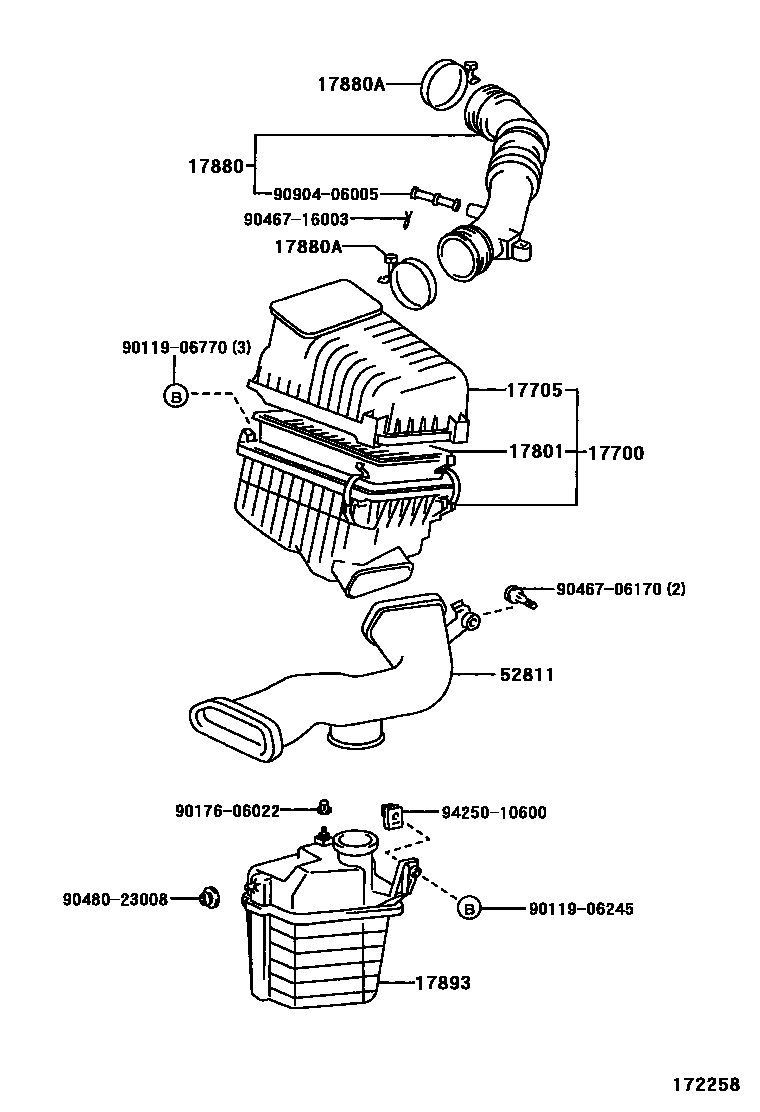

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-74581i3SFE..SXM10199908

17705CAP SUB-ASSY, AIR CLEANER

main17705-74411i3SFE..SXM10199908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i3SFE..SXM10199908

17880HOSE ASSY, AIR CLEANER

main17880-74621i3SFE..SXM10199908

17880ACLAMP, HOSE

main96111-10710×2i3SFE..SXM10199908

17893RESONATOR, INTAKE AIR

main17893-16130i3SFE..SXM10199908

52811DUCT, COOL AIR INTAKE, NO.1

main52811-44050iSXM10199908

9011906245

main90119-06245

9011906770

main90119-06770

9017606022

main90176-06022

9046706170

main90467-06170

9046716003

main90467-16003

9048023008

main90480-23008

9090406005

main90904-06005

9425010600

main94250-10600

15 parts on this diagram · 1 diagram in section
