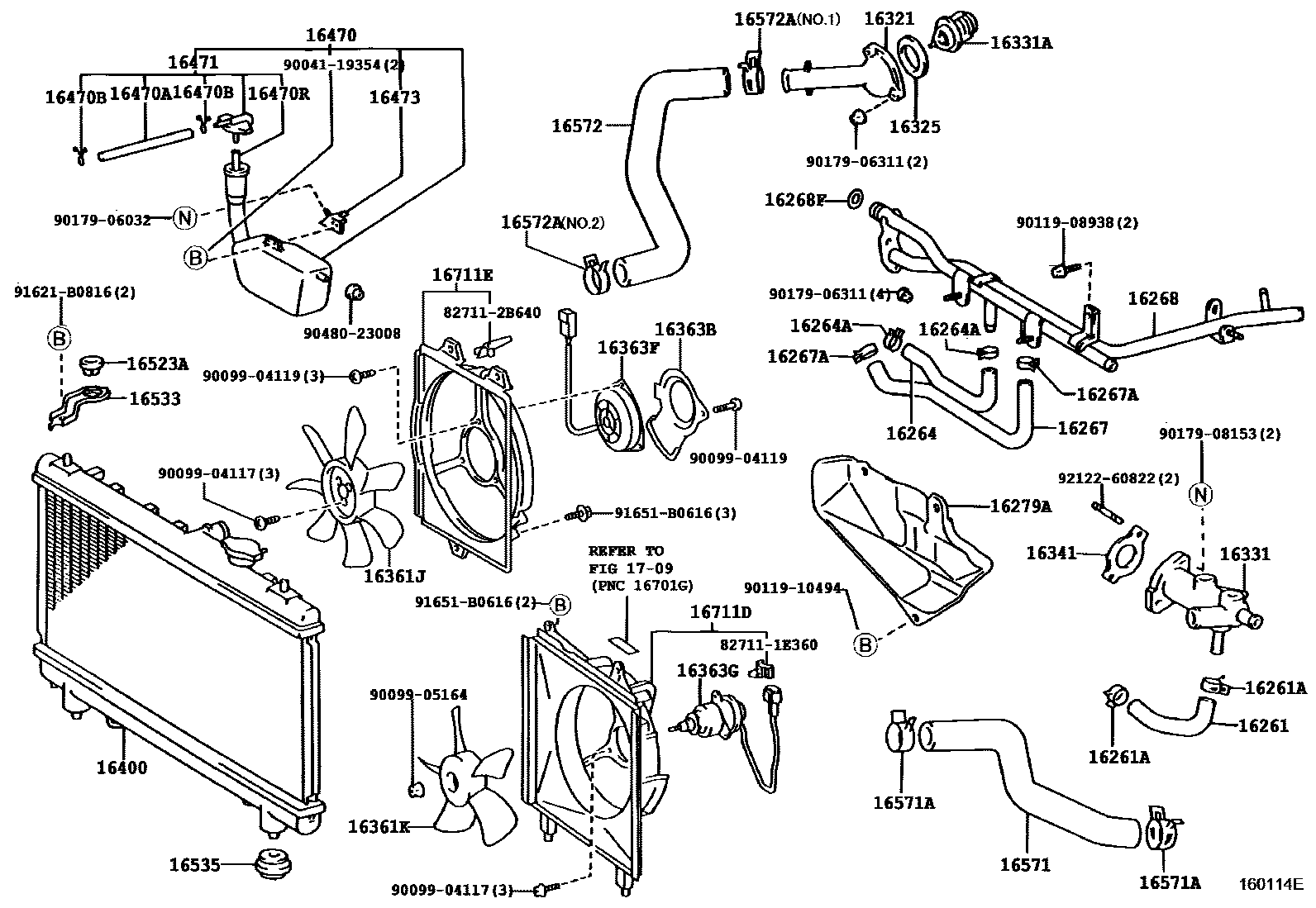

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub90467-21010
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96134-41900
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96134-41900
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16279APROTECTOR, HOSE HEAT
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16341GASKET, WATER OUTLET
16361JFAN, RH
16361KFAN, LH
16363BCOVER, COOLING FAN MOTOR
16363FMOTOR, COOLING FAN, RH
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=105)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=315
16471CAP SUB-ASSY, RESERVE TANK
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
16711DSHROUD, FAN, LH
16711ESHROUD, FAN, RH
1709
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B640
9004119354
main90041-19354
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9011908938
main90119-08938
9011910494
main90119-10494
9017906032
main90179-06032
9017906311
main90179-06311
9017908153
main90179-08153
9048023008
main90480-23008
91621B0816
main91621-B0816
91651B0616
main91651-B0616
9212260822
main92122-60822
51 parts on this diagram · 2 diagrams in section
