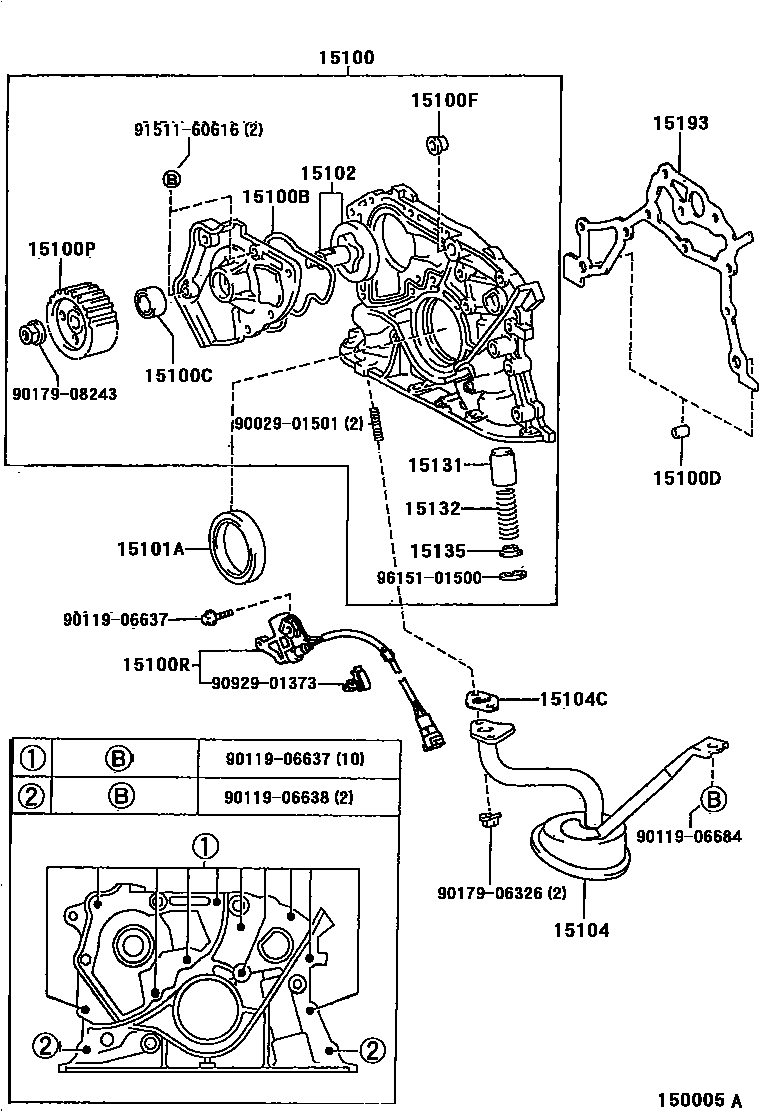

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-74050i3SFE..SXM10199908

15100BRING, O(FOR OIL PUMP)

main15188-74050i3SFE..SXM10199908

15100CSEAL(FOR OIL PUMP)

main15165-74020i3SFE..SXM10199908

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i3SFE..SXM10199908

15100FBUSH (FOR OIL PUMP)

main90029-38302i3SFE..SXM10199908

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-74020i3SFE..SXM10199908

15100RSENSOR, CRANK POSITION

main90919-05017i3SFE..SXM10199908

15101ASEAL(FOR CRANKSHAFT)

main90311-42035i3SFE..SXM10199908

15102ROTOR SET, OIL PUMP

main15102-63010i3SFE..SXM10199908

15104STRAINER SUB-ASSY, OIL

main15104-74090i3SFE..SXM10199908

15104CGASKET(FOR OIL STRAINER)

main15149-74030i3SFE..SXM10199908

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE..SXM10199908

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE..SXM10199908

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3SFE..SXM10199908

15193GASKET, OIL PUMP

main15197-74040i3SFE..SXM10199908

9002901501

main90029-01501

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906326

main90179-06326

9017908243

main90179-08243

9092901373

main90929-01373

9151160616

main91511-60616

9615101500

main96151-01500

24 parts on this diagram · 1 diagram in section
