MOUNTING

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-74130i3SFE..SXM10199908

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-74170i3SFE..SXM10199908

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-74140i3SFE..SXM10199908

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-74140i3SFE..SXM10199908

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-74440i3SFE..SXM10199908

12351DAMPER, ENGINE MOUNTING

main12351-64020i3SFE..SXM10199908

NO.1

main12351-74100i3SFE..SXM10199908

NO.2

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-16290i3SFE..SXM10199908

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-74480i3SFE..SXM10199908

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-74500i3SFE..SXM10199908

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-16351i3SFE..SXM10199908

12511BRACKET, ALTERNATOR, NO.1

main12511-74051i3SFE..SXM10199908

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74051i3SFE..SXM10199908

9010508094

main90105-08094

9010510051

main90105-10051

9010510301

main90105-10301

9010510348

main90105-10348

9010510384

main90105-10384

9010510409

main90105-10409

9010512155

main90105-12155

9011610184

main90116-10184

9011908A37

main90119-08A37

9011910519

main90119-10519

9011910599

main90119-10599

9011910728

main90119-10728

9011910821

main90119-10821

9011910866

main90119-10866

9017906007

main90179-06007

9017910098

main90179-10098

9017910154

main90179-10154

9017910169

main90179-10169

9017910206

main90179-10206

9020108011

main90201-08011

9033330002

main90333-30002

9162160845

main91621-60845

91651G1028

main91651-G1028

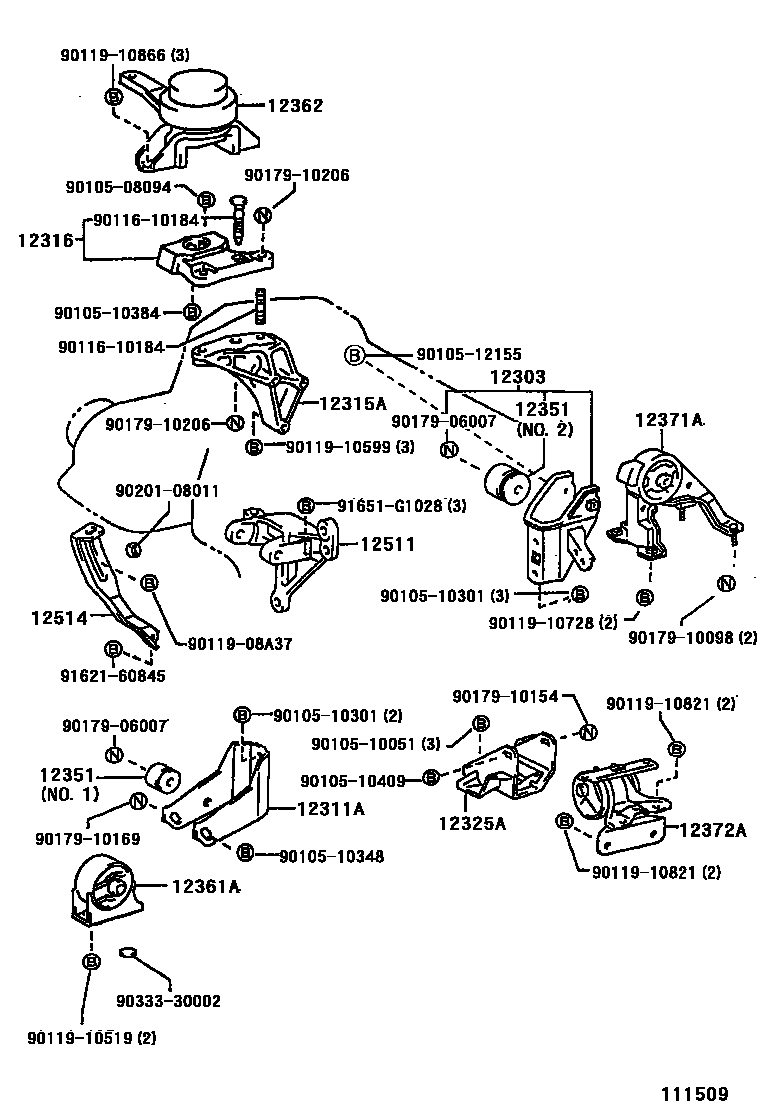

35 parts on this diagram · 1 diagram in section
