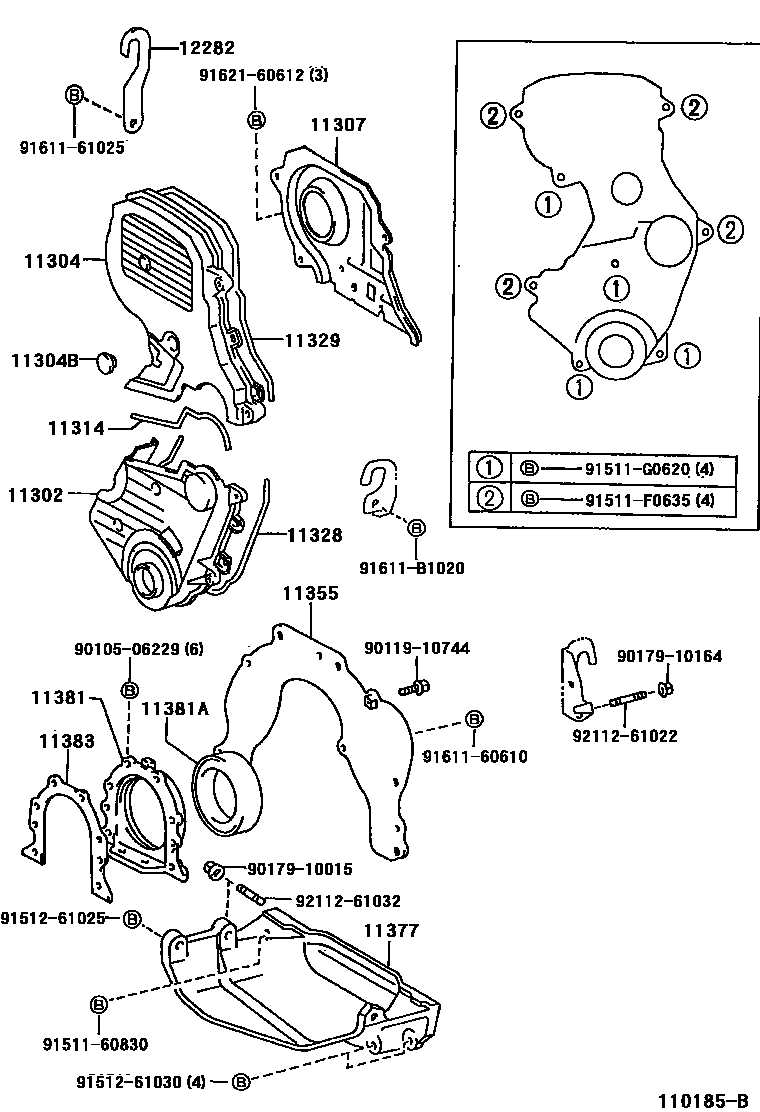

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74040i3SFE..SXM10199908

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74050i3SFE..SXM10199908

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01489i3SFE..SXM10199908

OD=33

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-74060i3SFE..SXM10199908

11314GASKET, TIMING CHAIN NO.2 COVER

main11319-74030i3SFE..SXM10199908

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-74060i3SFE..SXM10199908

11329GASKET, TIMING GEAR REAR COVER

main11329-74080i3SFE..SXM10199908

11355PLATE, REAR END

main11355-74010i3SFE..SXM10199908

11377STIFFENER, REAR END PLATE

main11377-74030i3SFE..SXM10199908

11381RETAINER, ENGINE REAR OIL SEAL

main11381-63012i3SFE..SXM10199908

11381ASEAL, ENGINE REAR OIL

main90311-85008i3SFE..SXM10199908

NOK

main90311-85009i3SFE..SXM10199908

ARS

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-74021i3SFE..SXM10199908

12282HANGER, ENGINE, NO.2

main12282-74030i3SFE..SXM10199908

9010506229

main90105-06229

9011910744

main90119-10744

9017910015

main90179-10015

9017910164

main90179-10164

9151160830

main91511-60830

91511F0635

main91511-F0635

91511G0620

main91511-G0620

9151261025

main91512-61025

9151261030

main91512-61030

9161160610

main91611-60610

9161161025

main91611-61025

91611B1020

main91611-B1020

9162160612

main91621-60612

9211261022

main92112-61022

9211261032

main92112-61032

28 parts on this diagram · 1 diagram in section
