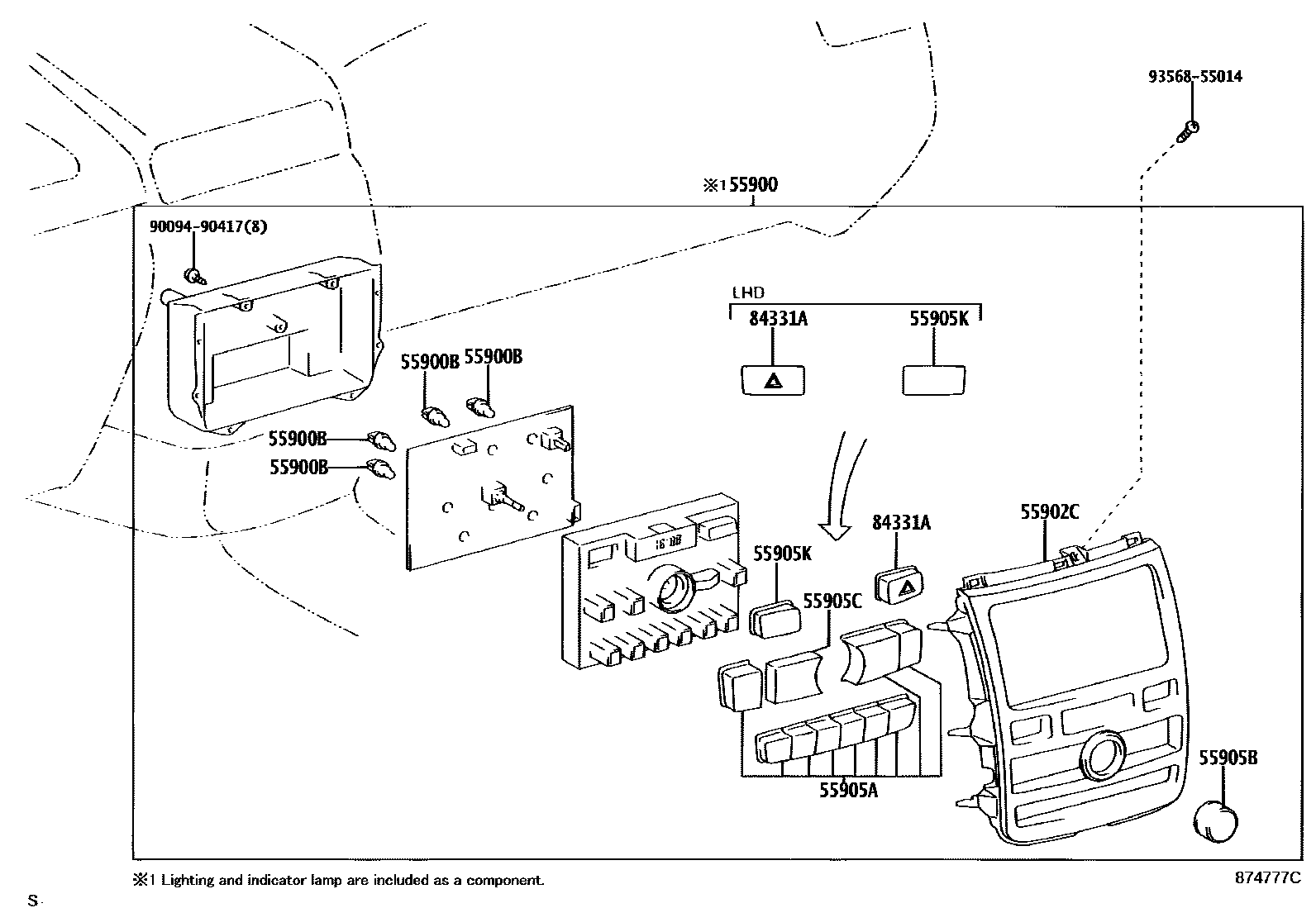

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL PANEL, MANUAL A0002 1FRONT CONTROL PANEL, AUTO A/C0003 1REAR CONTROL PANEL 0004 1FRONT AIR DUCT 0005 1REAR HEATER AIR DUCT 0006 1REAR COOLER AIR DUCT 0007 1SENSOR 0008 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-44240iACM20,CLM20..RHD..EUR200105-200310

main55900-44250iACM20..ARL200110-200310

main55900-44260iACM20,CLM20..LHD200105-200310

main55900-44270iACM20,CLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER)

main55900-44280iACM20,CLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main55900-44470iCLM20..RHD200310-200507

main55900-44480iACM20..RHD..EUR200310-200507

main55900-44490iCLM20..LHD200310-200507

W(AUTO AIR CONDITIONER)

main55900-44500iCLM20..LHD200310-200507

W(AUTO AIR CONDITIONER & REAR COOLER)

main55900-44510iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER)

main55900-44520iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER & PTC HEATER)

main55900-44530iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER & REAR COOLER)

main55900-44540iACM20..LHD200310-200507

W(AUTO AIR CONDITIONER & REAR COOLER & PTC HEATER)

main55900-44550iACM20..GEN200310

main55900-44560iACM21200310

55900BBULB, AIR CONDITIONER CONTROL

main90010-03034iACM20,CLM20200105-200310

14V 1.4W,DIAL

main90010-03050iACM20..GEN200310

14V 1.12W,LCD

main90010-03051iACM20,CLM20200105-200310

14V 1.4W,LCD

main90010-03052×6iACM20,CLM20..LHD; ACM20,CLM20..RHD..(EUR,GEN)200105-200310

14V 1.12W; 14V 1.12W,KNOB; 14V 1.12W,W(MANUAL AIR CONDITIONER & REAR COOLER),KNOB

main90010-03053iACM20,CLM20200105-200310

14V 1.12W,HAZARD

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-44150iACM20,CLM20200105-200310

main55902-44190iACM20,CLM20..EUR200310-200507

W(AUTO AIR CONDITIONER)

main55902-44200iACM2#..ARL,GEN200310

55905AKNOB, HEATER CONTROL

main55905-44160iACM20,CLM20200105-200310

main55905-44260iACM2#,CLM20200310

W(AUTO AIR CONDITIONER)

55905BKNOB, HEATER CONTROL, NO.2

main55905-44150iACM20,CLM20200105-200310

55905CKNOB, HEATER CONTROL, NO.3

main55905-44170iACM20,CLM20200105-200310

W(MANUAL AIR CONDITIONER)

main55905-44220iACM20,CLM20..EUR200105-200310

55905KKNOB, HEATER CONTROL, NO.4

main55905-44180iACM20,CLM20..LHD200310-200507

W(REAR COOLER)

main55905-44190iACM20,CLM20..RHD200105-200310

main55905-44200iACM20,CLM20..LHD200105-200310

84331AKNOB, HAZARD WARNING SIGNAL SWITCH

main84331-44030iACM20,CLM20..RHD200105-200310

main84331-44040iACM20,CLM20..LHD200310-200507

9009490417

main90094-90417

9356855014

main93568-55014

10 parts on this diagram · 8 diagrams in section
