WINDSHIELD WIPER

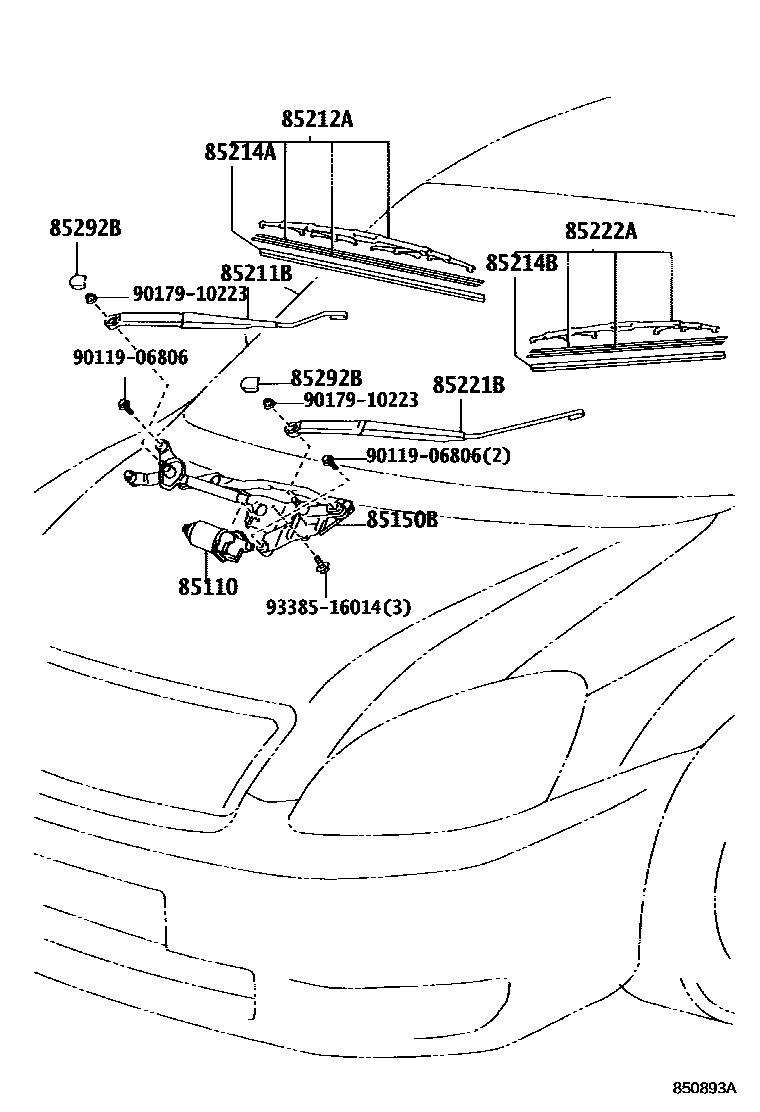

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44080i200310

main85110-44090i200105-200310

main85110-44100i200105-200310

main85110-44110i200110-200310

85150BLINK ASSY, WIPER

main85150-44080i200105-200310

main85150-44090i200310-200507

main85150-44100i200110-200310

85211BARM, FRONT WIPER, RH

main85211-44060i200310

main85211-44070i200310-200507

main85211-44080i200105-200310

main85211-44090i200310

85212ABLADE, FR WIPER, RH

main85212-13030i200412-200507

main85212-44070i200105-200310

main85212-44080i200310-200412

main85212-44100i200310-200801

main85212-68010i200802

85214ARUBBER, WIPER, RH

main85214-44130i200310-200412

main85214-44140i200310

main85214-50060i200412-200507

main85214-50130i200105-200310

85214BRUBBER, WIPER, LH

main85214-24050i200412-200802

main85214-24051i200802

main85214-44140i200310-200507

(J)

main85214-50060i200412-200610

main85214-50061i200610

main85214-50130i200310-200412

main85214-53050i200310-200412

85221BARM, FRONT WIPER, LH

main85221-44050i200310

main85221-44060i200105-200310

main85221-44070i200110-200310

85222ABLADE, FR WIPER, LH

main85222-13030i200412-200507

main85222-13041i200412-200801

main85222-43020i200207-200310

main85222-43021i200412-200801

main85222-44060i200105-200310

main85222-44070i200105-200310

main85222-48121i200802

main85222-53030i200110-200207

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010i200310

9011906806

main90119-06806

9017910223

main90179-10223

9338516014

main93385-16014

12 parts on this diagram · 2 diagrams in section
