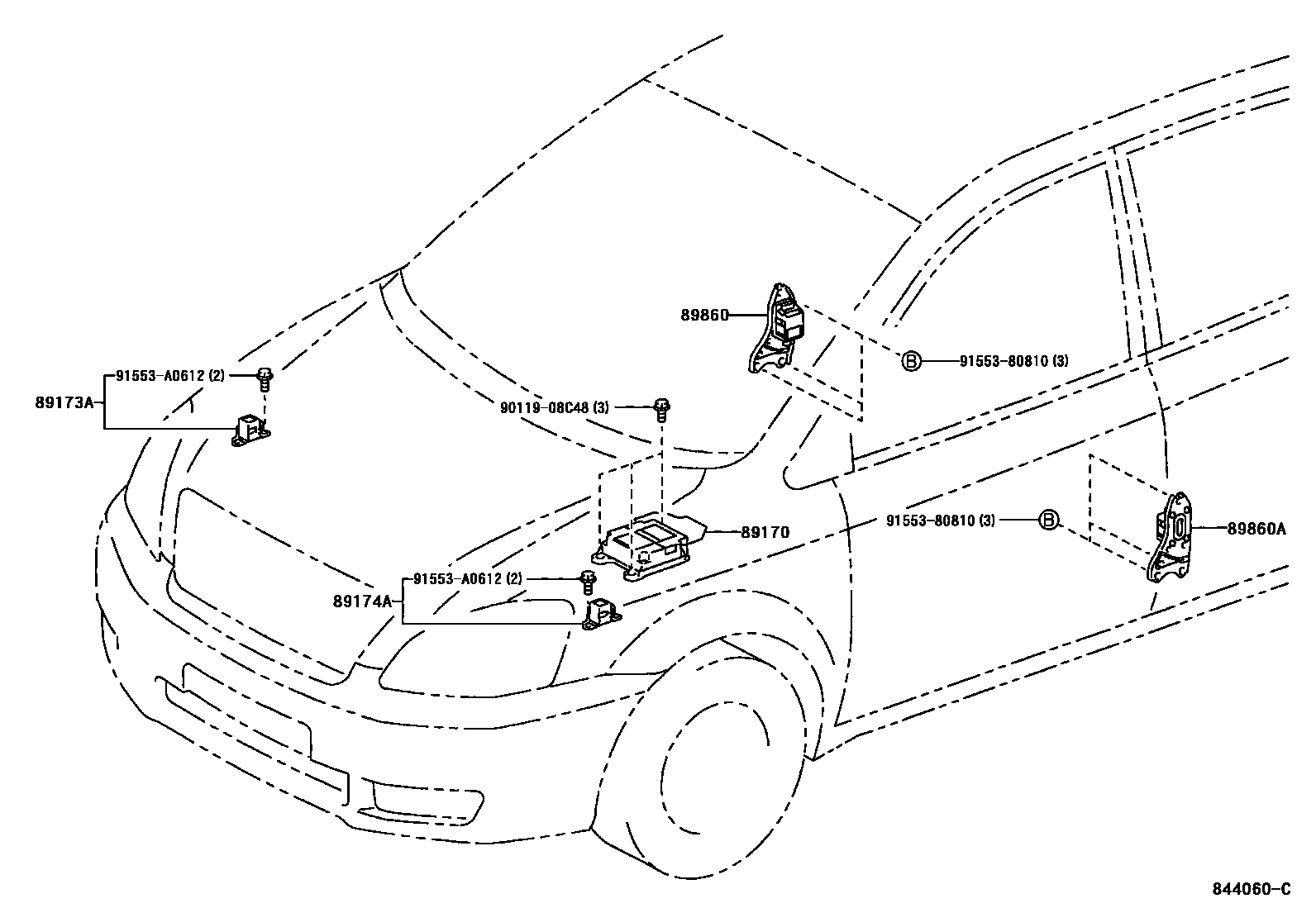

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-44040iACM20,CLM20200105-200310

main89170-44050iACM20,CLM20200105-200310

W(SRS SIDE AIR BAG)

main89170-44060iACM2#,CLM20200310

89173ASENSOR, AIRBAG, FRONT RH

main89173-49285iACM20,CLM20200105-200310

89174ASENSOR, AIRBAG, FRONT LH

main89173-49285iACM20,CLM20200105-200310

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-44010iACM20,CLM20200105-200310

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-44010iACM20,CLM20200105-200310

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0612

main91553-A0612

8 parts on this diagram · 1 diagram in section
