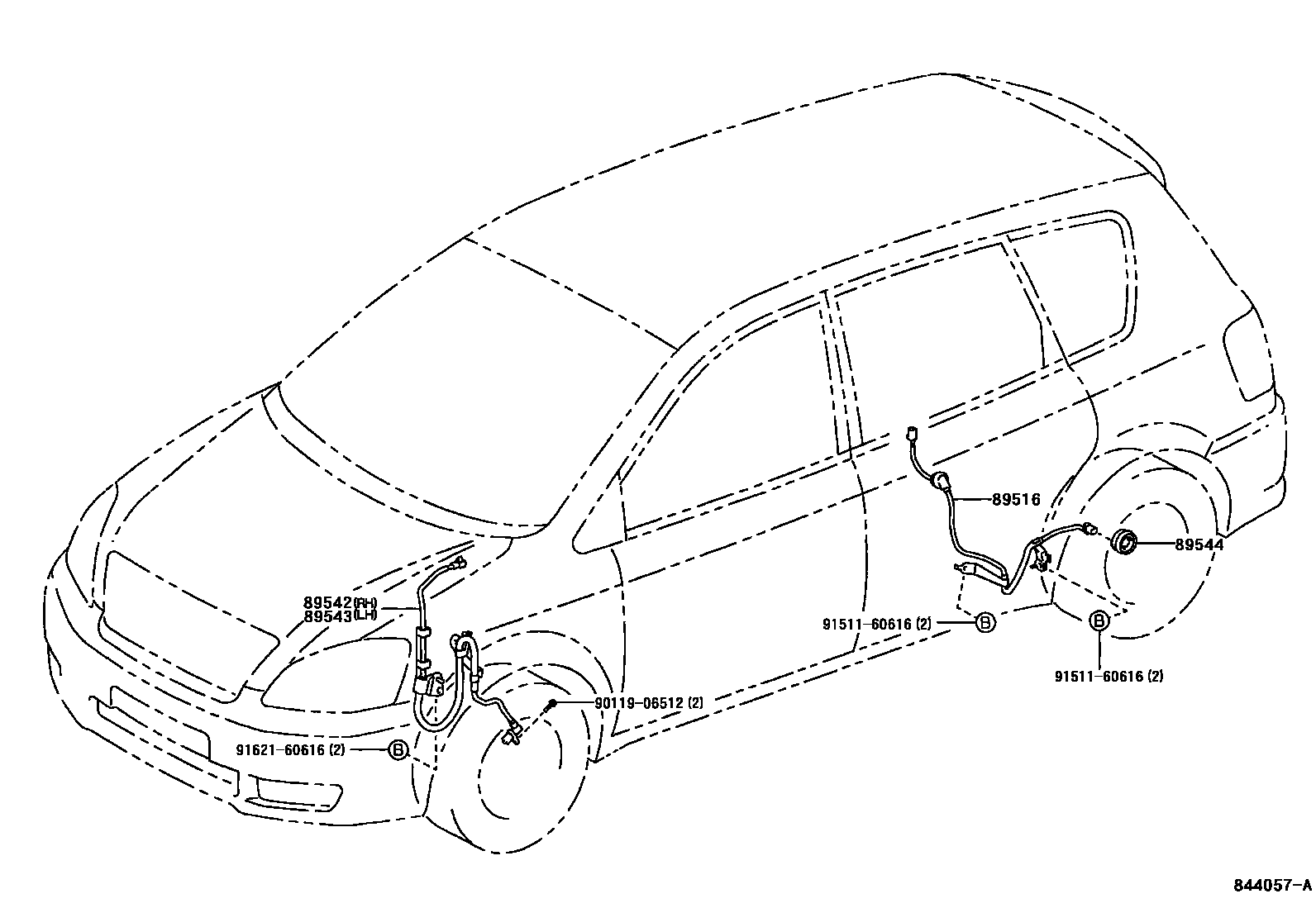

ABS & VSC

0001 1 0002 1 0003 1

89516WIRE, SKID CONTROL SENSOR

main89516-44060iACM20,CLM20200105-200310

RH

main89516-44070iACM2#,CLM20200310

LH

89542SENSOR, SPEED, FRONT RH

main89542-44030iACM2#,CLM20200310

89543SENSOR, SPEED, FRONT LH

main89543-44030iACM2#,CLM20200310

89544SENSOR, SKID CONTROL

main89544-20010×2iACM2#,CLM20200310-200912

main89544-47010×2iACM20,CLM20200105-200310

9011906512

main90119-06512

9151160616

main91511-60616

9162160616

main91621-60616

7 parts on this diagram · 3 diagrams in section
