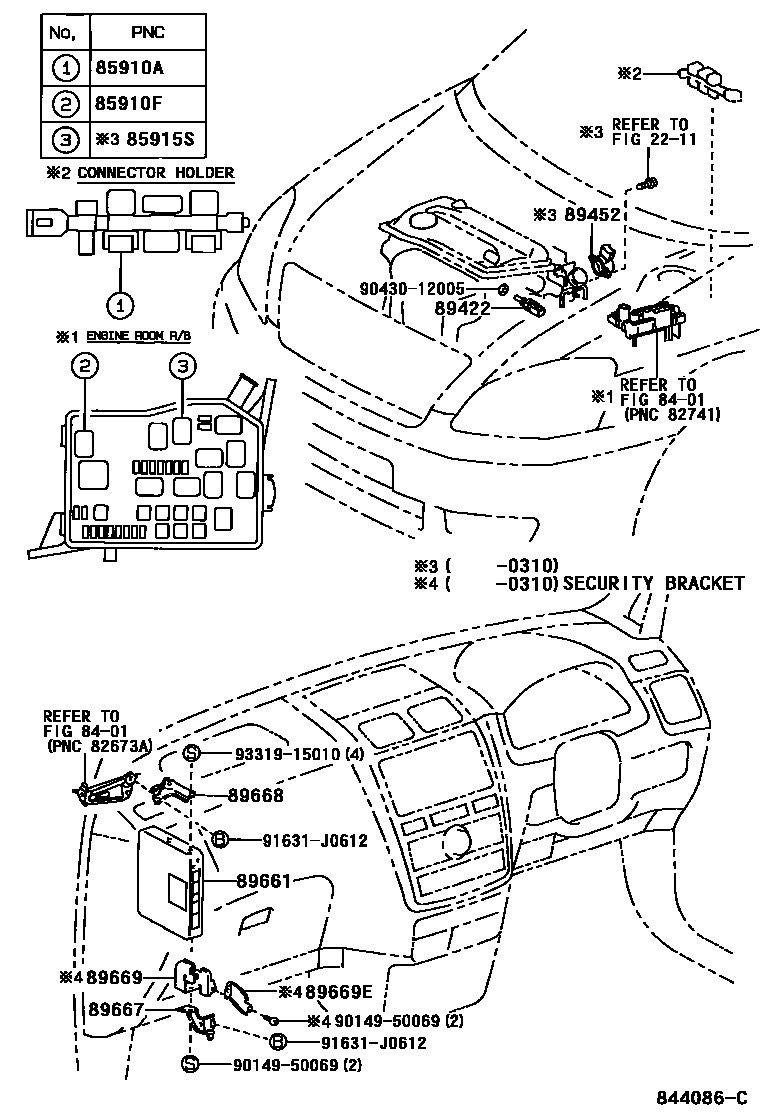

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02024iACM20200105-200310

85910FRELAY, COMPUTER (FOR EFI)

main90987-02024iACM20200105-200310

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02024iACM20200105-200310

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACM2#200310

main89422-35010iACM20200105-200310

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iACM20200105-200310

89661COMPUTER, ENGINE CONTROL

main89661-44250iACM20..RHD..07S..ATM..(EUR,GEN)200105-200208

PART NUMBER LABEL=89661-44250

main89661-44260iACM20..MTM..EUR200105-200204

main89661-44261iACM20..MTM..EUR200204-200210

PART NUMBER LABEL=89661-44261

main89661-44262iACM20..MTM..EUR200210-200310

PART NUMBER LABEL=89661-44262

main89661-44270iACM20..ATM..(EUR,GEN)200105-200204

PART NUMBER LABEL=89661-44270

main89661-44271iACM20..ATM..(EUR,GEN)200204-200210

PART NUMBER LABEL=89661-44271

main89661-44272iACM20..ATM..(EUR,GEN)200210-200310

PART NUMBER LABEL=89661-44272

main89661-44280iACM20..MTM..ARL200110-200208

main89661-44290iACM20..RHD..07S..ATM..(ARL,EUR)200208-200310

PART NUMBER LABEL=89661-44290

main89661-44390iACM21200310-200508

main89661-44400iACM20..RHD..MTM200310-200409

main89661-44401iACM20..LHD..MTM200406-200407

main89661-44402iACM20..RHD..MTM200412-200507

main89661-44410iACM20..LHD..ATM200310-200405

main89661-44411iACM20..LHD..ATM200406-200407

main89661-44412iACM20..LHD..ATM200407-200507

main89661-44420iACM20..RHD..ATM200310-200405

PART NUMBER LABEL=89661-44420

main89661-44421iACM20..RHD..ATM200406-200407

PART NUMBER LABEL=89661-44421

main89661-44422iACM20..RHD..ATM..EUR200408-200507

PART NUMBER LABEL=89661-44422

main89661-44470iACM20..RHD..ATM200310-200405

PART NUMBER LABEL=89661-44470

main89661-44471iACM20..RHD..ATM200406-200407

PART NUMBER LABEL=89661-44471

main89661-44472iACM20..RHD..ATM200407

PART NUMBER LABEL=89661-44472

main89661-44540iACM20..GEN200408

HONG KONG SPEC

main89661-44570iACM21200508

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-44060iACM21200310-200507

main89667-44070iACM20..LHD200310-200507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-44070iACM20..RHD200310

main89668-44080iACM20..LHD200310-200507

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28070iACM20..RHD..(EUR,GEN)200105-200310

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89669-28080iACM20..RHD..(EUR,GEN)200105-200310

9014950069

main90149-50069

9043012005

main90430-12005

91631J0612

main91631-J0612

9331915010

main93319-15010
