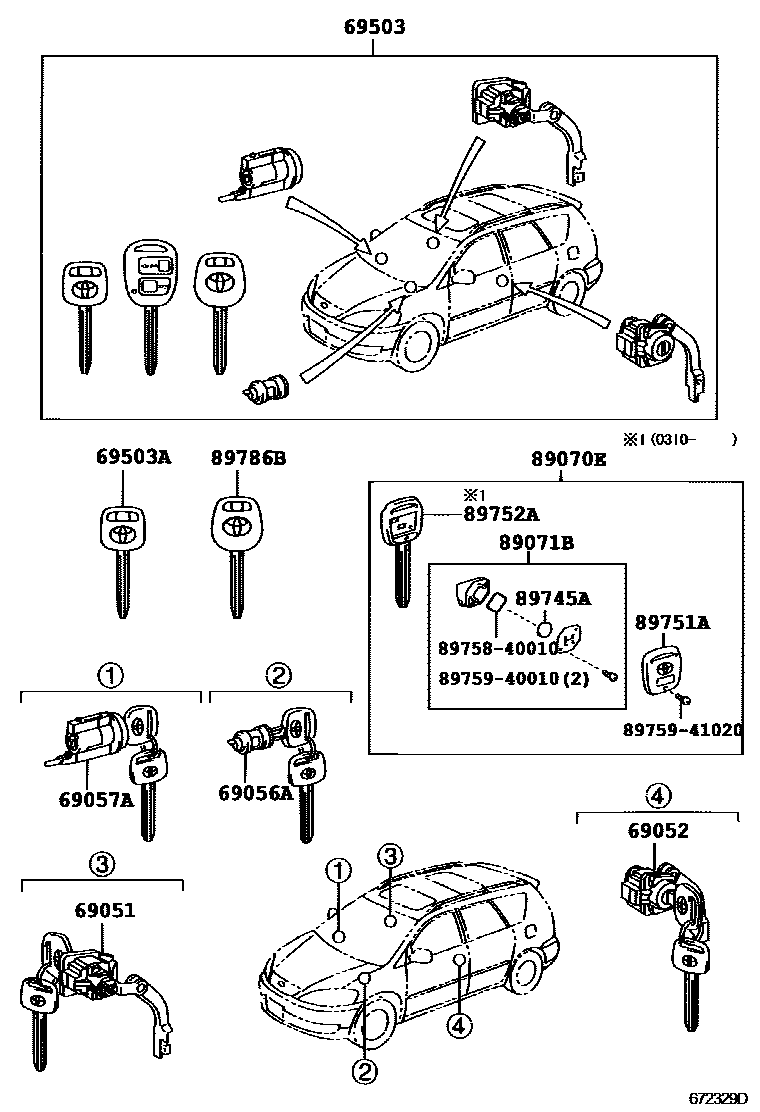

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-44060iACM20..ARL,GEN200105-200310

main69051-44070iACM20,CLM20..LHD200105-200310

main69051-44080iACM20,CLM20..RHD..EUR200105-200310

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-44060iACM20..ARL,GEN;ACM20,CLM20..LHD200105-200310

main69052-44070iACM20,CLM20..RHD..EUR200310-200507

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-44010iACM20,CLM20..RHD..EUR200310-200507

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-44050iACM2#,CLM20..ARL,EUR200310-200511

main69057-44051iACM21200512

main69057-44090iACM20..GEN200105-200310

69503CYLINDER SET, LOCK

main69005-44100iACM20,CLM20..LHD200105-200310

main69005-44120iACM20..ARL200110-200310

main69005-44130iACM20..GEN200105-200310

main69005-44150iACM20,CLM20..RHD..EUR200105-200310

main69005-44310iACM20,CLM20..RHD..EUR200310-200507

main69005-44320iACM21;ACM20,CLM20..LHD200310-200511

main69005-44321iACM21200512

main69005-44330iACM20..GEN200310-200511

main69005-44331iACM20200512

69503AKEY, BLANK

main90999-00199×2iACM20..GEN200105-200310

MASTER KEY,W(*68)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-28470iACM2#,CLM20..ARL,EUR200310-200511

main89070-28471iACM21200512

main89070-44080iACM20..ARL;ACM20..RHD..07S..ATM..EUR200105-200112

W(ANTI-THEFT DEVICE:IMMOBILIZER & ALARM)

main89070-44090iACM20..EUR200308-200310

W(ANTI-THEFT DEVICE:IMMOBILIZER)

main89070-44100iACM20..GEN200310-200511

SINGAPORE SPEC

main89070-44101iACM20200512-200605

SINGAPORE SPEC

main89070-44102iACM20200606

SINGAPORE SPEC

main89070-44110iACM20..GEN200310-200604

HONG KONG SPEC

main89070-44111iACM20200605

HONG KONG SPEC

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-28040×2iACM20..GEN200105-200310

HONG KONG SPEC

main89071-33100×2iACM20..GEN200105-200310

SINGAPORE SPEC

main89071-42050iACM2#,CLM20..ARL,EUR200310

main89071-60030×2iACM20..ARL;ACM20..RHD..07S..ATM..EUR200105-200112

main89071-60081×2iACM20,CLM20..EUR200105-200308

W(ANTI-THEFT DEVICE:IMMOBILIZER)

89745ABATTERY, TRANSMITTER

main89745-40010×2iACM20,CLM20200105-200310

89751ACOVER, TRANSMITTER HOUSING

main89751-13010×2iACM20,CLM20..EUR200105-200310

EUROPEAN POSSESSION SPEC

main89751-13011×2iACM21200512

main89751-44020×2iACM20..RHD..07S..(ARL,EUR)200112-200310

main89751-44030×2iACM20..GEN200105-200310

SINGAPORE SPEC

main89751-44031×2iACM20200512-200605

SINGAPORE SPEC

main89751-44032×2iACM20200606

SINGAPORE SPEC

main89751-44040×2iACM20..GEN200310-200605

HONG KONG SPEC

main89751-44041×2iACM20200605

HONG KONG SPEC

89752ACASE, TRANSMITTER HOUSING

main89752-13020iACM2#,CLM20200310-200912

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iACM20,CLM20..ARL,EUR200105-200308

main89786-60170iACM2#,CLM20..ARL,EUR200310

BLANK KEY

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

15 parts on this diagram · 2 diagrams in section
