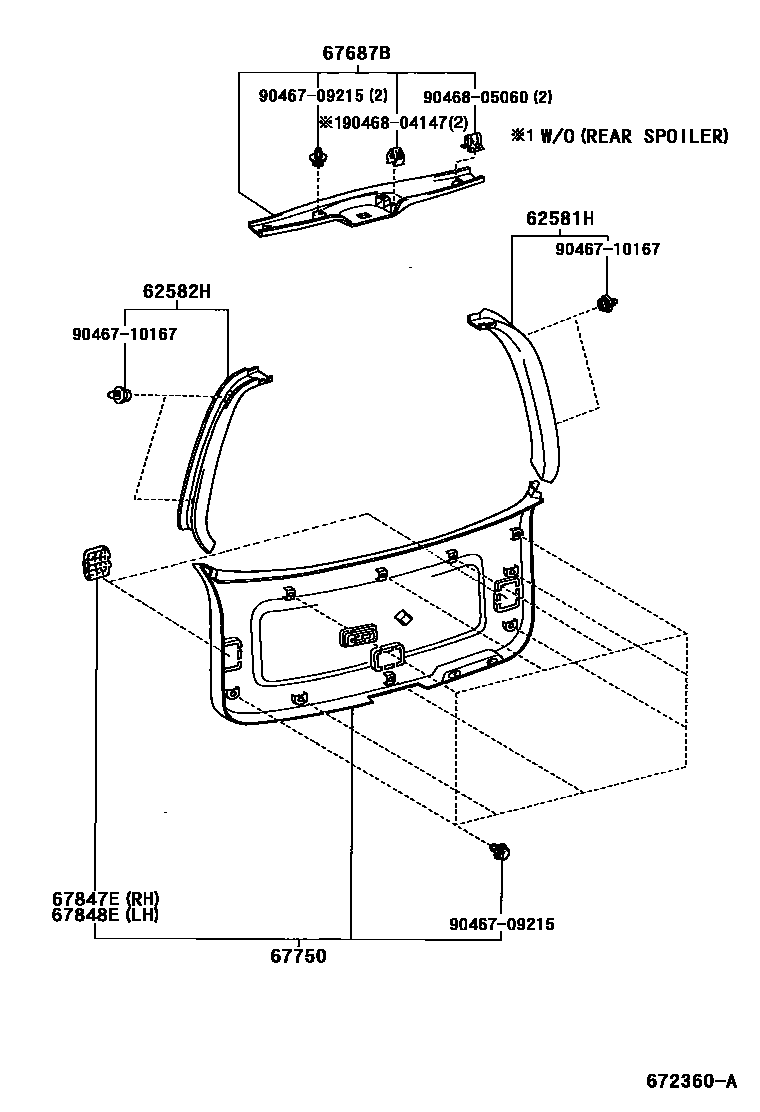

Toyota PICNIC/AVENSIS VERSO511 — BACK DOOR PANEL & GLASS
62581HGARNISH, REAR WINDOW SIDE, RH
62582HGARNISH, REAR WINDOW SIDE, LH
67687BGARNISH, BACK WINDOW
67847ECOVER, BACK DOOR SERVICE HOLE, RH
67848ECOVER, BACK DOOR SERVICE HOLE, LH
9046709215
9046710167
9046804147
9046805060
10 parts on this diagram · 3 diagrams in section
BACK DOOR PANEL & GLASS for Toyota PICNIC/AVENSIS VERSO511
This section contains 26 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota PICNIC/AVENSIS VERSO511. Key components include: GARNISH, REAR WINDOW SIDE, RH, GARNISH, REAR WINDOW SIDE, LH, SPACER, BACK DOOR GLASS, NO.1, SPACER, BACK WINDOW GLASS, NO.2, CLIP, BACK WINDOW GLASS, RH.
