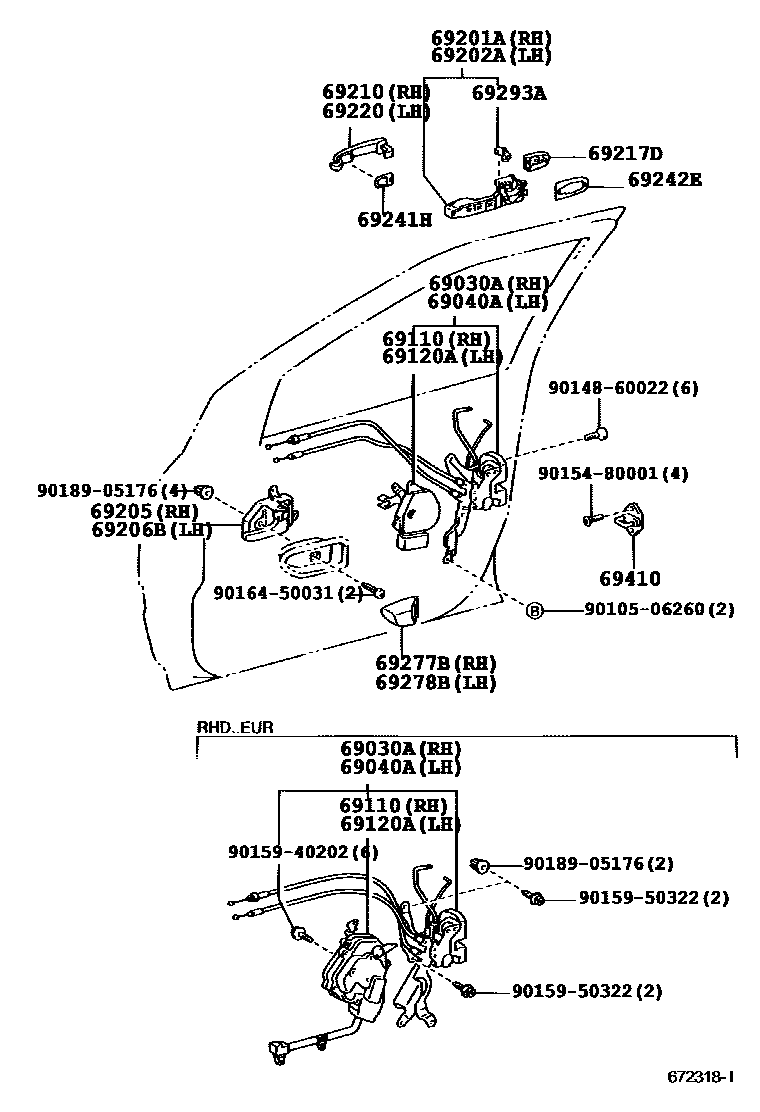

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
*CR,BLACK,TRIM0#
*CR,BLACK,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
*CR,BLACK,TRIM1#
*CR,BLACK,TRIM0#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
W(CHROME PLATED INSIDE HANDLE),BLACK,TRIM1#
sub69297-30030
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
WHITE
YELLOW
LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
9010506260
main90105-06260
9014860022
main90148-60022
9015480001
main90154-80001
9015940202
main90159-40202
9015950322
main90159-50322
9016450031
main90164-50031
9018905176
main90189-05176
24 parts on this diagram · 1 diagram in section
