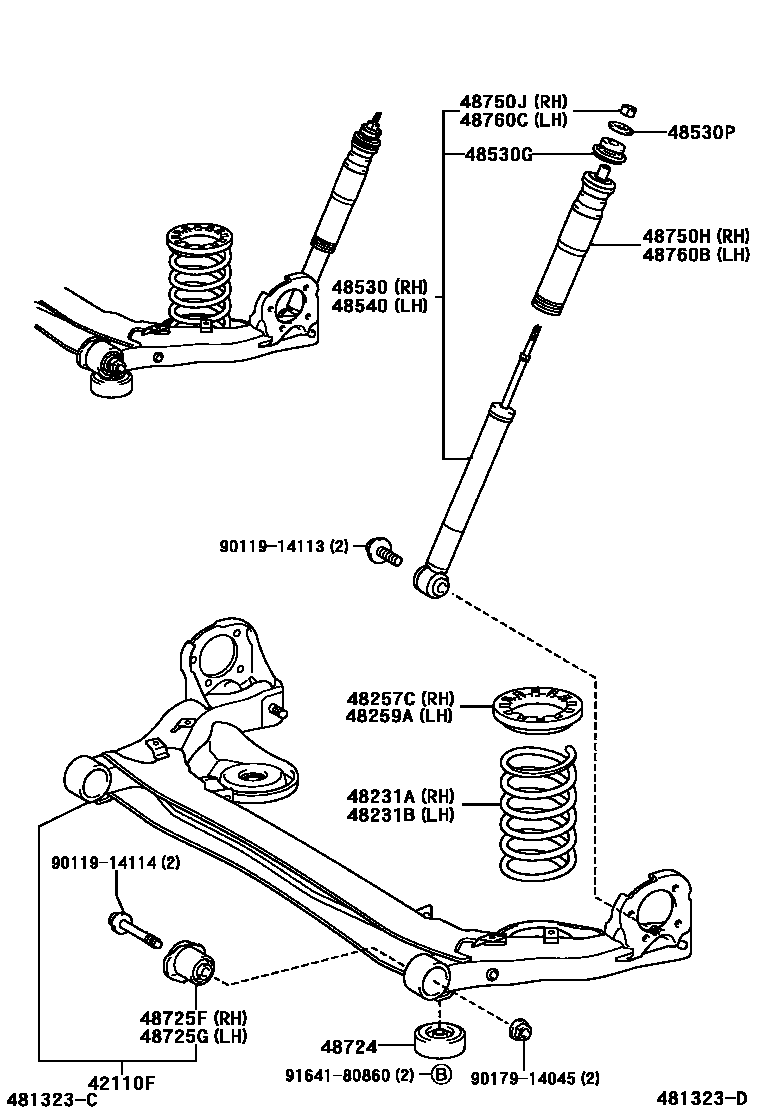

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
W/O(NO.2 REAR SEAT)
W/O(NO.1 OR NO.2 REAR SEAT)
48231BSPRING, COIL, REAR LH
W/O(NO.1 OR NO.2 REAR SEAT)
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-44080
MARK 48531-44120
MARK 48531-44120
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-44080
MARK 48531-44120
MARK 48531-44120
48724DAMPER, LWR CONTROL ARM DYNAMIC
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
9011914113
main90119-14113
9011914114
main90119-14114
9017914045
main90179-14045
9164180860
main91641-80860
20 parts on this diagram · 2 diagrams in section
